ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Wheels & Tires Group (7010wtg) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

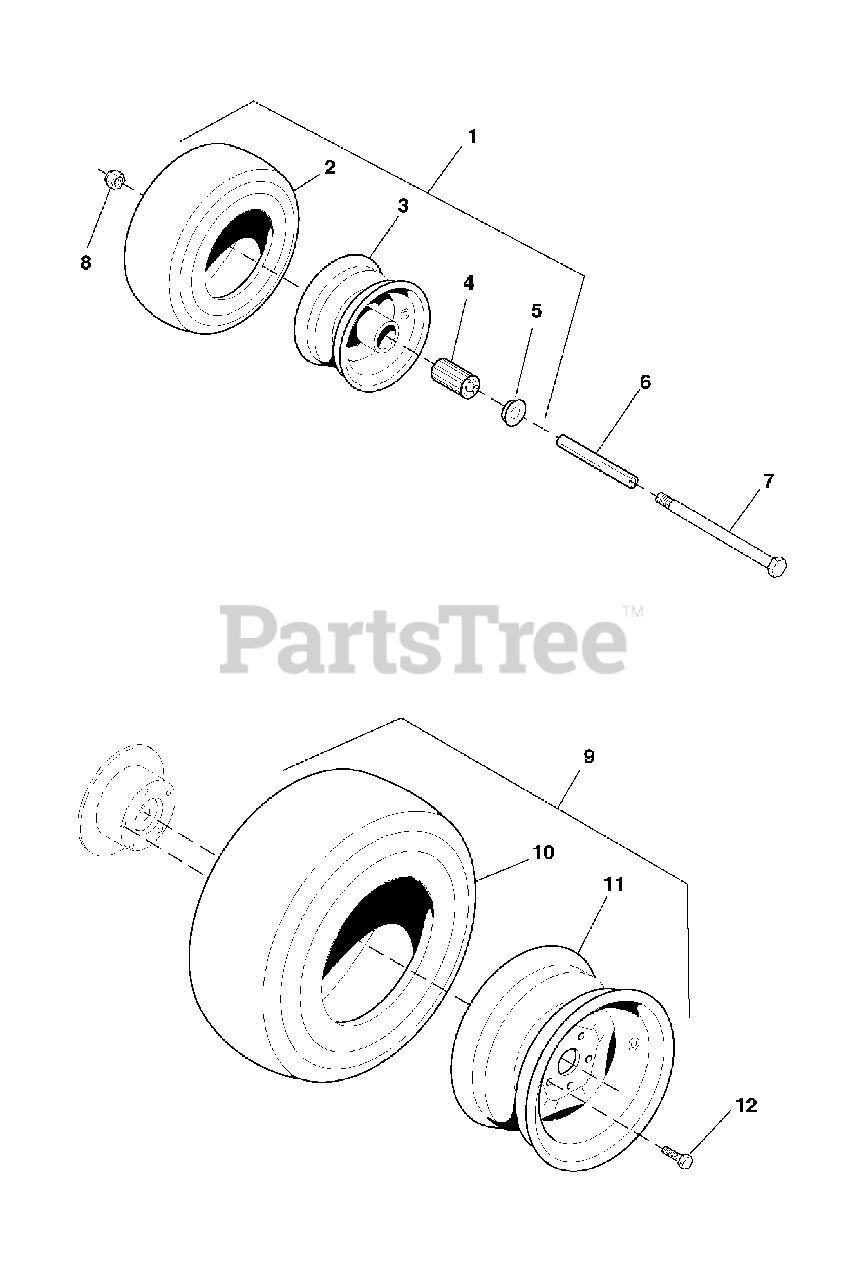

Wheels & Tires Group (7010wtg) Parts Diagram

  • Title

1

Simplicity 5022631SSM

WHEEL & TIRE ASSEMBLY, Front, 13 x 5.0 x 6, Complete (Includes Ref 2 thru 5)

$168.99

$

Usually ships in 2-12 days

0

2

Simplicity 5022029X1SM

TIRE, Front, 13 x 5.0 x 6

$

$

Not available

3

Simplicity 50220292

WHEEL ASSEMBLY, Front, for 13 x 5.0 x 6 Tires, Complete (Includes Ref 4 & 5)

$

$

Not available

4

Simplicity 5021042SM

BEARING, Roller (2 per tire)

$14.99

$

In Stock, only 2 left!

0

5

Simplicity 5021043SM

RETAINER, Bearing (2 per tire)

$7.49

$

In Stock, Qty 6

0

6

Simplicity 5022100SM

AXLE, Front Caster

$15.99

$

Usually ships in 2-12 days

0

7

Simplicity 502501760

CAPSCREW, Hex Hd, 1-2/13 x 7-1/2

$

$

Not available

8

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1-2/13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 5022396SM

WHEEL & TIRE ASSEMBLY, Rear, 23 x 10.5 x 12, Complete (Includes Ref 10 & 11)

$319.99

$

Usually ships in 2-12 days

0

10

Simplicity 50223961

TIRE, Rear, 23 x 10.5 x 12

$

$

Not available

11

Simplicity 50223962

WHEEL ASSEMBLY, Rear, for 23 x 10.5 x 12 Tires

$

$

Not available

12

Simplicity 5022215SM

WHEEL LUG, 1/2 x 1-5/8

$9.99

$

Usually ships in 2-12 days

0
