ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Parking Brake Group - Lower (7010pbgl) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

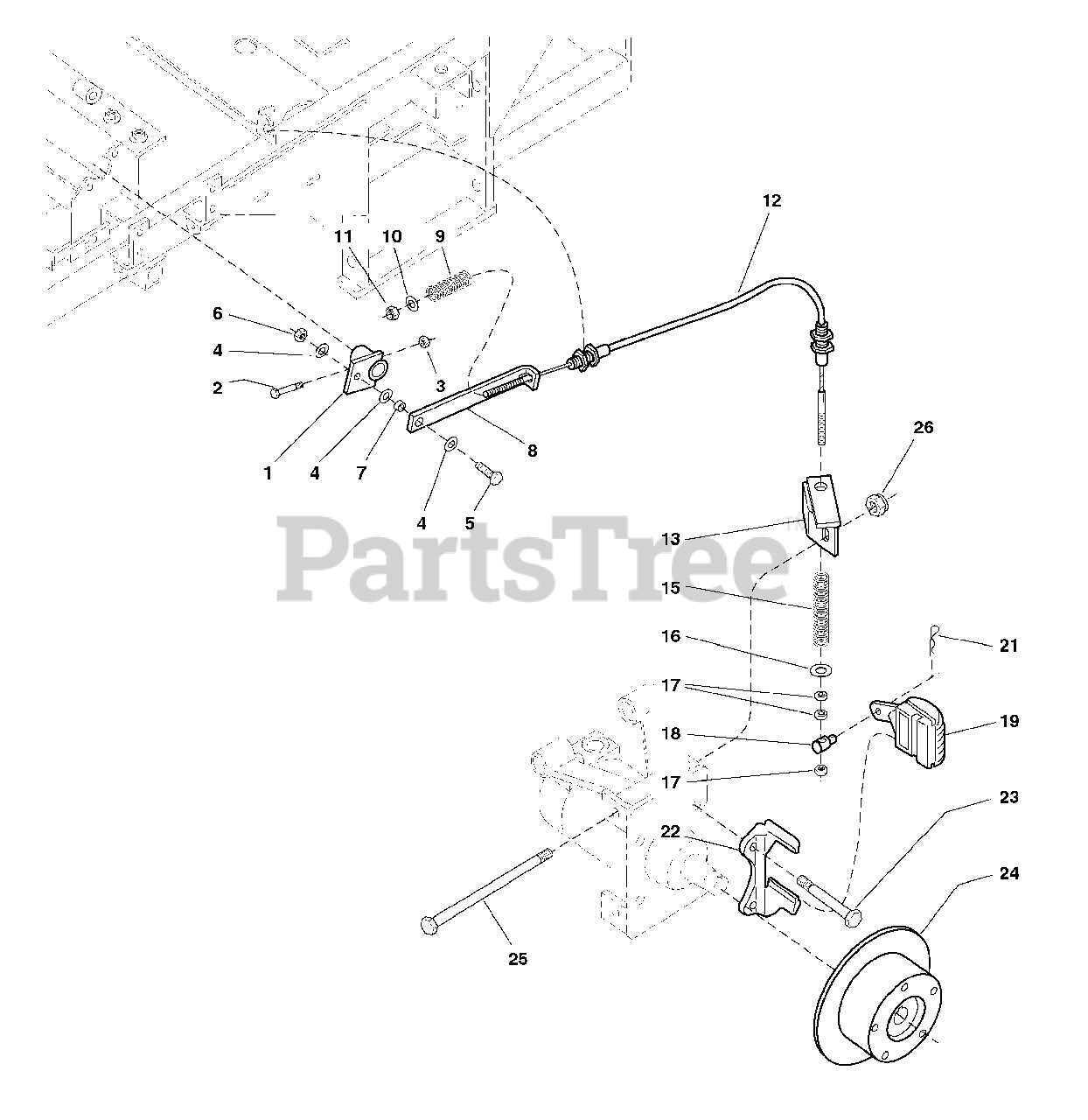

Parking Brake Group - Lower (7010pbgl) Parts Diagram

  • Title

1

Simplicity 1845618

BRAKE LINKAGE PIVOT (LH only)
(Superseded to 5045618E)

$

$

Not available

2

Simplicity 5025010X14SM

CAPSCREW, Hex Hd, 1/4-20 x 1-3/4

$3.99

$

In Stock, only 1 left!

0

3

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, Qty 5

0

4

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 8

0

5

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

6

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 5041930SM

SPACER, Pivot

$4.99

$

Usually ships in 2-12 days

0

8

Simplicity 1845633

LINK, Brake Lock
(Superseded to 5045633E)

$

$

Not available

9

Simplicity 5022361SM

SPRING, Compression

$9.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 5025045SM

NUT, Hex, Nylon Lock, 5/16-18

$3.49

$

In Stock, Qty 11

0

12

Simplicity 5022209SM

CABLE, Brake

$101.99

$

Usually ships in 2-12 days

0

13

Simplicity 1845604

BRACKET, Cable Mount-LH
(Superseded to 5045604E)

$

$

Not available

14

Simplicity 1845605

BRACKET, Cable Mount-RH (not shown)
(Superseded to 5045605E)

$

$

Not available

15

Simplicity 5021494SM

SPRING, Compression

$13.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025164SM

WASHER, Fender, 5/16

$3.99

$

In Stock, only 1 left!

0

17

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 5041482

ADJUSTER, Brake Linkage

$28.99

$

Usually ships in 2-12 days

0

19

Simplicity 5022342SM

BRAKE CALIPER, LH

$208.99

$

Usually ships in 2-12 days

0

20

Simplicity 5022341SM

BRAKE CALIPER, RH (Not Shown)

$208.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025211SM

HAIRPIN CLIP

$3.99

$

In Stock, only 1 left!

0

22

Simplicity 5022340SM

MOUNT, Brake Caliper

$153.99

$

Usually ships in 2-12 days

0

23

Simplicity 502501824

CAPSCREW, Hex Hd, 1/2-20 x 3

$

$

Not available

24

Simplicity 5022339SM

HUB, 8" Brake Disc

$311.99

$

Usually ships in 2-12 days

0

25

Simplicity 502501760

CAPSCREW, Hex Hd, 1/2-13 x 7-1/2

$

$

Not available

26

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0
