ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Motion Control Group - Upper (7010mcgu) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

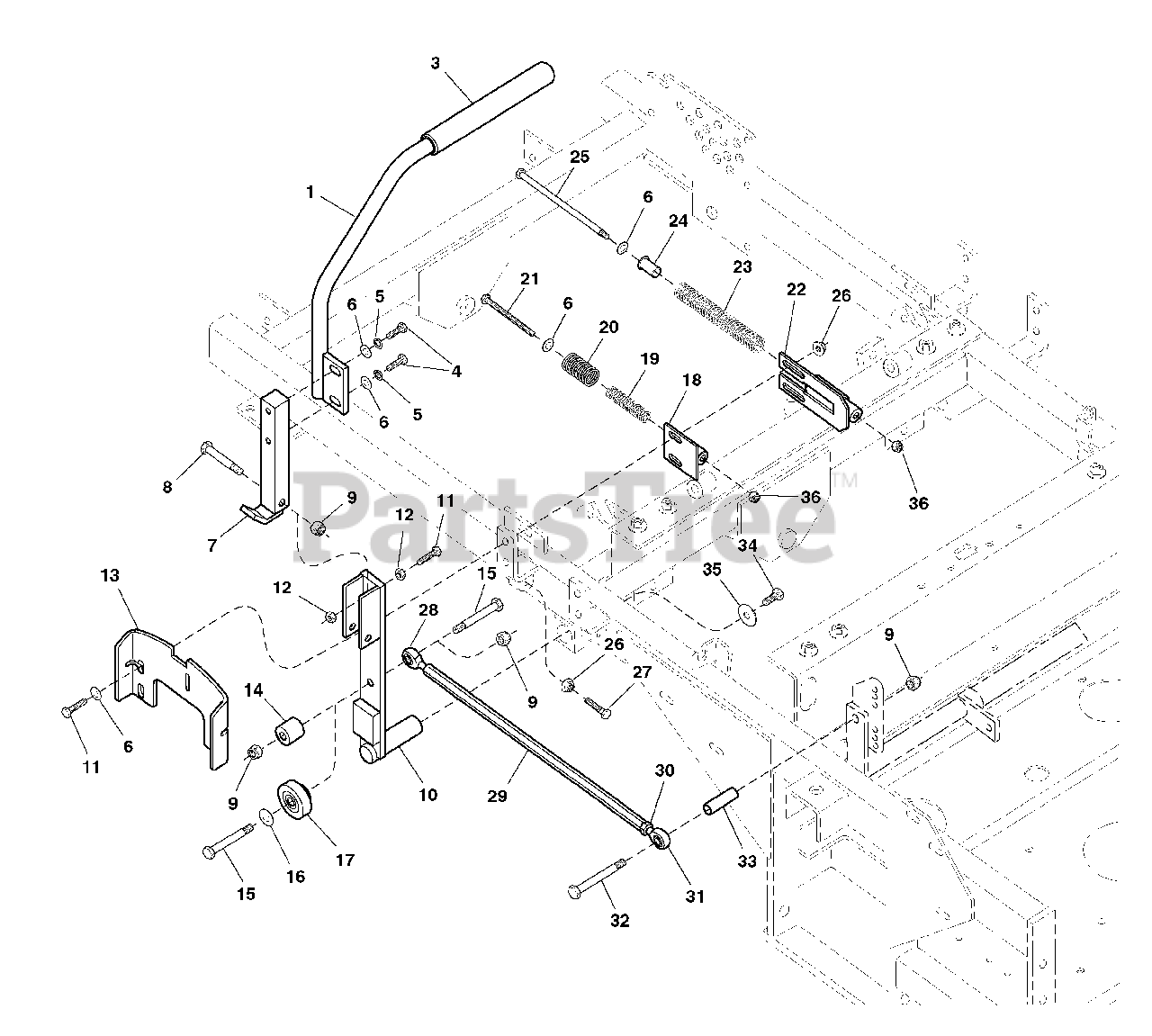

Motion Control Group - Upper (7010mcgu) Parts Diagram

  • Title

1

Simplicity 1845912

MOTION CONTROL LEVER-LH
(Superseded to 5045912E)

$

$

Not available

2

Simplicity 1845913

MOTION CONTROL LEVER-RH (not shown)
(Superseded to 5045913E)

$

$

Not available

3

Simplicity 5022068SM

FOAM GRIP

$11.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, only 4 left!

0

5

Simplicity 5025170SM

WASHER, Lock, 5/16

$3.99

$

Usually ships in 2-12 days

0

6

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

7

Simplicity 1845901

BASE, Control Lever

$

$

Not available

8

Simplicity 5025013X16SM

CAPSCREW, Hex Hd, 3/8-16 x 2

$4.49

$

In Stock, Qty 6

0

9

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1845626

MOTION CONTROL ARM
(Superseded to 5045626E)

$

$

Not available

11

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

12

Simplicity 5025032SM

NUT, Hex, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 1845902

NEUTRAL LOCK PLATE
(Superseded to 5045902E)

$

$

Not available

14

Simplicity 5045942

SPACER (SN: 101-600 only)

$27.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025013X18SM

CAPSCREW, Hex Hd, 3/8-16 x 2-1/4

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

17

Simplicity 5045948SM

BEARING & INSERT ASSEMBLY, Complete (SN: 601 & up)

$

$

Not available

*

Simplicity 1705897SM

BEARING, BALL 11/16X1-9/16X15/32

$8.49

$

In Stock, Qty 20+

0

*

Simplicity 5021879

Insert
(Superseded to 5021879FS)

$16.99

$

Usually ships in 2-12 days

0

18

Simplicity 1845881

REVERSE SPRING MOUNT (SN: 101-300 only)

$

$

Not available

19

Simplicity 5022398

SPRING, Compression (SN: 101-300 only)

$3.49

$

Usually ships in 2-12 days

0

20

Simplicity 5021102SM

SPRING, Compression (SN: 101-300 only)

$7.49

$

Usually ships in 2-12 days

0

21

Simplicity 502505528

CAPSCREW, Hex Hd, TFL, 5/16-18 x 3-1/2 (SN: 101-300 only)

$

$

Not available

22

Simplicity 1845939

REVERSE SPRING MOUNT
(Superseded to 5045939E)

$

$

Not available

23

Simplicity 5022421SM

SPRING, Compression

$

$

Not available

24

Simplicity 5022290SM

BUSHING, Flange

$

$

Not available

25

Simplicity 502501156

CAPSCREW, Hex Hd, 5/16-18 x 7

$

$

Not available

26

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 5022047SM

BALL JOINT, 3/8, LH

$

$

Not available

29

Simplicity 5044958SM

HEX ROD, Long

$

$

Not available

30

Simplicity 5025035SM

NUT, Hex, 3/8-24

$3.49

$

Usually ships in 2-12 days

0

31

Simplicity 5021124SM

BALL JOINT, 3/8

$37.99

$

Usually ships in 2-12 days

0

32

Simplicity 5025013X24SM

CAPSCREW, Hex Hd, 3/8-16 x 3

$3.99

$

In Stock, only 1 left!

0

33

Simplicity 5044992SM

SPACER

$5.99

$

In Stock, only 2 left!

0

34

Simplicity 50251996

CAPSCREW, Hex Hd, Loctite Patch, 3/8-16 x 3/4

$

$

Not available

35

Simplicity 5025165SM

WASHER, Fender, 3/8

$3.99

$

In Stock, only 2 left!

0

36

Simplicity 5025045SM

NUT, Hex, Nylon Lock, 5/16-18

$3.49

$

In Stock, Qty 11

0
