ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Lift Group (7010dlg) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

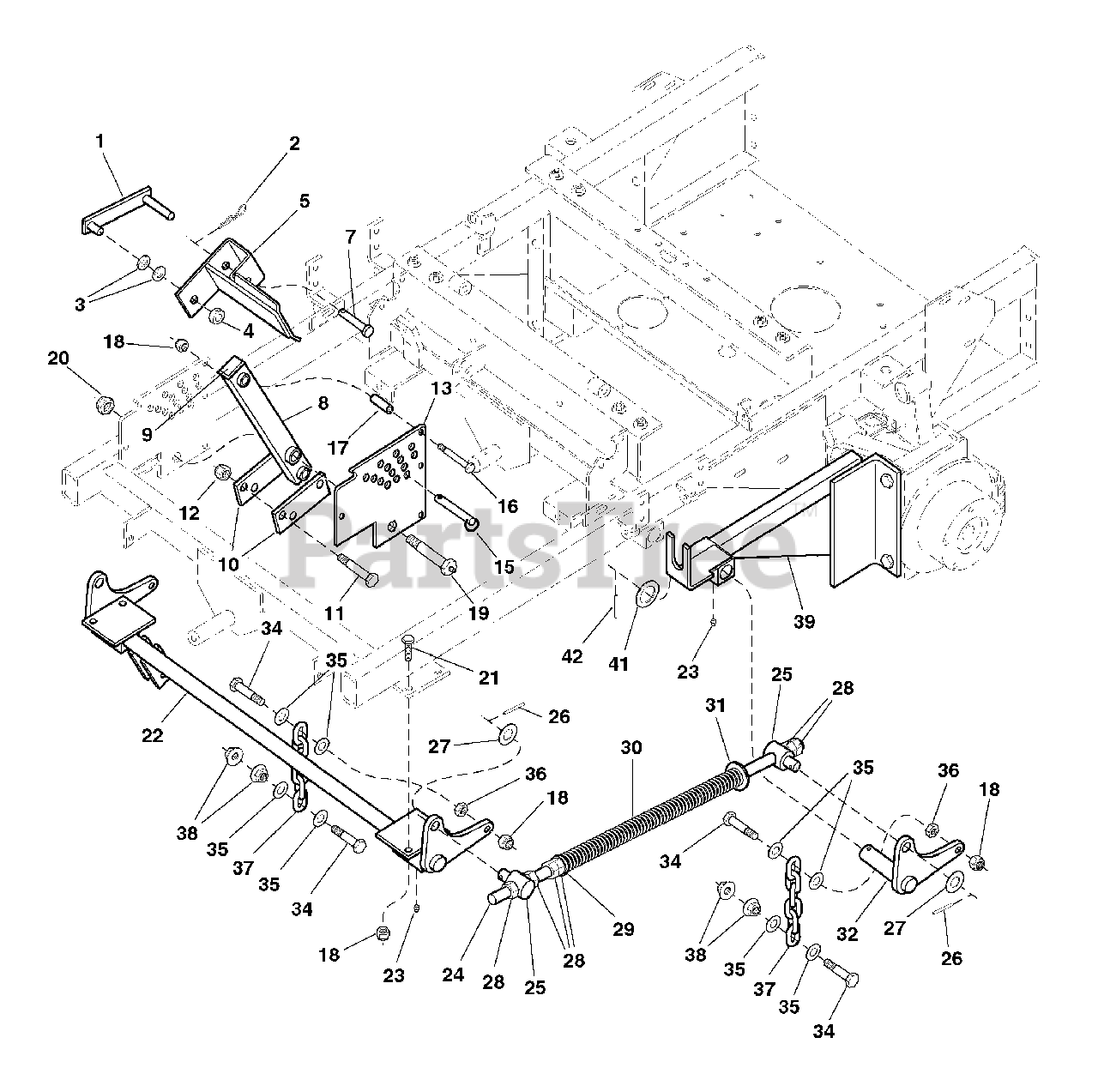

Lift Group (7010dlg) Parts Diagram

  • Title

1

Simplicity 1844999

DECK LIFT LOCK
(Superseded to 5044999E)

$

$

Not available

2

Simplicity 1918196SM

HAIRPIN CLIP
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

3

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 14

0

4

Simplicity 5010580SM

COLLAR, 1/2 Set
(Superseded to 5023241SM)

$16.99

$

In Stock, only 1 left!

0

5

Simplicity 1845058

DECK LIFT PEDAL
(Superseded to 5045058E)

$

$

Not available

6

Simplicity 5044875SM

SAFETY WALK, Deck Lift Pedal (not shown)
(Superseded to 5101008SM)

$7.49

$

Usually ships in 2-12 days

0

7

Simplicity 5022044SM

PIN, Clevis, 1/2 x 2-1/2

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1844987

ARM, Deck Lift Pivot
(Superseded to 5044987E)

$

$

Not available

9

Simplicity 5022097SM

CAP

$2.99

$

Usually ships in 2-12 days

0

10

Simplicity 1844994

LINK, Deck Lift
(Superseded to 5044994E)

$

$

Not available

11

Simplicity 502501824

CAPSCREW, Hex Hd, 1/2-20 x 3

$

$

Not available

12

Simplicity 5025098SM

NUT, Hex, Nylon Lock, 1/2-20

$5.99

$

In Stock, only 2 left!

0

13

Simplicity 1845379

DECK HEIGHT PLATE

$

$

Not available

14

Simplicity 5022063SM

DECAL, Deck Height (not shown)

$49.99

$

Usually ships in 2-12 days

0

15

Simplicity 5023082SM

PIN, 1/2 x 3

$22.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025013X22SM

CAPSCREW, Hex Hd, 3/8-16 x 2-3/4

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 5044992SM

SPACER, Lift Plate

$5.99

$

In Stock, only 2 left!

0

18

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 5044993SM

LIFT PIVOT BOLT

$31.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025282SM

NUT, Hex Jam, Nylon Lock, 5/8-11

$

$

Not available

21

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

22

Simplicity 1845451

DECK LIFT SHAFT & MOUNT ASSEMBLY
(Superseded to 5045451E)

$

$

Not available

23

Simplicity 5020095SM

CREASE FITTING

$3.99

$

In Stock, only 3 left!

0

24

Simplicity 5045446SM

SPRING ROD

$33.99

$

Usually ships in 2-12 days

0

25

Simplicity 5045447SM

SPRING ROD PIVOT

$25.99

$

Usually ships in 2-12 days

0

26

Simplicity 5022366SM

PIN, Spring, 3/16 x 1-1/4

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 5025281SM

WASHER, 5/8

$3.99

$

In Stock, Qty 8

0

28

Simplicity 5025040SM

NUT, Hex, 5/8-11

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 5041477SM

SPACER

$5.99

$

Usually ships in 2-12 days

0

30

Simplicity 5022333SM

SPRING, Deck Lift

$52.99

$

Usually ships in 2-12 days

0

31

Simplicity 5025159SM

WASHER, USS, 5/8
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 13

0

32

Simplicity 1845449

DECK LIFT PIVOT-LH
(Superseded to 5045449E)

$

$

Not available

33

Simplicity 1845500

DECK LIFT PIVOT-RH (not shown)

$

$

Not available

34

Simplicity 5025013X14SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/4

$3.99

$

In Stock, only 2 left!

0

35

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

36

Simplicity 5025084SM

NUT, Hex Jam, 3/8-16

$3.49

$

In Stock, Qty 14

0

37

Simplicity 50508786

CHAIN, 6 Links

$

$

Not available

38

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

39

Simplicity 1845216

REAR DECK LIFT FRAME-LH
(Superseded to 5045216E)

$

$

Not available

40

Simplicity 1845217

REAR DECK LIFT FRAME-RH (not shown)
(Superseded to 5045217E)

$

$

Not available

41

Simplicity 5021253SM

SHIM

$11.99

$

Usually ships in 2-12 days

0

42

Simplicity 5025516SM

PIN, Roll, 3/16 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0
