ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Hydraulic Group (7010hg) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

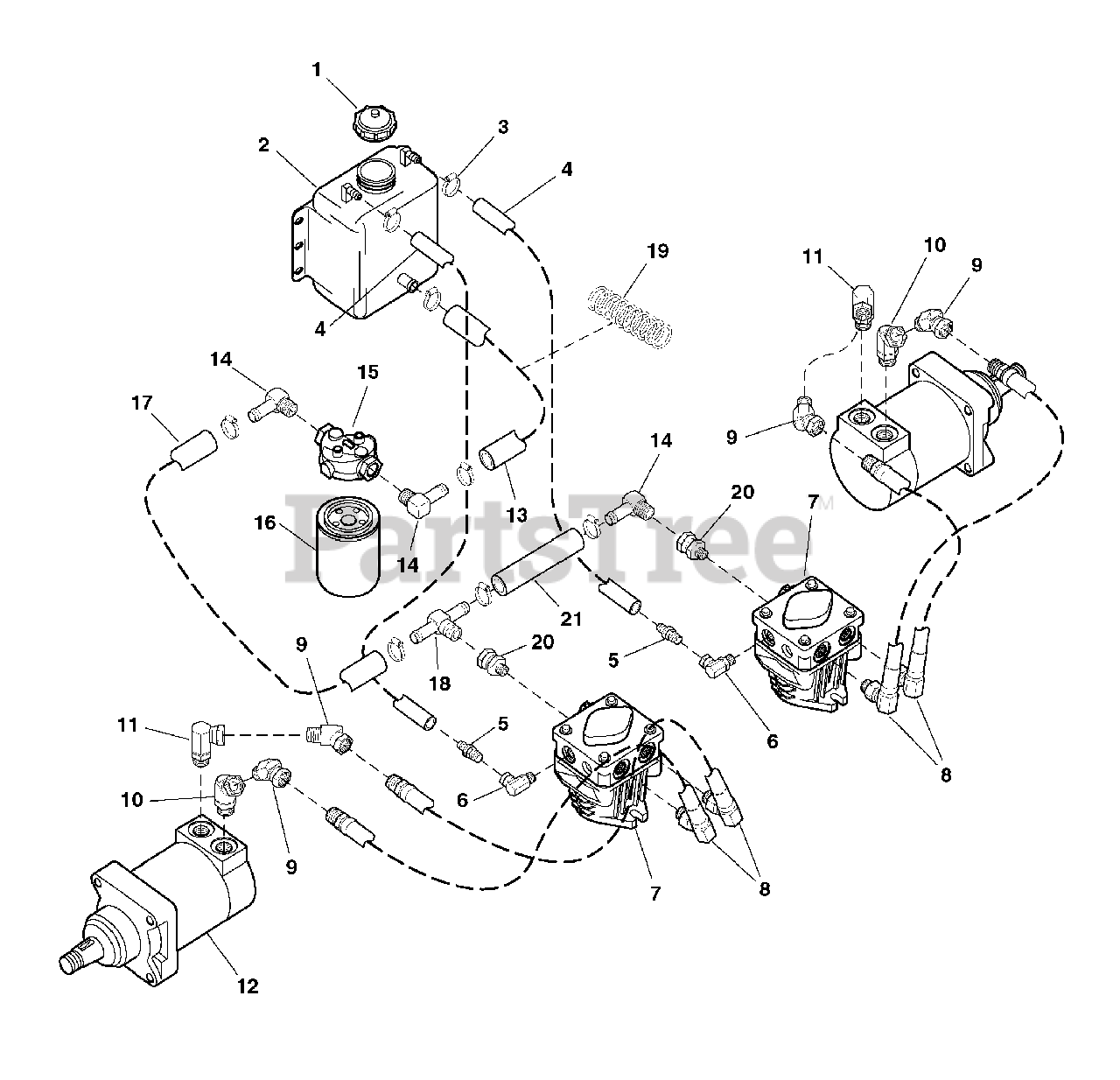

Hydraulic Group (7010hg) Parts Diagram

  • Title

$18.99

$

Usually ships in 2-12 days

0

2

$69.99

$

Usually ships in 2-12 days

0

3

$4.99

$

Usually ships in 2-12 days

0

4

Simplicity 5050860X17

HOSE, Return
(Superseded to 5050860X17YP)

$15.99

$

In Stock, only 1 left!

0

5

Simplicity 5022106SM

FITTING, Hose, Straight

$11.99

$

Usually ships in 2-12 days

0

6

Simplicity 5022052SM

FITTING, Hydraulic, 90 Deg. O-Ring Swivel

$16.99

$

Usually ships in 2-12 days

0

7

Simplicity 5022338SM

HYDRAULIC PUMP

$1396.99

$

Usually ships in 2-12 days

0

8

Simplicity 5022046SM

USE 5413138 + 5022599, HOSE ASSEMBLY (Pump to Wheel Motor)

$164.99

$

Usually ships in 2-12 days

0

9

Simplicity 5021361SM

FITTING, Hydraulic, 45 Deg. Swivel

$27.99

$

Usually ships in 2-12 days

0

10

Simplicity 5022210SM

FITTING, Hydraulic, 45 Deg. O-Ring Swivel

$

$

Not available

11

Simplicity 5021131SM

FITTING, Hydraulic, 90 Deg. O-Ring Swivel

$

$

Not available

12

Simplicity 5022042SM

HYDRAULIC WHEEL MOTOR

$1652.99

$

Usually ships in 2-12 days

0

$10.99

$

In Stock, only 1 left!

0

*

Simplicity 5220423

Nut
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

13

Simplicity 5050933X8

HOSE, Supply (Tank to Filter)

$12.99

$

Usually ships in 2-12 days

0

14

Simplicity 5021233SM

FITTING, Hose, 90 Deg.

$12.99

$

Usually ships in 2-12 days

0

15

Simplicity 5021356SM

FILTER HEAD

$61.99

$

Usually ships in 2-12 days

0

16

Simplicity 5021357X1SM

HYDRAULIC FILTER

$

$

Not available

17

Simplicity 5050933X14

HOSE, Supply (Filter to LH Pump)

$

$

Not available

18

Simplicity 5022364SM

FITTING, Hose Tee

$16.99

$

Usually ships in 2-12 days

0

19

Simplicity 5022401SM

SPRING, Compression

$12.99

$

In Stock, only 1 left!

0

20

Simplicity 5022365SM

FITTING, Hydraulic, Straight Swivel

$15.99

$

Usually ships in 2-12 days

0

21

Simplicity 5050933X12

HOSE, Supply (LH Pump to RH Pump)

$

$

Not available
