ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Brake Cover & Control Cover Mount Group (7010bccg) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

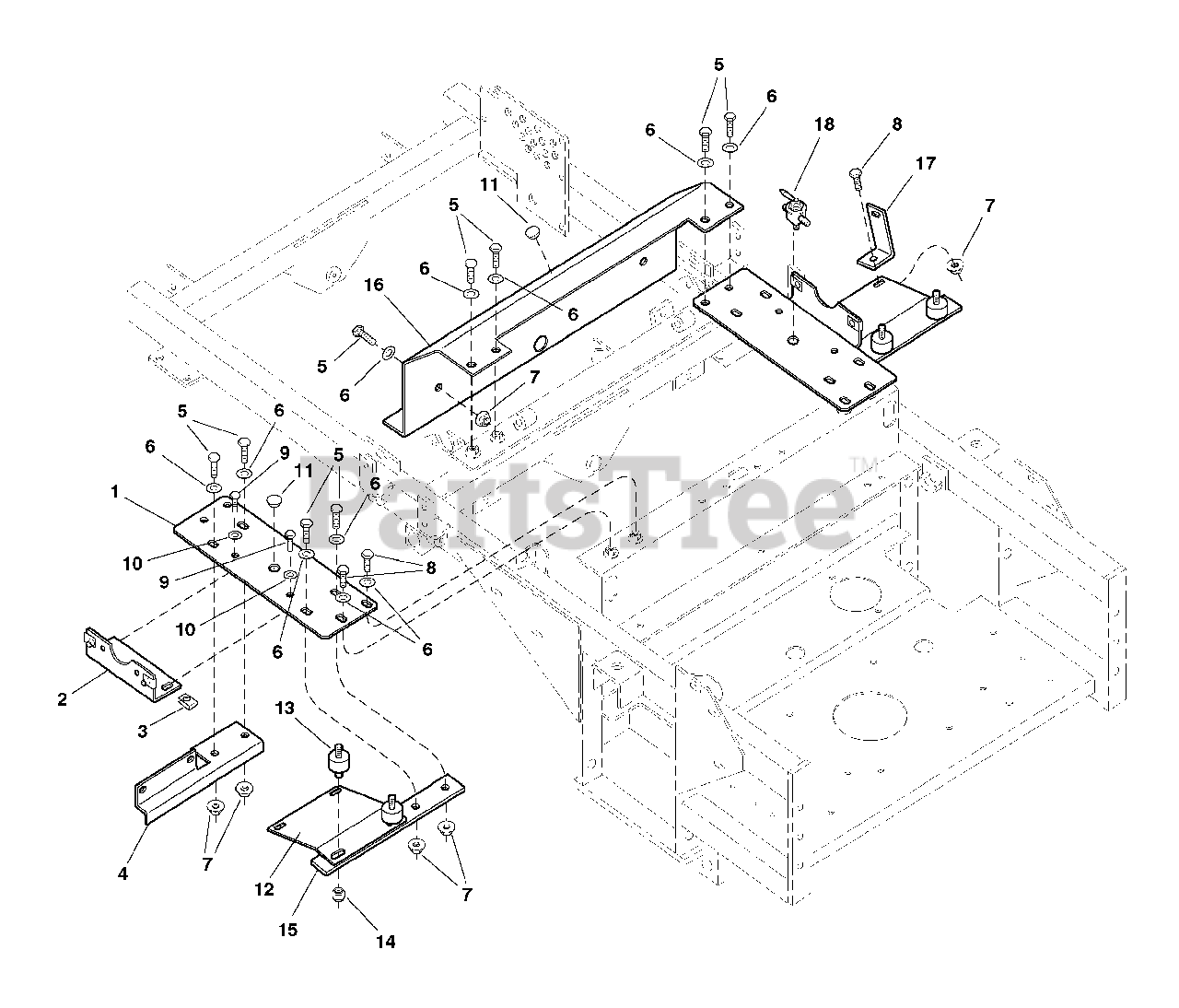

Brake Cover & Control Cover Mount Group (7010bccg) Parts Diagram

  • Title

1

Simplicity 1845891

COVER MOUNT PLATE
(Superseded to 5045891E)

$

$

Not available

2

Simplicity 1845892

BRACKET, Cover Mount
(Superseded to 5045892E)

$

$

Not available

3

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, only 2 left!

0

4

Simplicity 1845889

INSTRUMENT PANEL MOUNT
(Superseded to 5045889E)

$

$

Not available

5

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

6

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

7

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

8

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

10

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

11

Simplicity 5021003SM

HOLE PLUG

$

$

Not available

12

Simplicity 1845887

DEBRIS GUARD
(Superseded to 5045887E)

$

$

Not available

13

Simplicity 5022395SM

RUBBER ISOLATOR

$29.99

$

Usually ships in 2-12 days

0

14

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

15

Simplicity 1845890

TANK MOUNT BAR
(Superseded to 5045890E)

$

$

Not available

16

Simplicity 1845634

BRAKE COVER PANEL

$

$

Not available

17

Simplicity 1845922

BRACKET, Cover Mount

$

$

Not available

18

Simplicity 5022030SM

VALVE, Fuel Shut Off

$43.99

$

Usually ships in 2-12 days

0
