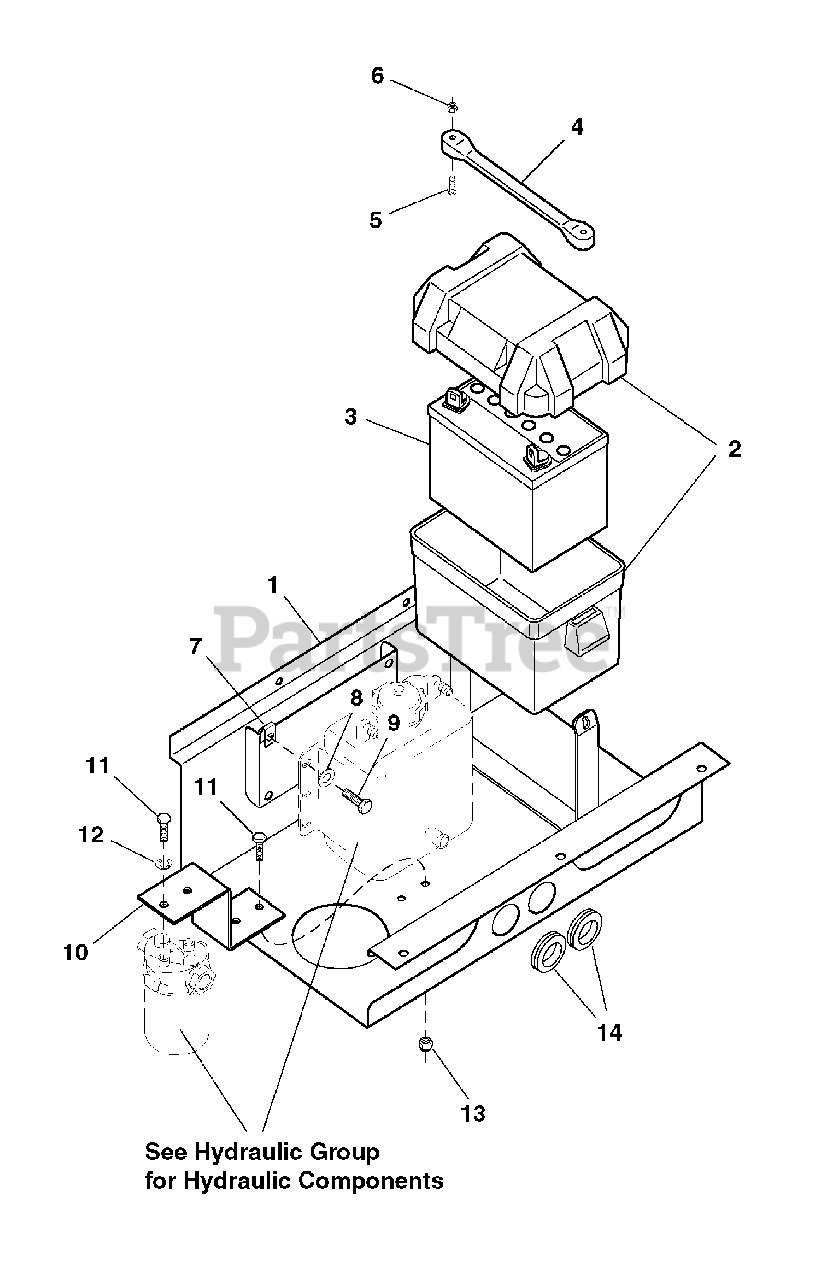

ZT 2354 - Simplicity Stallion 54" Zero-Turn Mower, 23hp Kohler Battery & Mount Pan Group (7010bmpg) Parts Diagram

Stallion 54" Zero-Turn Mower, 23hp Kohler

Battery & Mount Pan Group (7010bmpg) Parts Diagram

  • Title

1

Simplicity 1845909

BATTERY & RESERVOIR PAN
(Superseded to 5045909E)

$

$

Not available

2

Simplicity 5021666

BATTERY BOX w/ Cover
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

3

Simplicity 1685215SM

BATTERY (shipped dry)

$

$

Not available

4

Simplicity 5021670SM

RUBBER STRAP

$13.99

$

In Stock, only 1 left!

0

5

Simplicity 5025270SM

SCREW, Phillips, #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 703412

NUT, Hex, Nylon Lock, #10-24

Note: (5025271)

$4.49

$

In Stock, only 2 left!

0

7

Simplicity 5022308SM

BODY CLIP, 5/16-18

$5.99

$

In Stock, only 2 left!

0

8

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

10

Simplicity 1845910

MOUNT, Filter Head
(Superseded to 5045910E)

$

$

Not available

11

Simplicity 5025010X6SM

CAPSCREW, Hex Hd, 1/4-20 x 3/4

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025169SM

WASHER, Lock, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

13

Simplicity 5025095SM

NUT, Hex, Nylon Lock, 1/4-20

$3.49

$

In Stock, Qty 5

0

14

Simplicity 5021397SM

GROMMET, 1-1/4

$6.49

$

Usually ships in 2-12 days

0
