ZT 2352 T - Simplicity Colt 52" Zero-Turn Mower, 23hp Kohler Motion Control Group (7090mcg) Parts Diagram

Colt 52" Zero-Turn Mower, 23hp Kohler

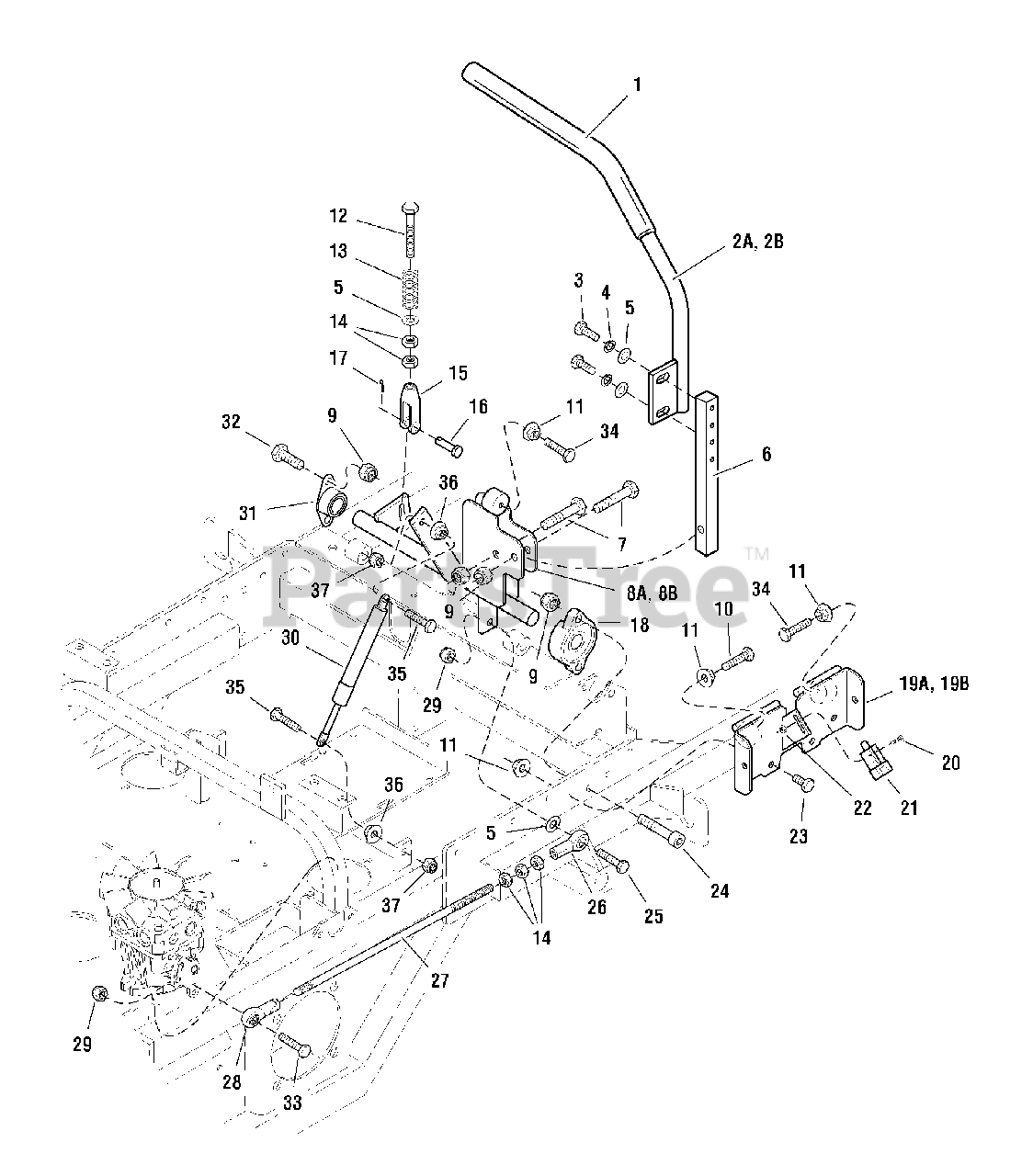

Motion Control Group (7090mcg) Parts Diagram

  • Title

1

Simplicity 5022068SM

FOAM GRIP

$11.99

$

Usually ships in 2-12 days

0

2A

Simplicity 5047056A

WELD, HANDLE MOTION CONTROL, RH - BLK
(Superseded to 5047056AYP)

$61.99

$

Usually ships in 2-12 days

0

2B

Simplicity 5047055A

WELD, HANDLE MOTION CONTROL, LH - BLK
(Superseded to 5047055AYP)

Note: (Not Shown)

$61.99

$

In Stock, only 1 left!

0

3

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

4

Simplicity 5025170SM

WASHER, Lock, 5/16

$3.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

6

Simplicity 5047004A

MOUNT, CONTROL ARM - BLK
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025013X14SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/4

$3.99

$

In Stock, only 2 left!

0

8A

Simplicity 5047045CSM

CONTROL SHAFT-RH

$142.99

$

Usually ships in 2-12 days

0

8B

Simplicity 5047044CSM

CONTROL SHAFT-LH (not shown)

$142.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 5025055X14SM

CAPSCREW, Hex Hd, TFL, 5/16-18 x 1-3/4

$3.99

$

Usually ships in 2-12 days

0

11

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 5047137SM

REVERSE RETURN BOLT

$

$

Not available

13

Simplicity 5022645SM

SPRING, Reverse Return

$9.49

$

In Stock, only 1 left!

0

14

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5020979SM

CLEVIS, 5/16-24
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025213X8SM

PIN, Clevis, 5/16 x 1

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025201X6SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 5021499SM

BEARING, Flange

$55.99

$

In Stock, only 2 left!

0

19A

Simplicity 5047081CSM

NEUTRAL LOCK BRACKET-RH

$

$

Not available

19B

Simplicity 5047080CSM

NEUTRAL LOCK BRACKET-LH (not shown)

$

$

Not available

20

Simplicity 5025179X4SM

SCREW, #10-24 x 1/2

$3.99

$

Usually ships in 2-12 days

0

21

SWITCH (see electrical schematic)

$

$

Not available

22

Simplicity 5025029SM

NUT, Hex, #10-24

$2.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

24

Simplicity 5025327SM

CAPSCREW, Allen Hd, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

25

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

26

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

In Stock, only 2 left!

0

27

Simplicity 5047102SM

HYDRO CONTROL ROD

$32.99

$

Usually ships in 2-12 days

0

28

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

29

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

30

Simplicity 5100728SM

DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

31

Simplicity 5021098SM

BEARING, Flange

$13.99

$

In Stock, Qty 5

0

32

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

33

Simplicity 5025011X9SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/8

$3.99

$

In Stock, only 1 left!

0

34

Simplicity 502505510

CAPSCREW, Hex Hd, TFL, 5/16-18 x 1-1/4

$

$

Not available

35

Simplicity 5025335SM

CAPSCREW, Hex Hd, M8-1/25 x 35MM

$3.49

$

Usually ships in 2-12 days

0

36

Simplicity 5025355SM

NUT, Hex, Serrated Flange, M8-1.25

$3.49

$

Usually ships in 2-12 days

0

37

Simplicity 5025354SM

NUT, Hex, Nylon Lock, M8-1.25

$3.49

$

Usually ships in 2-12 days

0
