ZT 2352 K - Simplicity Colt 52" Zero-Turn Mower, 23hp Kohler Parking Brake Group - Lower (7034pbgl) Parts Diagram

Colt 52" Zero-Turn Mower, 23hp Kohler

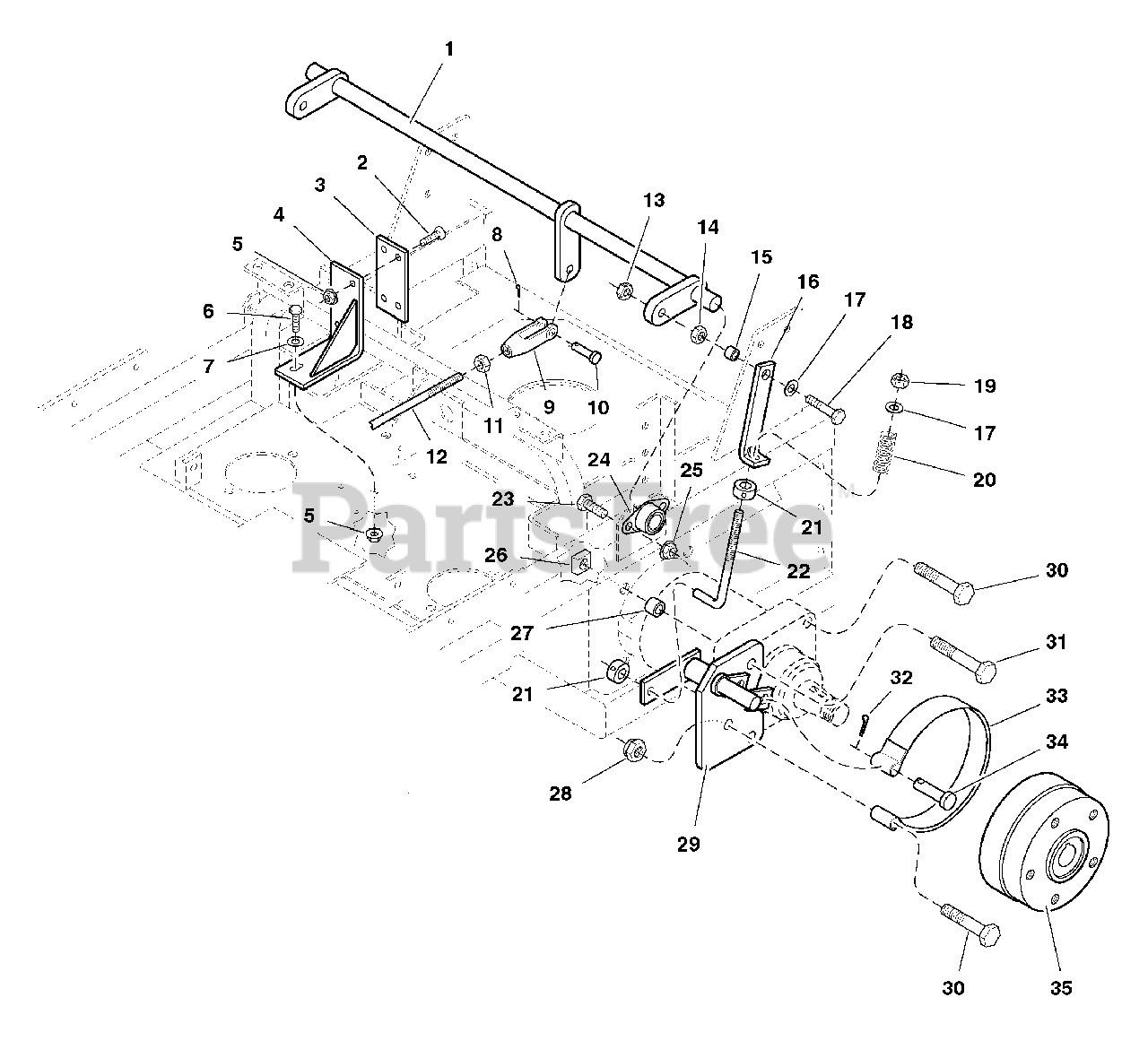

Parking Brake Group - Lower (7034pbgl) Parts Diagram

  • Title

1

Simplicity 1847128

BRAKE CROSS SHAFT

$

$

Not available

2

Simplicity 5025594YP

SCREW, 5/16-18 X 1, PHILLIPS HD, BZ

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 5045990SM

FRICTION PLATE

$20.99

$

Usually ships in 2-12 days

0

4

Simplicity 1847153

SUPPORT, Brake Shaft

$

$

Not available

5

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 5025201X6SM

COTTER PIN
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 5021171SM

CLEVIS, 3/8-24

$15.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025214X8SM

PIN, Clevis, 3/8 x 1
(Superseded to 7029687YP)

$7.99

$

In Stock, only 1 left!

0

11

Simplicity 5025035SM

NUT, Hex, 3/8-24

$3.49

$

Usually ships in 2-12 days

0

12

Simplicity 5047119SM

BRAKE CONNECTING ROD

$

$

Not available

13

Simplicity 5025100SM

NUT, Hex, Side Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 5041930SM

PIVOT SLEEVE

$4.99

$

Usually ships in 2-12 days

0

16

Simplicity 5047084A

LINK, BRAKE LOCK - BLK
(Superseded to 5047084AYP)

$21.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

18

Simplicity 5025013X12SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/2

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025046SM

NUT, Hex, Top Lock, 3/8-16

$3.49

$

In Stock, Qty 6

0

20

Simplicity 5022361SM

BRAKE SPRING

$9.99

$

Usually ships in 2-12 days

0

21

Simplicity 5010546SM

COLLAR, Set, 3/8

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 5047091SM

ROD, Brake Adjustment

$13.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025013X6SM

CAPSCREW, Hex Hd, 3/8-16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5021098SM

BEARING, Flange

$13.99

$

In Stock, Qty 5

0

25

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

26

Simplicity 5025330

NUT, Square, 1/2-13
(Superseded to 5025330SM)

$3.49

$

Usually ships in 2-12 days

0

27

Simplicity 5047027SM

SPACER, Wheel Motor

$5.49

$

In Stock, Qty 20+

0

28

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

29

Simplicity 1847089

BRAKE BAND SHAFT-LH

$

$

Not available

*

Simplicity 1847090

BRAKE BAND SHAFT-RH (not shown)

$

$

Not available

30

Simplicity 502501724

CAPSCREW, Hex Hd, 1/2-13 x 3

$

$

Not available

31

Simplicity 5025017X28SM

CAPSCREW, Hex Hd, 1/2-13 x 3-1/2

$5.99

$

In Stock, only 2 left!

0

32

Simplicity 502520210

COTTER PIN

$

$

Not available

33

Simplicity 5022607SM

BRAKE BAND

$37.99

$

Usually ships in 2-12 days

0

34

Simplicity 502532816

PIN, Clevis, 1/2 x 2

$

$

Not available

35

Simplicity 5047052SM

BRAKE HUB

$

$

Not available
