ZT 2348 T - Simplicity Colt 48" Zero-Turn Mower, 23hp Kohler Tire & Wheel Group (7090twg) Parts Diagram

Colt 48" Zero-Turn Mower, 23hp Kohler

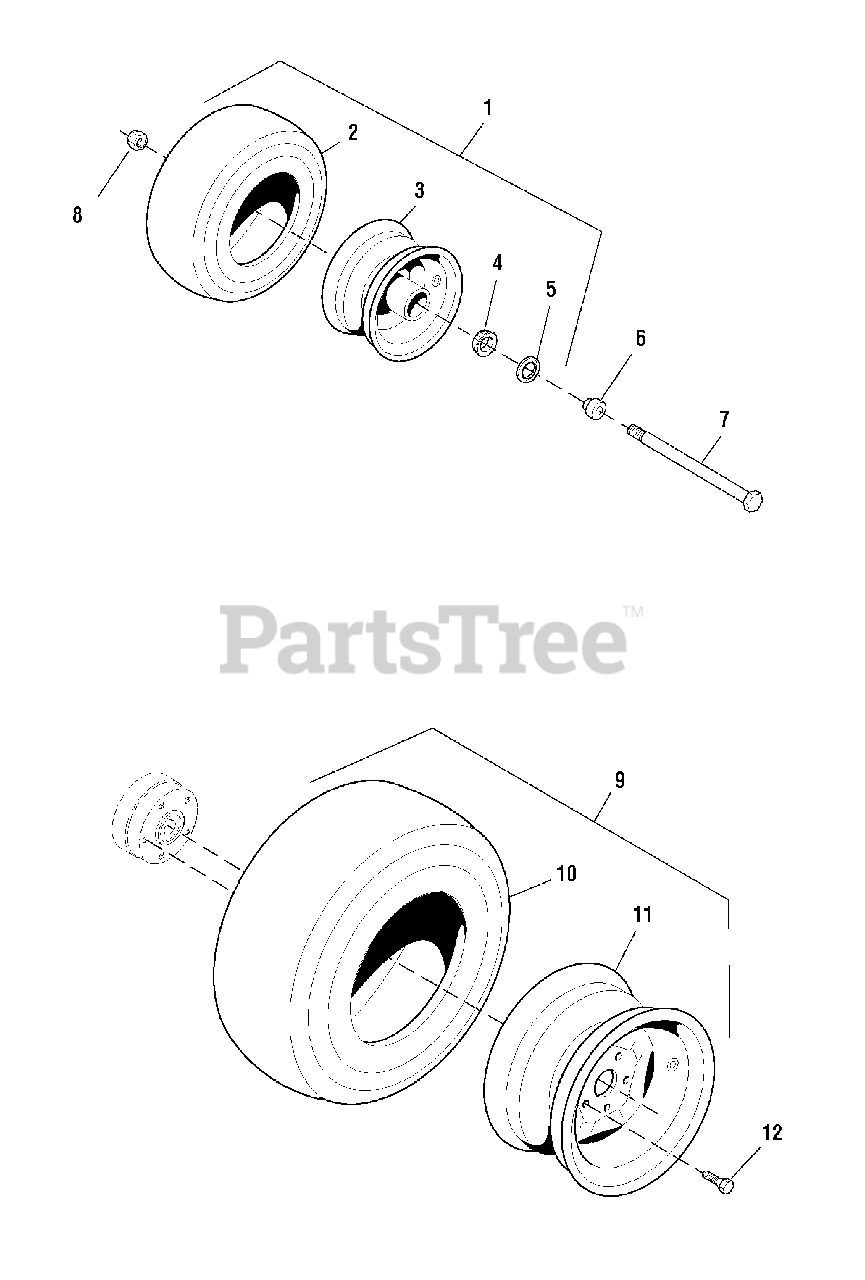

Tire & Wheel Group (7090twg) Parts Diagram

  • Title

1

Simplicity 5022631SSM

WHEEL & TIRE ASSEMBLY, Front, 13 x 5.0 x 6, Complete

Note: (includes Ref. No. 2 - 5)

$168.99

$

Usually ships in 2-12 days

0

2

Simplicity 5022029X1SM

TIRE, Front, 13 x 5.0 x 6

$

$

Not available

3

Simplicity 5022631SX1SM

WHEEL ASSEMBLY, Front, for 13 x 5.0 x 6 Tire, Complete

Note: (includes Ref. No. 4 & 5)

$102.99

$

Usually ships in 2-12 days

0

4

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

Note: (2 per tire)

$12.99

$

In Stock, Qty 20+

0

5

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (2 per tire)

$9.99

$

In Stock, Qty 20+

0

6

Simplicity 5047103SM

ADAPTER, Caster Wheel (2 per wheel)

$10.99

$

In Stock, Qty 20+

0

7

Simplicity 502501760

CAPSCREW, Hex Hd, 1/2-13 x 7-1/2

$

$

Not available

8

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

9

Simplicity 5022646SSM

WHEEL & TIRE ASSEMBLY, Rear, 23 x 9.5 x 12, Complete (Includes Ref 10 & 11)

$

$

Not available

10

Simplicity 5022646S1

TIRE, Rear, 23 x 9.5 x 12

$

$

Not available

11

Simplicity 5022646S2

WHEEL ASSEMBLY, Rear, for 23 x 9.5 x 12 Tires

$

$

Not available

12

Simplicity 5022215SM

WHEEL LUG, 1/2 x 1-5/8

$9.99

$

Usually ships in 2-12 days

0
