ZT 2324 (2691098-00) - Massey Ferguson 46" Zero-Turn Mower, 24hp Briggs & Stratton Frame Group Parts Diagram

46" Zero-Turn Mower, 24hp Briggs & Stratton

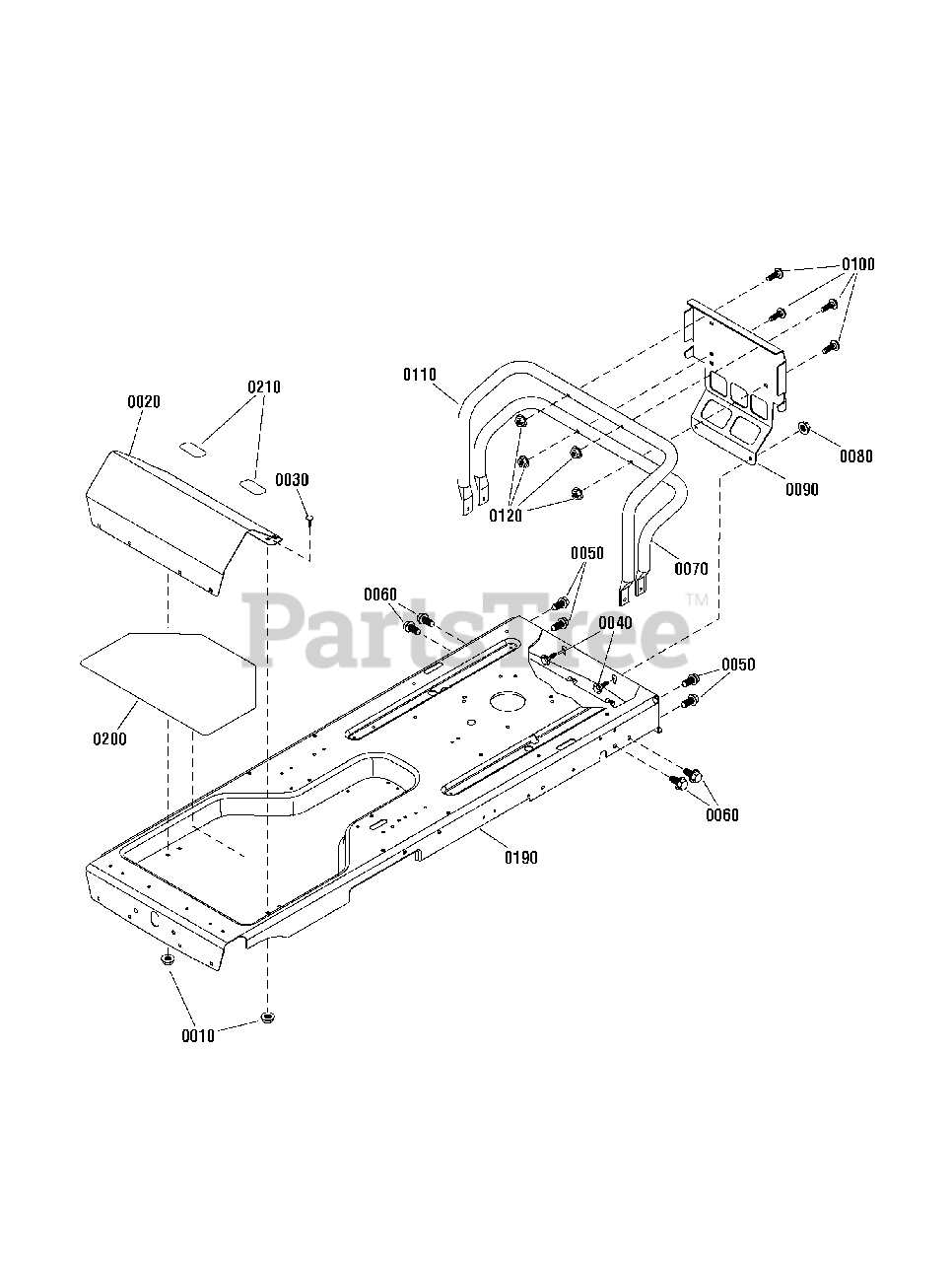

Frame Group Parts Diagram

  • Title

0010

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0020

Simplicity 7300140DYP

FOOTREST, SNAPPER

$79.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703125

BOLT, 5/16-18 x 5/8 Carriage, Grade 5, Zinc/Clear

$3.99

$

In Stock, only 2 left!

0

0040

Simplicity 1716654SM

BOLT, 5/16-18 Shoulder, G5 Yel

$5.49

$

In Stock, only 3 left!

0

0050

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0060

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 1753517BMYP

BUMPER, Lower Tube Single

$92.99

$

In Stock, only 1 left!

0

0080

Simplicity 703330

NUT, 5/16-18, Hex Flange Whiz-Lock, Zinc/Clear

$4.99

$

In Stock, Qty 14

0

0090

Simplicity 1753572DYP

PLATE, Brand - SNAPPER, Red

$95.99

$

Usually ships in 2-12 days

0

0100

Simplicity 703175

BOLT, 5/16-18 x 1-3/4 Round Head Short Square Neck, GR 5, Zinc/Clear

$3.99

$

In Stock, only 2 left!

0

0110

Simplicity 7301123BMYP

TUBE, Bumper, Upper, 285Z

$142.99

$

Usually ships in 2-12 days

0

0120

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0190

Simplicity 7301073DYP

FRAME, RZT

$1128.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7103830YP

MAT, Floor Pan, RZT

$33.99

$

Usually ships in 2-12 days

0

0210

Simplicity 7104571YP

PAD, Foot, Wide

$17.99

$

In Stock, Qty 5

0
