ZT 2321 (2691097-00) - Massey Ferguson 42" Zero-Turn Mower, 21hp Briggs & Stratton Spindle Assembly (7502226) Parts Diagram

42" Zero-Turn Mower, 21hp Briggs & Stratton

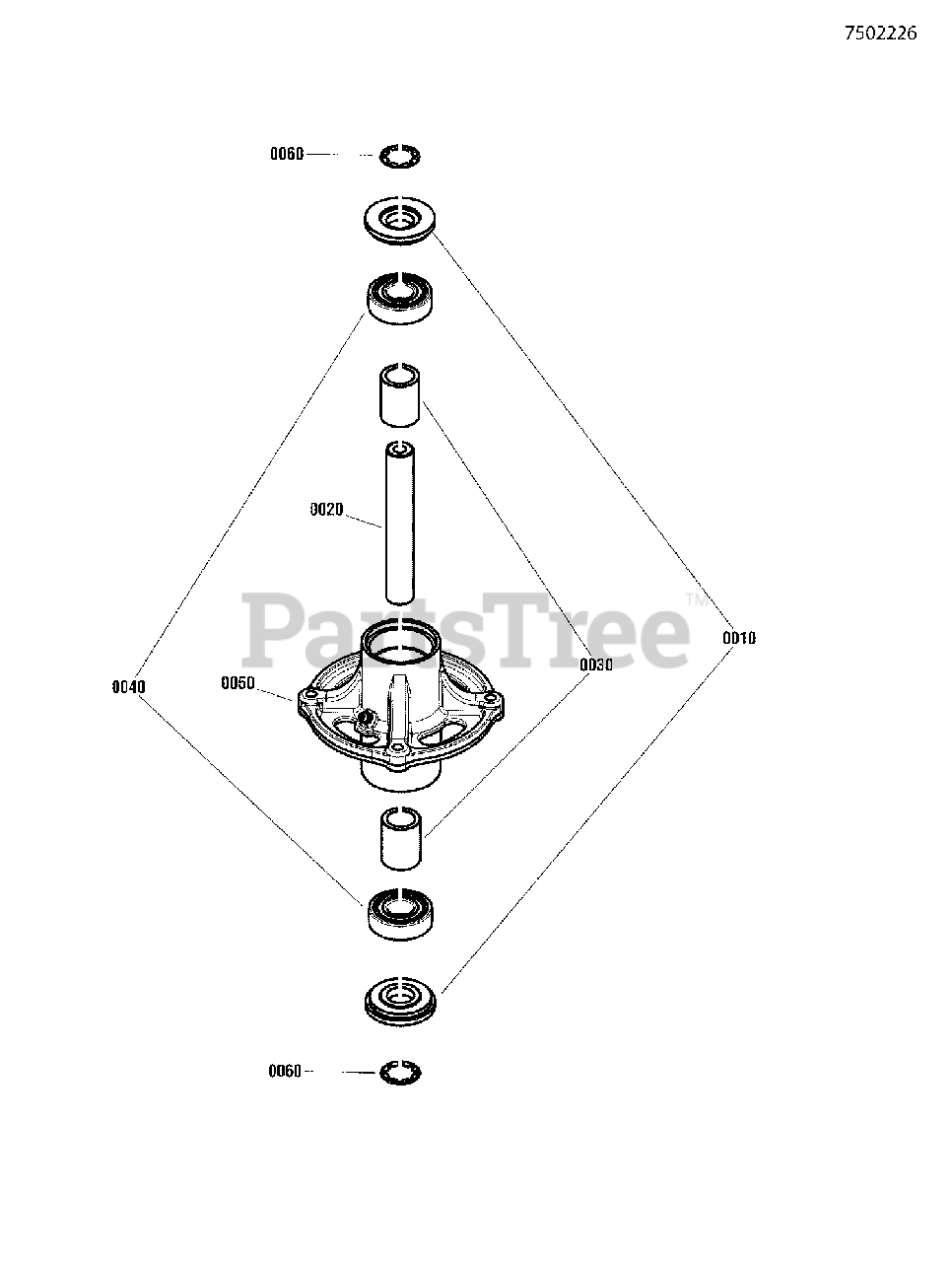

Spindle Assembly (7502226) Parts Diagram

  • Title

0010

Simplicity 1735323YP

SHIELD, Arbor, 2.050 OD
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0020

Simplicity 1735326YP

SHAFT, Spindle, 20mm DIA 134.60mm LG
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0030

Simplicity 1735328YP

SPACER, Bearing, Powder Metal

$6.49

$

In Stock, only 3 left!

0

0040

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0050

Simplicity 1735573YP

HOUSING, Spindle, Cast Aluminum (Machined) w/Grease Fitting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 9

0

0060

Simplicity 1960766YP

RING, Self Locking (For 20MM Shaft)

$4.49

$

In Stock, Qty 20+

0
