ZT 2300 (2691308-00) - Massey Ferguson 52" Zero-Turn Mower, 25hp Briggs & Stratton 52" Mower Deck - Clutch & Support Group Parts Diagram

52" Zero-Turn Mower, 25hp Briggs & Stratton

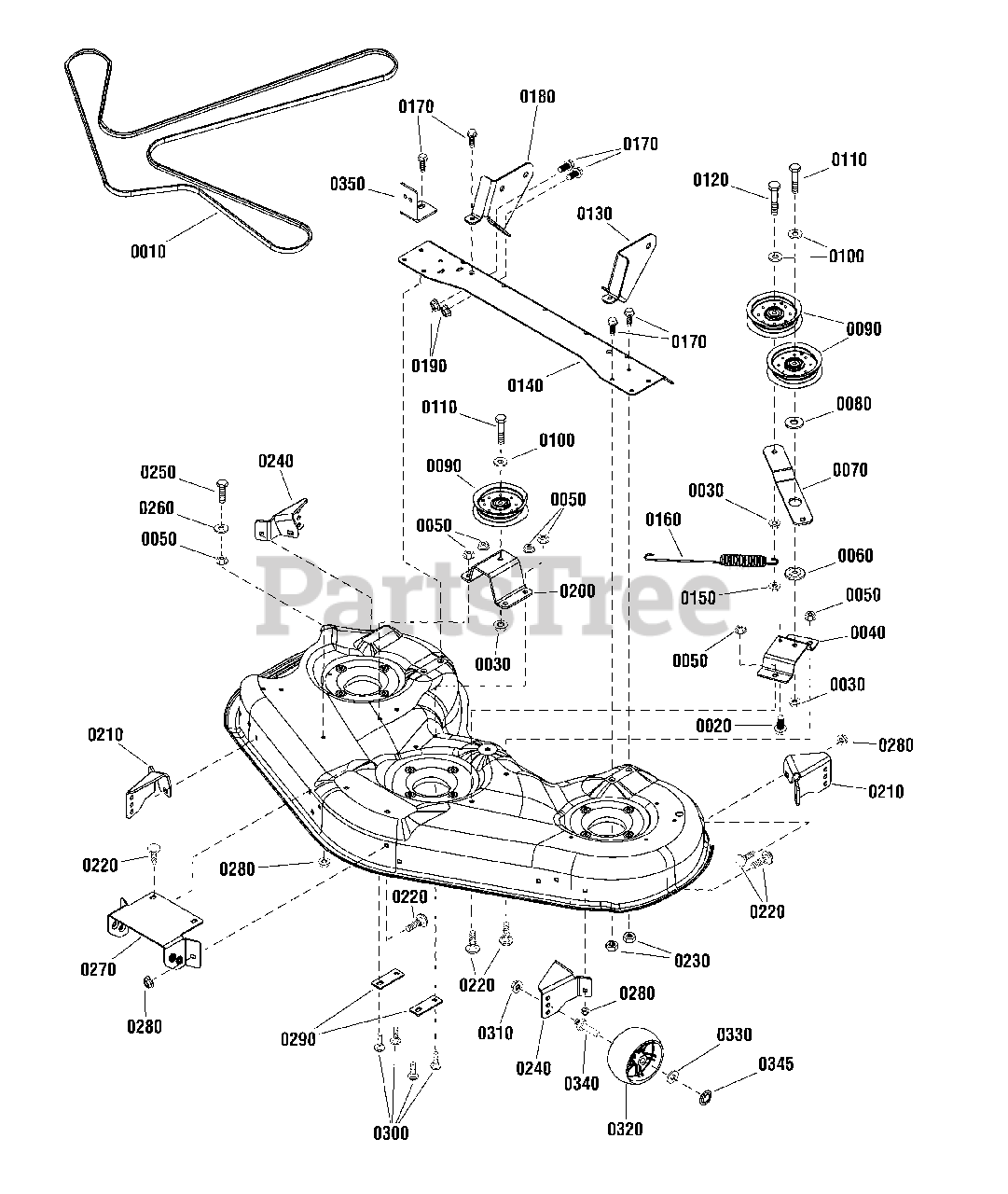

52" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 7103789YP

BELT, HA Section

$116.99

$

In Stock, only 1 left!

0

0020

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 703333

NUT, 3/8-16, Flanged Lock, GR5

$4.99

$

In Stock, Qty 20+

0

0040

Simplicity 1736437BMYP

BRACKET, Front Idler Mount

$21.99

$

Usually ships in 2-12 days

0

0050

Simplicity 703330

NUT, 5/16-18, Hex Flange Whiz-Lock

$4.99

$

In Stock, Qty 14

0

0060

Simplicity 1714255SM

SPACER, 0.406 ID, 1.50 OD, 0.350

$6.49

$

In Stock, Qty 17

0

0070

Simplicity 7301100BMYP

ARM, Idler

$

$

Not available

0080

Simplicity 7091331SM

WASHER, 13/32 x 1-1/2 x .120 Flat, YZ
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

0090

Simplicity 1736540YP

PULLEY, Idler, 4 OD

$35.99

$

In Stock, only 3 left!

0

0100

Simplicity 703878

WASHER, .41 ID X 0.87 OD X .08 Thk

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 703872

SCREW, 3/8-16 x 2-1/4 Hex Head Cap, GR5

$4.99

$

In Stock, Qty 20+

0

0120

Simplicity 1933685SM

SCREW, 3/8-16 x 2-1/2 Hex Head Cap GR 5

$5.49

$

In Stock, only 1 left!

0

0130

Simplicity 1736397BMYP

BRACKET, Rear Mower Pickup, LH

$19.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1736070BMYP

SUPPORT, Rear Cross

$82.99

$

Usually ships in 2-12 days

0

0150

Simplicity 1960339SM

NUT, 3/8-16 Hex Flange Center Lock

$

$

Not available

0160

Simplicity 1737415YP

SPRING, Extension

$12.99

$

In Stock, only 1 left!

0

0170

Simplicity 1960373SM

SCREW, 5/16-18 X 1.0, Hex Washer Head, Taptite, Black
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0180

Simplicity 1736398BMYP

BRACKET, Rear Mower Pickup, RH

$19.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703115

NUT, 5/16-18, Flange Nylock

$3.49

$

In Stock, Qty 20+

0

0200

Simplicity 7301102BMYP

BRACKET, Fixed Idler, Rear

$

$

Not available

0210

Simplicity 1736075BMYP

BRACKET, Gauge Wheel, LH

$14.99

$

In Stock, Qty 14

0

0220

Simplicity 1931334SM

BOLT, 5/16-18 x 7/8 Carriage, Short Neck, GR 5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0230

Simplicity 703164

NUT, 5/16-18, Hex Center Lock

$3.49

$

In Stock, Qty 19

0

0240

Simplicity 1736074BMYP

BRACKET, Gauge, Wheel, R.H.

$15.99

$

In Stock, only 1 left!

0

0250

Simplicity 704288

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5

$4.99

$

Usually ships in 2-12 days

0

0260

Simplicity 703298

WASHER, 5/16, GR5

$4.49

$

In Stock, only 2 left!

0

0270

Simplicity 1736071BMYP

HITCH, Front

$29.99

$

Usually ships in 2-12 days

0

0280

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0290

Simplicity 1737229BMYP

PLATE, Backing

$8.49

$

Usually ships in 2-12 days

0

0300

Simplicity 703800

BOLT, 5/16 - 18 X 1, Short Neck Carriage

$3.99

$

In Stock, Qty 7

0

0310

Simplicity 703158

NUT, 3/8-16, Hex Flange

$3.49

$

Usually ships in 2-12 days

0

0320

Simplicity 1736896YP

WHEEL, Gauge Black Poly 5 DIA

$16.99

$

In Stock, Qty 5

0

0330

Simplicity 703853

WASHER, 0.516 ID X 1.00 OD X 0.12 Thk, Special

$4.99

$

In Stock, Qty 20+

0

0340

Simplicity 094025MA

BOLT, Gage

$11.99

$

In Stock, only 1 left!

0

0345

Simplicity 705437

NUT, Push

$4.49

$

In Stock, only 2 left!

0

0350

Simplicity 7301133BMYP

BRACKET, Rear

$14.99

$

Usually ships in 2-12 days

0
