ZT-2250 (53CA1A7K190) - White Outdoor 54" Zero-Turn Mower (2001) Battery & Electrical Parts Diagram

54" Zero-Turn Mower

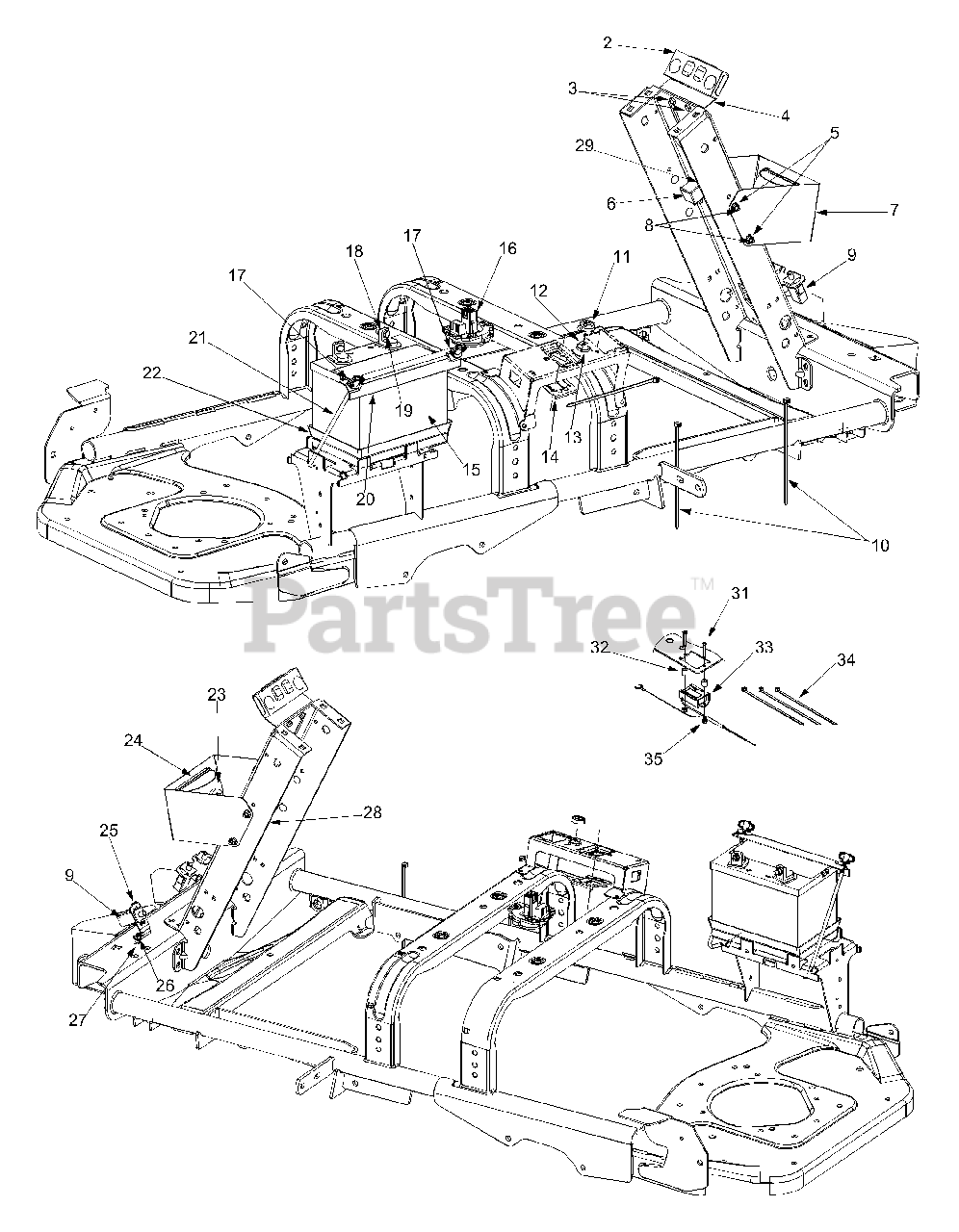

Battery & Electrical Parts Diagram

  • Title

1

White Outdoor 629-3070

Wire Harness, Main

Note: Not Shown

$

$

Not available

2

White Outdoor 723-0455

Foam Protector, Indicator Light

$

$

Not available

3

White Outdoor 710-3013

Hex Cap Screw 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

4

White Outdoor 703-2809

Bracket, Indicator Bulb Mtg.

Variations

White Outdoor 703-2809-0637

No Longer Available BRKT. INDICATOR LG - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 712-3027

Nut, Hex Flange Lock, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 725-1718

Relay
(Superseded to 925-1718)

$73.99

$

Usually ships in 3-6 days

0

7

White Outdoor 703-2836

Bracket, Headlight Mtg.

Variations

White Outdoor 703-2836-0498

BRACKET-HEADLIGHT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2836-0637

BRACKET-HEADLIGHT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2836-0648

Bracket, Headlight Mtg. - TECH GRAY (0648)

$

$

Not available

$

$

8

White Outdoor 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 725-3164A

Switch, Plunger Safety
(Superseded to 925-3164A)

$40.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 725-1347

Cap, Ignition Switch

$4.99

$

In Stock, only 1 left!

0

12

White Outdoor 725-1346

Nut, Ignition Switch, 5/8-32
(Superseded to 925-1346)

$

$

Not available

13

White Outdoor 725-1717

Switch, Ignition
(Superseded to 925-1717)

$52.99

$

In Stock, only 4 left!

0

14

White Outdoor 783-0462

Bracket, PTO Switch Retainer

$

$

Not available

15

White Outdoor 725-1722

Battery
(Superseded to 925-0453G)

$

$

Not available

16

White Outdoor 725-3254

Switch, Seat
(Superseded to 925-3254)

$

$

Not available

17

White Outdoor 712-0397

Nut, Nylon Wing, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 703-3149A

Strip, Battery Retainer

$

$

Not available

21

White Outdoor 747-3347

Rod, Battery Retainer

$

$

Not available

22

White Outdoor 731-3233

Tray, Battery

$

$

Not available

23

White Outdoor 725-3250

Headlight Assembly
(Superseded to 925-3250)

$

$

Not available

White Outdoor 759-3864

Bulb, Headlight - Only
(Superseded to 925-1759)

$51.99

$

In Stock, only 1 left!

0

24

White Outdoor 731-3184

Bezel, Headlight

$

$

Not available

25

White Outdoor 732-0816

Spring, Switch Mounting

$

$

Not available

26

White Outdoor 710-0425

Screw, Machine, #10-24 x 5/8

$4.99

$

Usually ships in 3-6 days

0

27

White Outdoor 712-0161

Nut, Hex Insert Lock, #10-24

$4.49

$

In Stock, Qty 20+

0

28

White Outdoor 725-3251

Voltage Sensor
(Superseded to 925-3251)

$49.99

$

In Stock, only 1 left!

0

29

White Outdoor 726-0349

Ratchet Retainer

$

$

Not available

?30

White Outdoor 725-3191A

Switch, Plunger Safety
(Superseded to 925-3191A)

$54.99

$

In Stock, only 4 left!

0

31

White Outdoor 710-3143

Machine Screw #10-24

$11.99

$

Usually ships in 3-6 days

0

32

White Outdoor 750-0539

Spacer .315 ID x .50 OD
(Superseded to 950-0539)

$

$

Not available

33

White Outdoor 725-3159

Hour Meter
(Superseded to 925-3159)

$

$

Not available

34

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 712-0161

Lock Nut #10-24

$4.49

$

In Stock, Qty 20+

0
