ZT-2250 (53CA1A7K190) - White Outdoor 54" Zero-Turn Mower (2001) 54" Deck Assembly Parts Diagram

54" Zero-Turn Mower

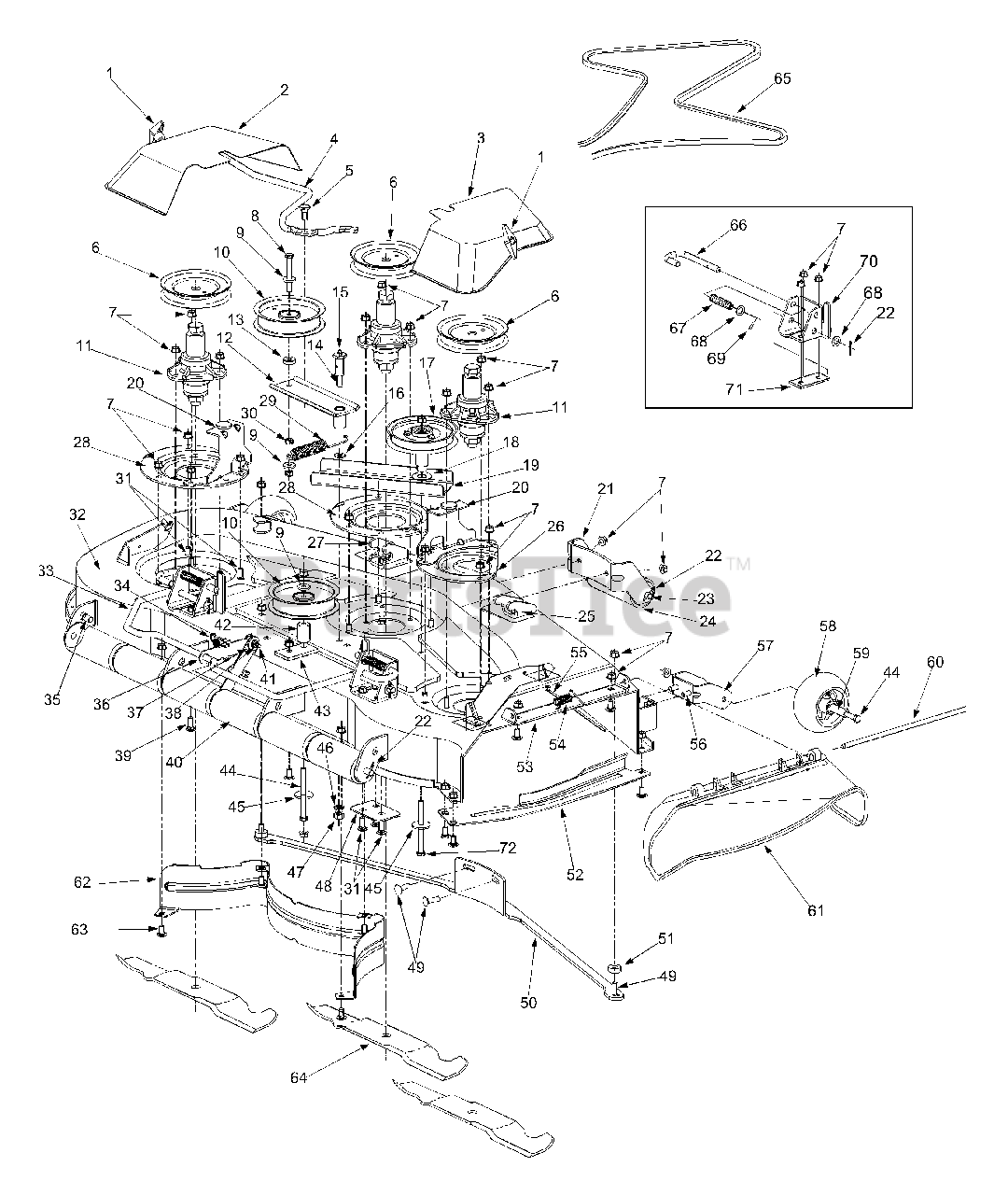

54" Deck Assembly Parts Diagram

  • Title

1

White Outdoor 720-0241

Wing Nut Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

2

White Outdoor 703-2817

Belt Cover LH

Variations

White Outdoor 703-2817-0498

COVER-BELT:LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2817-0637

COVER-BELT:LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2817-0648

COVER-BELT:LH - TECH GRAY (0648)

$

$

Not available

$

$

3

White Outdoor 703-2816

Belt Cover RH

Variations

White Outdoor 703-2816-0498

COVER-BELT:RH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2816-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2816-0648

COVER-BELT:RH - TECH GRAY (0648)

$

$

Not available

$

$

4

White Outdoor 747-3306

Idler Spring Mounting Rod

$

$

Not available

5

White Outdoor 738-0380

Shoulder Screw 3/8-16

$7.99

$

In Stock, only 1 left!

0

6

White Outdoor 756-3106

Pulley
(Superseded to 756-04459A)

$33.99

$

In Stock, only 1 left!

0

7

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

9

White Outdoor 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

In Stock, only 3 left!

0

10

White Outdoor 756-3105

Idler Pulley 5.0

$73.99

$

In Stock, only 3 left!

0

11

White Outdoor 603-0690

Deck Spindle Ass'y

$

$

Not available

12

White Outdoor 603-0469A

Idler Bearing Arm Ass'y

Variations

White Outdoor 603-0469A-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 711-0242

Spacer

$4.49

$

In Stock, Qty 9

0

14

White Outdoor 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

15

White Outdoor 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

16

White Outdoor 736-3015

Flat Washer .469 ID x .875 OD
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 603-0407

Idler Pulley Ass'y 5.0

$

$

Not available

18

White Outdoor 736-0316

Flat Washer .78 ID x 1.59 OD

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 703-2849

Channel
(Superseded to 703-2849-0637)

Variations

White Outdoor 703-2849-0637

CHANNEL - POWDER BLACK (0637)

$

$

Not available

$

$

20

White Outdoor 703-2767

Front End Deck Bracket LH

Variations

White Outdoor 703-2767-0498

BRACKET DECK FRT LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2767-0637

BRACKET DECK FRT LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2767-0648

BRACKET DECK FRT LH - TECH GRAY (0648)

$

$

Not available

$

$

21

White Outdoor 703-2091A

Front Roller Bracket

Variations

White Outdoor 703-2091A-0498

Front Roller Bracket - OLD CUB YELLOW (0498)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2091A-0637

Front Roller Bracket - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

White Outdoor 703-2091A-0648

Front Roller Bracket - TECH GRAY (0648)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

22

White Outdoor 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

23

White Outdoor 711-3314

Roller Pin
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

24

White Outdoor 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

25

White Outdoor 703-2430

Front End Deck Bracket RH

Variations

White Outdoor 703-2430-0498

BRACKET-DECK RH FRONT END - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 2 left!

0

White Outdoor 703-2430-0637

BRACKET-DECK RH FRONT END - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2430-0648

BRACKET-DECK RH FRONT END - TECH GRAY (0648)

$

$

Not available

$

$

26

White Outdoor 703-2090

Reinforcement Disk RH

Variations

White Outdoor 703-2090-0498

DISK-RH REINFORCEMENT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2090-0637

DISK-RH REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2090-0716

DISK-RH REINFORCEMENT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

White Outdoor 703-2767

Front End Deck Bracket LH

Variations

White Outdoor 703-2767-0498

BRACKET DECK FRT LH - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2767-0637

BRACKET DECK FRT LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2767-0648

BRACKET DECK FRT LH - TECH GRAY (0648)

$

$

Not available

$

$

28

White Outdoor 703-2089A

Reinforcement Disk
(Superseded to 703-2089A-0637)

Variations

White Outdoor 703-2089A-0637

DISK-REINFORCEMENT - POWDER BLACK (0637)

$

$

Not available

$

$

29

White Outdoor 732-0971

Extension Spring

$23.99

$

In Stock, only 1 left!

0

30

White Outdoor 712-0375

Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

31

White Outdoor 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

32

White Outdoor 603-0325

Mower Deck Ass'y

Variations

White Outdoor 603-0325-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0325-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0325-0648

Housing Ass'y, 54" Mower Deck - TECH GRAY (0648)

$

$

Not available

$

$

33

White Outdoor 747-3297A

Deck Support Rod

$

$

Not available

34

White Outdoor 732-0395

Extension Spring .50 OD x 2.51 Lg
(Superseded to 932-0395)

$

$

Not available

35

White Outdoor 711-1103

Pin Roller

$

$

Not available

36

White Outdoor 703-2929

Deck Support Link

Variations

White Outdoor 703-2929-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2929-0637

No Longer Available LINK-DECK SUPPORT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2929-0648

Link, Deck Support - TECH GRAY (0648)

$

$

Not available

$

$

37

White Outdoor 736-0231

Flat Washer .344 ID x 1.125 OD

$4.99

$

In Stock, Qty 20+

0

38

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

41

White Outdoor 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 750-3243

Spacer

$

$

Not available

43

White Outdoor 703-3381

Idler Support Plate

Variations

White Outdoor 703-3381-0637

No Longer Available PLATE-IDLER SUPPOR - POWDER BLACK (0637)

$

$

Not available

$

$

44

White Outdoor 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 12

0

45

White Outdoor 736-0227

Flat Washer

$6.49

$

In Stock, Qty 13

0

46

White Outdoor 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

47

White Outdoor 712-3019

Hex Nut 7/16-14

$6.99

$

In Stock, only 1 left!

0

48

White Outdoor 703-2988

Support Plate

Variations

White Outdoor 703-2988-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

49

White Outdoor 710-3034

Carriage Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

50

White Outdoor 603-0144

Front Bar

Variations

White Outdoor 603-0144-0637

BAR-54" FRONT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0144-0498

BAR-54" FRONT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0144-0648

BAR-54" FRONT - TECH GRAY (0648)

$

$

Not available

$

$

51

White Outdoor 750-3119

Spacer

$11.99

$

In Stock, only 4 left!

0

52

White Outdoor 603-0149

Finger Guard
(Superseded to 703-3511B-0637)

Variations

White Outdoor 603-0149-0498

Finger Guard, Black - OLD CUB YELLOW (0498)

$69.99

$

In Stock, Qty 20+

0

White Outdoor 603-0149-0648

Finger Guard, Black - TECH GRAY (0648)

$69.99

$

In Stock, Qty 20+

0

$69.99

$

In Stock, Qty 20+

0

53

White Outdoor 703-2392

Bracket
(Superseded to 631-04070C)

Variations

White Outdoor 703-2392-0498

Deflector Chute Assembly - OLD CUB YELLOW (0498)

$122.99

$

In Stock, only 4 left!

0

White Outdoor 703-2392-0637

Deflector Chute Assembly - POWDER BLACK (0637)

$122.99

$

In Stock, only 4 left!

0

White Outdoor 703-2392-0648

Deflector Chute Assembly - TECH GRAY (0648)

$122.99

$

In Stock, only 4 left!

0

$122.99

$

In Stock, only 4 left!

0

54

White Outdoor 732-3070

Torsion Spring
(Superseded to 732-3070A)

$11.99

$

In Stock, only 4 left!

0

55

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

56

White Outdoor 710-3001

Hex Cap Screw 3/8-16 x .880

$7.49

$

In Stock, Qty 9

0

57

White Outdoor 703-2410

Castor Bracket

Variations

White Outdoor 703-2410-0498

BRKT-DECK WHEEL - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 703-2410-0637

BRKT-DECK WHEEL - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-2410-0648

BRKT-DECK WHEEL - TECH GRAY (0648)

$

$

Not available

$

$

58

White Outdoor 634-3159

Wheel Complete

$34.99

$

In Stock, Qty 20+

0

59

White Outdoor 750-3193

Spacer

$18.99

$

In Stock, Qty 20+

0

60

White Outdoor 711-3318

Hinge Pin

$

$

Not available

61

White Outdoor 731-3131

Deflector Chute
(Superseded to 931-3131A)

$108.99

$

In Stock, only 4 left!

0

62

White Outdoor 703-2093

Inner Baffle
(Superseded to 703-2093C)

Variations

White Outdoor 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$96.99

$

In Stock, only 2 left!

0

White Outdoor 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$96.99

$

In Stock, only 2 left!

0

$89.99

$

Usually ships in 3-6 days

0

63

White Outdoor 710-3178

Carriage Bolt 3/8 - 16

$4.49

$

In Stock, Qty 20+

0

64

White Outdoor 742-3013

Blade
(Superseded to 759-3820)

$35.99

$

In Stock, Qty 6

0

65

White Outdoor 754-3078

Belt
(Superseded to 954-3078)

$

$

Not available

White Outdoor 754-3083

Belt
(Superseded to 954-3083)

$147.99

$

Usually ships in 3-6 days

0

66

White Outdoor 747-3013

Support Pin

$22.99

$

In Stock, only 2 left!

0

67

White Outdoor 732-0802

Compression Spring

$4.49

$

In Stock, only 1 left!

0

68

White Outdoor 736-0160

Flat Washer .536 ID x .93 OD

$4.49

$

In Stock, only 2 left!

0

69

White Outdoor 715-3003

Spring Pin

$6.99

$

In Stock, Qty 7

0

70

White Outdoor 603-0351

Rear Hanger Bracket LH

Variations

White Outdoor 603-0351-0498

BRACKET. HANGER LH RR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0351-0637

No Longer Available BRKT. HANGER LH RR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0351-0648

BRACKET. HANGER LH RR - TECH GRAY (0648)

$

$

Not available

$

$

White Outdoor 603-0350

Rear Hanger Bracket RH

Variations

White Outdoor 603-0350-0498

BRACKET. HANGER RH RR - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0350-0637

BRACKET. HANGER RH RR - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0350-0648

Bracket, Rear Hanger RH - TECH GRAY (0648)

$

$

Not available

$

$

71

White Outdoor 703-2683

Rear Hanger Bracket Spacer

Variations

White Outdoor 703-2683-0637

SPACER-HANGER BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

72

White Outdoor 710-0693

Hex Cap Screw 3/8-16 x 4.5

$14.99

$

In Stock, only 2 left!

0
