ZT 2242 (2691306-00) - Simplicity 42" Zero-Turn Mower, 22hp Briggs & Stratton 42" Mower Deck - Clutch & Support Group Parts Diagram

42" Zero-Turn Mower, 22hp Briggs & Stratton

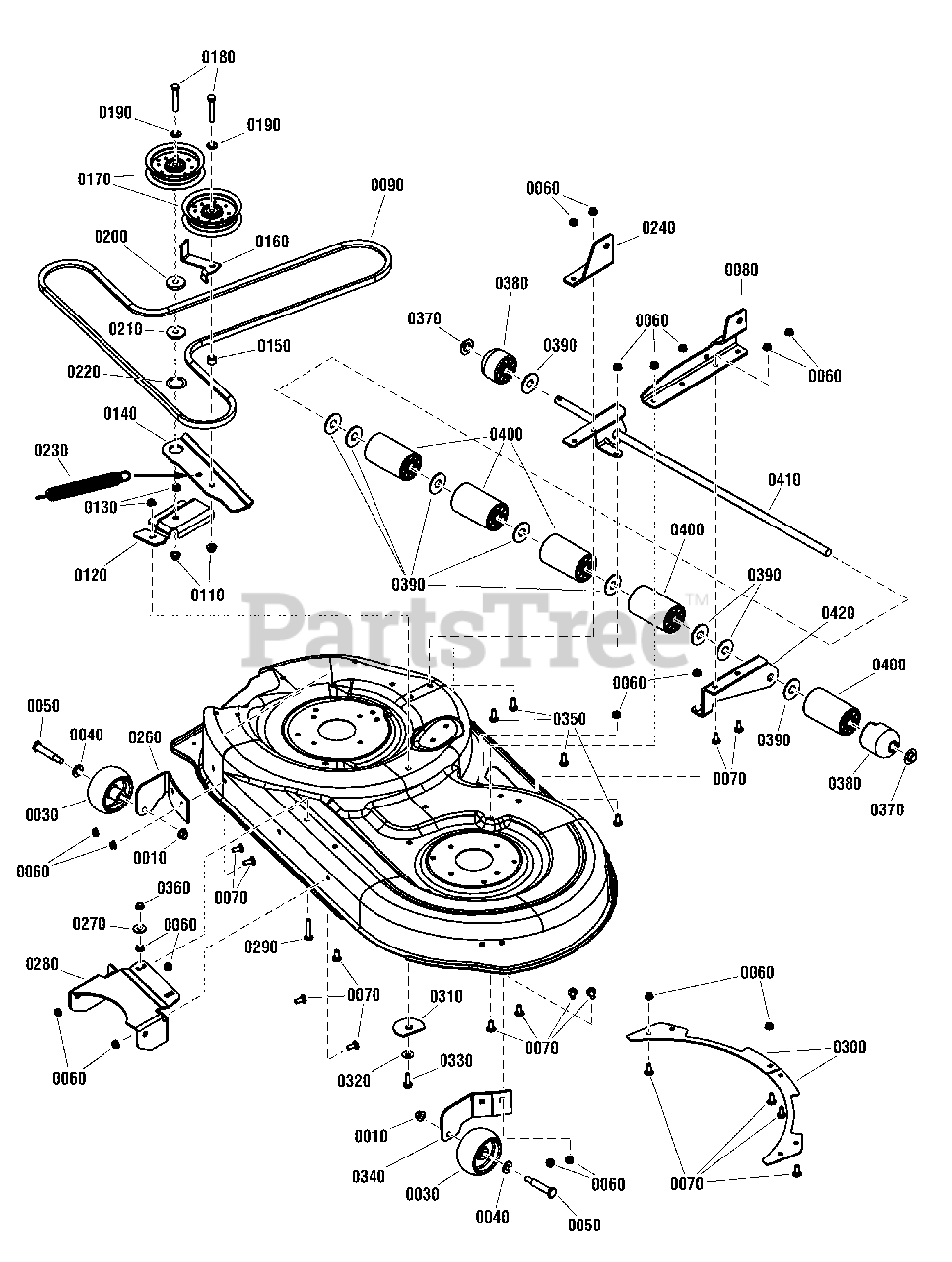

42" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

0010

Simplicity 703158

NUT, 3/8-16, Hex Flange, ESNA, Zinc/Clear

$3.49

$

Usually ships in 2-12 days

0

0030

Simplicity 1714760SM

WHEEL, 2.00" Wide, 3.88" Dia, 0.531" ID, Poly

$6.49

$

In Stock, Qty 20+

0

0040

Simplicity 703853

WASHER, 0.50 (0.51 ID X 1.00 OD X .10 THK) Black

$4.99

$

In Stock, Qty 20+

0

0050

Simplicity 2108765SM

BOLT-WHEEL, 3/8-16 X 2.781 - .750 YZ

$6.49

$

In Stock, Qty 20+

0

0060

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0070

Simplicity 703185

BOLT, 5/16-18 x 3/4, Carriage, Short Neck, G5, Zinc/Clear

$3.49

$

In Stock, Qty 16

0

0080

Simplicity 1753881BMYP

BRACKET, 42" LH Rear Deck Support

$51.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1732956SM

BELT, 118.0" EL, V-HA, Aramid Fiber

$75.99

$

In Stock, Qty 6

0

0110

Simplicity 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0120

Simplicity 7300569BMYP

BRACKET, 42" Deck Idler, Black

$

$

Not available

0130

Simplicity 703330

NUT, 5/16-18, Hex Flange Whiz-Lock, Zinc/Clear

$4.99

$

In Stock, Qty 14

0

0140

Simplicity 1734243BMYP

ARM, Idler

$

$

Not available

0150

Simplicity 7016719YP

SPACER, .750 OD X.390 ID X.50 L

$7.49

$

Usually ships in 2-12 days

0

0160

Simplicity 7301201BMYP

GUIDE, 42" Belt Idler, Black

$

$

Not available

0170

Simplicity 1736540YP

PULLEY, Idler, 46" & 52" Mowers

$35.99

$

In Stock, only 3 left!

0

0180

Simplicity 703872

SCREW, 3/8-16 X 2.250, Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0190

Simplicity 703590

WASHER, 3/8 (.406 X .816 X .65), Flat, Zinc/Clear

$3.99

$

In Stock, Qty 10

0

0200

Simplicity 1960534SM

WASHER, 3/8 (0.41 ID X 1.5 OD X .25 Thick) Black

$

$

Not available

0210

Simplicity 1714255SM

SPACER, .406" ID, 1.50" OD, .350" Thick, PM

$6.49

$

In Stock, Qty 17

0

0220

Simplicity 7031079YP

WASHER, Thrust (1.37 ID, 1.625 OD)

$6.99

$

In Stock, Qty 20+

0

0230

Simplicity 1733844SM

SPRING, 1.03" OD X 8.0 Long, .125" Dia. Wire, Clear

$22.99

$

Usually ships in 2-12 days

0

0240

Simplicity 1753882BMYP

BRACKET, 42" RH Rear Deck Support

$31.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1731402BMYP

BRACKET, Gauge Wheel Support, RH

$

$

Not available

0270

Simplicity 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0280

Simplicity 7301170BMYP

BRACKET, Front Hanger, 42", Black

$

$

Not available

0290

Simplicity 703175

BOLT, 5/16-18 X 1.750, Carriage, G5, Clear Zinc

$3.99

$

In Stock, only 2 left!

0

0300

Simplicity 721083BMYP

PLATE, Rear
(Superseded to 092426E701MA)

$10.99

$

In Stock, only 1 left!

0

0310

Simplicity 7091775SM

WASHER, .531 ID X 2.5 OD X .135 Thick, Flat Special Cut, YZ

$7.49

$

Usually ships in 2-12 days

0

0320

Simplicity 703878

WASHER, 13/32 x 7/8 x 5/64, Flat, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0330

Simplicity 703410

BOLT, 5/16-18 X 1.0 Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0340

Simplicity 1732258BMYP

BRACKET, Front Gauge Wheel, LH

$29.99

$

In Stock, Qty 8

0

0350

Simplicity 704065

BOLT, 5/16-18 X 0.875, Carriage Short Neck, ZC/CL

$4.49

$

In Stock, Qty 5

0

0360

Simplicity 704067

NUT, 5/16-18, Hex Flanged Center Lock, ZC/CL

$3.99

$

In Stock, Qty 14

0

0370

Simplicity 1960520SM

NUT, Push For .625 DIA Stud Capped, Blk
(Superseded to 771009)

$3.99

$

In Stock, Qty 20+

0

0380

Simplicity 1717675SM

ROLLER, .650 ID, 2.5" OD, 2.05" Long, Rounded End, Black Poly

$6.99

$

In Stock, Qty 20+

0

0390

Simplicity 1960035SM

WASHER, 5/8 (.64 ID X 1.75 OD X .11 Thick) Flat, Black

$4.49

$

In Stock, only 2 left!

0

0400

Simplicity 1668513SM

ROLLER, .652 ID, 2.50 OD, 4.10 LG, Black, Poly

$10.99

$

In Stock, Qty 20+

0

0410

Simplicity 1756227BMYP

SHAFT ASSEMBLY, Roller

$142.99

$

Usually ships in 2-12 days

0

0420

Simplicity 1756060BMYP

BRACKET, LH Roller Mount

$

$

Not available
