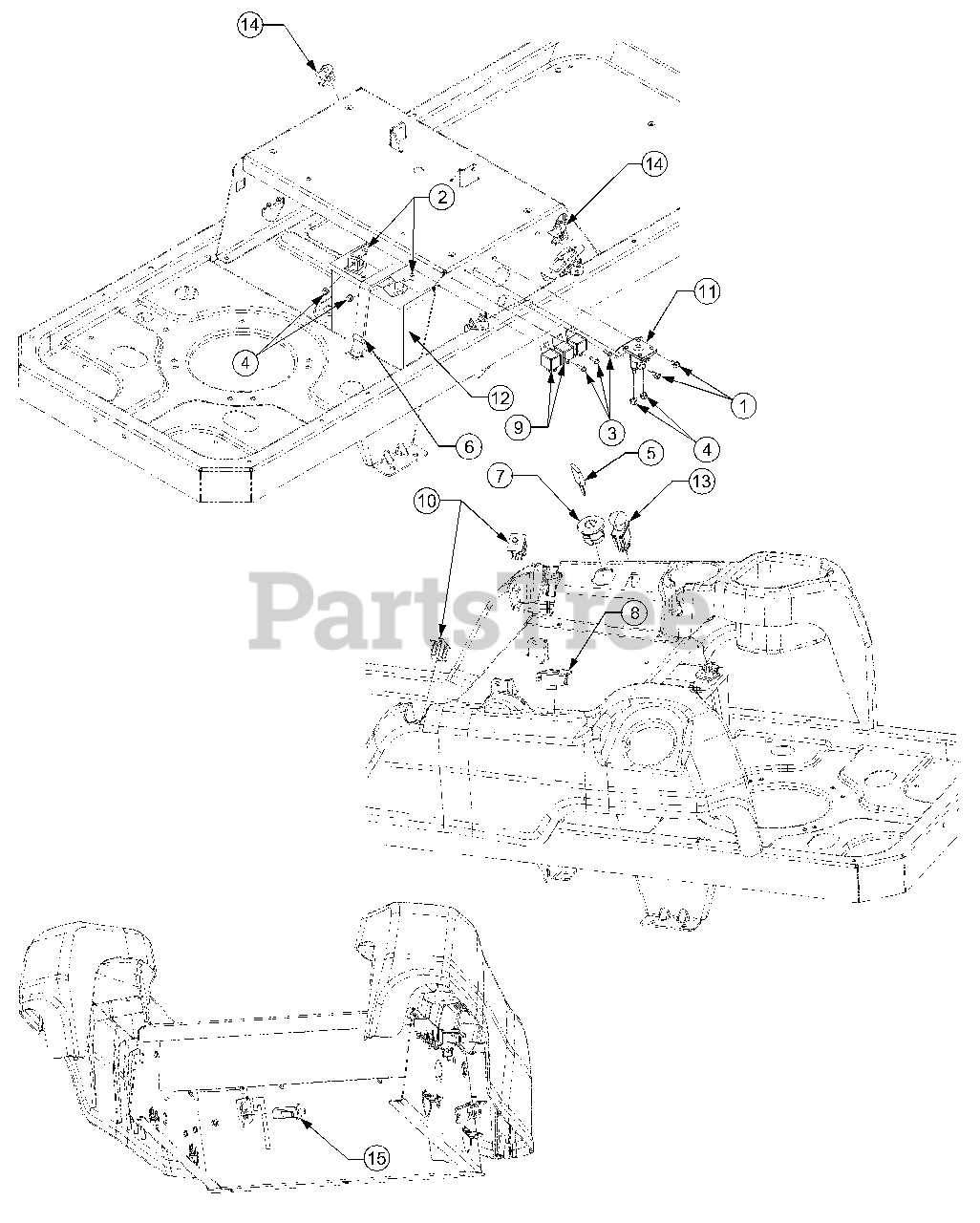

ZT-22 (17AA5A7P790) - White Outdoor 50" Zero-Turn Mower (2004) Electrical Parts Diagram

50" Zero-Turn Mower

Electrical Parts Diagram

  • Title

1

White Outdoor 710-0599

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-1237

Screw, Hex Wash. Hd. Tapp #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

4

White Outdoor 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 925-1745

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

6

White Outdoor 723-0467

Strap, Battery

$

$

Not available

White Outdoor 732-0696

Hook, Wire Rectangular

$4.99

$

Usually ships in 3-6 days

0

7

White Outdoor 725-04228

Switch, Ignition
(Superseded to 925-04228)

Note: (Replaces 725-04019); Use with 725-04229 Harness Adaptor or 725-04170A Wire Harness Refer to Service Advisory W-127

$39.99

$

In Stock, Qty 20+

0

8

White Outdoor 725-04036A

Meter, Hour
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

9

White Outdoor 725-04164

Relay
(Superseded to 925-04164)

$38.99

$

In Stock, only 2 left!

0

10

White Outdoor 725-04165

Switch, Dbl. Pole - Neutral
(Superseded to 925-04165)

$32.99

$

In Stock, only 4 left!

0

11

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

12

White Outdoor 725-1707D

Battery, 245 CCA
(Superseded to 925-1707D)

$

$

Not available

13

White Outdoor 725-1716

Switch, PTO
(Superseded to 925-1716A)

$73.99

$

In Stock, Qty 13

0

14

White Outdoor 725-3166

Switch, Snap Mount (N.C.) - Reverse
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

15

White Outdoor 725-3191A

Switch, Plunger, (N.O./N.O.) - Brake
(Superseded to 925-3191A)

$54.99

$

In Stock, only 4 left!

0

White Outdoor 725-04170A

Harness Assembly, Wire
(Superseded to 925-04170A)

Note: NOT SHOWN; (Replaces 725-04170)

$356.99

$

Usually ships in 3-6 days

0

White Outdoor 725-04187

Cable Wire, Red - Starter

Note: NOT SHOWN

$

$

Not available

White Outdoor 725-04188

Cable Wire, Black - to Ground

Note: NOT SHOWN

$

$

Not available

White Outdoor 625-04023

Cable Wire, Red - Solenoid
(Superseded to 625-04023A)

Note: NOT SHOWN

$

$

Not available

White Outdoor 725-04229

Harness Adaptor

Note: Use with 725-04170

$26.99

$

Usually ships in 3-6 days

0
