ZT-22 (17AA5A7P790) - White Outdoor 50" Zero-Turn Mower (2004) Console Parts Diagram

50" Zero-Turn Mower

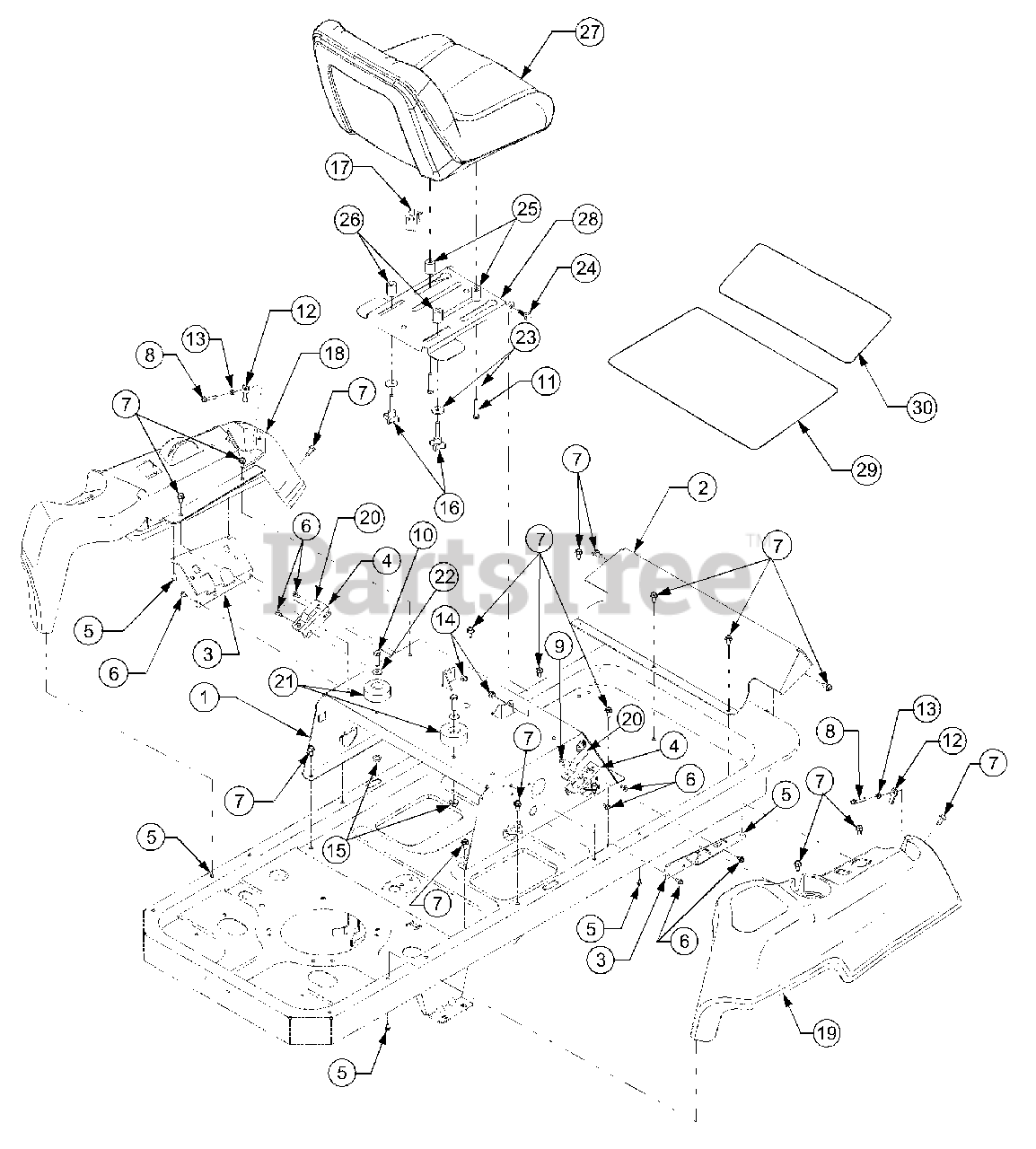

Console Parts Diagram

  • Title

1

White Outdoor 603-04143

Frame, Seat Box

Variations

White Outdoor 603-04143-0650

FRAME-SEAT BOX - RED METALLIC (0650)

$

$

Not available

White Outdoor 603-04143-0716

FRAME-SEAT BOX - CUB YELLOW-99 (0716)

$

$

Not available

$

$

777I22306

Graphic, Park Brake

$

$

Not available

White Outdoor 777S32354

Graphic, Warning
(Superseded to 977S32354)

$

$

Not available

777I22307

Graphic, Deck Height

$

$

Not available

2

White Outdoor 703-05373

Bracket, Foot Rest
(Superseded to 703-05373B)

Variations

White Outdoor 703-05373-0650

BRACKET FOOT REST - RED METALLIC (0650)

$

$

Not available

White Outdoor 703-05373-0716

BRACKET FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

$

$

777D08312

Graphic, White Outdoor

$

$

Not available

3

White Outdoor 703-05460

Bracket, Console Mounting

Variations

White Outdoor 703-05460-0650

BRACKET-CONSOLE MOUNTING - RED METALLIC (0650)

$

$

Not available

White Outdoor 703-05460-0716

BRACKET-CONSOLE MOUNTING - CUB YELLOW-99 (0716)

$

$

Not available

$

$

4

White Outdoor 703-05467

Bracket, Switch Mounting

Variations

White Outdoor 703-05467-0606

Switch Mounting Bracket - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 703-05467-0637

Switch Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

White Outdoor 703-05467-0638

Switch Mounting Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 703-05467-0650

Switch Mounting Bracket - RED METALLIC (0650)

$

$

Not available

White Outdoor 703-05467-0674

Switch Mounting Bracket - YARDMAN YELLOW (0674)

$

$

Not available

White Outdoor 703-05467-0716

Switch Mounting Bracket - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 703-05467-4015

Switch Mounting Bracket - FIRE RED (4015)

$

$

Not available

White Outdoor 703-05467-4021

Switch Mounting Bracket - CUB YELLOW 2 (4021)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

5

White Outdoor 710-04261

Screw, Hex Wash. Hd Tapp #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

6

White Outdoor 710-0599

Screw, Hex Wash. Hd. Tapp. 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-0778

Screw, Hex Wash. Hd. Tapp. 1/4-20 x 1.5

$4.49

$

In Stock, only 2 left!

0

9

White Outdoor 710-1268

Screw, Hex Wash. Hd Tapp #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 10

0

11

White Outdoor 710-0347

Screw, Hex Cap, 3/8-16 x 1,75 GR5

$5.49

$

In Stock, Qty 20+

0

12

White Outdoor 712-0185

Nut, U Type Speed

$

$

Not available

13

White Outdoor 712-0298

Nut, Hex Jam, 1/4-20 GR2
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

14

White Outdoor 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 720-04042

Knob, 5/16-18 x 1.75

$17.99

$

Usually ships in 3-6 days

0

17

White Outdoor 725-3166

Switch, Seat, Snap Mount, N.C.
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

18

White Outdoor 731-04662

Console, LH
(Superseded to 731-04662E)

$

$

Not available

777I22304

Graphic, Instruction ZT17

$

$

Not available

White Outdoor 777I22308

Graphic, Instruction ZT22

$

$

Not available

777D08311

Graphic, White Outdoor

$

$

Not available

777I22305

Graphic, Throttle Control - ZT17

$

$

Not available

777I22309

Graphic, Throttle Control - ZT22

$

$

Not available

19

White Outdoor 731-04663

Console, RH
(Superseded to 731-04663D)

$73.99

$

Usually ships in 3-6 days

0

777I22303

Graphic, Instruction

$

$

Not available

777D08310

Graphic, White Outdoor

$

$

Not available

20

White Outdoor 732-04200

Spring, Switch Actuator

$10.99

$

In Stock, Qty 6

0

21

White Outdoor 735-04041

Pad, Seat

$

$

Not available

22

White Outdoor 736-0267

Washer, Flat HT, .395 x .87 x .06

$4.49

$

In Stock, only 1 left!

0

23

White Outdoor 736-0247

Washer, Flat HDN, .406 x 1.25 x .157

$9.49

$

In Stock, Qty 15

0

24

White Outdoor 738-0296

Screw, Shoulder, .437 x .268: 5/16-18

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 750-04301

Spacer, Seat Adjustment

$30.99

$

Usually ships in 3-6 days

0

26

White Outdoor 750-04302

Spacer, Seat Mounting

$22.99

$

Usually ships in 3-6 days

0

27

White Outdoor 757-04023

Seat
(Superseded to 957-04023)

$

$

Not available

28

White Outdoor 783-04081A

Bracket, Seat Pivot

Variations

White Outdoor 783-04081A-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

White Outdoor 783-04081A-4008

BRACKET-SEAT PIVOT - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$33.99

$

Usually ships in 3-6 days

0

29

White Outdoor 723-04020

Pad, Abrasive Foot Plate

$

$

Not available

30

White Outdoor 723-04021

Pad, Abrasive Toe Plate

$36.99

$

Usually ships in 3-6 days

0
