ZT 21546 (2691140-00) - Simplicity 46" Zero-Turn Mower, 21.5hp Kawasaki Seat, Body & Fuel Tank Group Parts Diagram

46" Zero-Turn Mower, 21.5hp Kawasaki

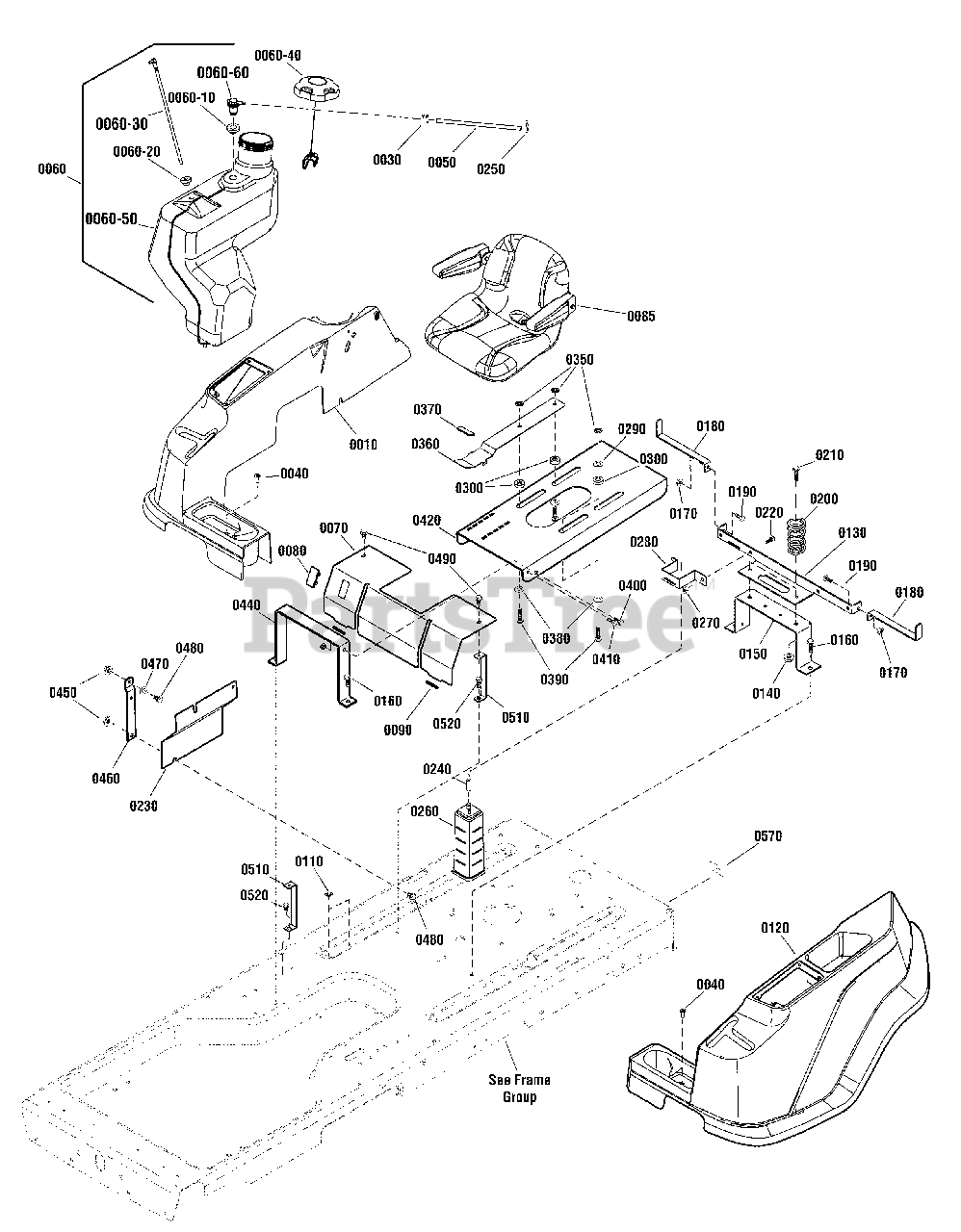

Seat, Body & Fuel Tank Group Parts Diagram

  • Title

0010

Simplicity 7103775YP

FENDER, RH

$347.99

$

Usually ships in 2-12 days

0

0030

Simplicity 7105075YP

CLAMP, Hose, .375 ID., .31 Wide

$6.99

$

Usually ships in 2-12 days

0

0040

Simplicity 7091246YP

SCREW, 1/4-20 x 3/4 Pan Head Self-Tap (Torx) BZ
(Superseded to 770003)

$3.99

$

In Stock, Qty 20+

0

0050

Simplicity 7200141YP

HOSE, Vapor, (5MM IS x 9MM OD x 16 Long)

$12.99

$

Usually ships in 2-12 days

0

0060

Simplicity 7104646YP

ASSEMBLY, Emissions Fuel Tank (incl. 6 items shown below)

$292.99

$

Usually ships in 2-12 days

0

0060-10

Simplicity 209043YP

GROMMET

$

$

Not available

0060-20

Simplicity 1726400SM

BUSHING, Fuel Tank, Red Rubber
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

0060-30

Simplicity 7103536YP

ASSEMBLY, Elbow, Pickup Tube
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

0060-40

Simplicity 7104639YP

CAP, Fuel, Emissions, 3-1/2 w/Tether

$48.99

$

Usually ships in 2-12 days

0

0060-50

Simplicity 7103817YP

ASSEMBLY, Tank & Tube

$

$

Not available

0060-60

Simplicity 7104638YP

ASSEMBLY, Remote Vent, No Valve

$

$

Not available

0070

Simplicity 7301216BMYP

COVER, Battery, w/Bracket Holes, Black

$

$

Not available

0080

Simplicity 1722611SM

PLUG, Hole, 0.85 X 1.73, Black, ABS

$6.99

$

In Stock, only 1 left!

0

0085

Simplicity 1754213YP

SEAT, 15 Back (Black)
(Superseded to 84003801)

$372.99

$

Usually ships in 2-12 days

0

0090

Simplicity 7104514YP

STRIP, Trim, 1.50"

$3.49

$

Usually ships in 2-12 days

0

0110

Simplicity 703986

RETAINER, 3/8", Pushnut, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 7103776YP

FENDER, LH

$302.99

$

Usually ships in 2-12 days

0

0130

Simplicity 7301107BMYP

BRACKET, Seat & Fender Support

$26.99

$

Usually ships in 2-12 days

0

0140

Simplicity 703164

NUT, 5/16-18, Hex Center Lock, GRB, Zinc/Clear

$3.49

$

In Stock, Qty 19

0

0150

Simplicity 7043316BMYP

BRACKET, Seat Support

$19.99

$

Usually ships in 2-12 days

0

0160

Simplicity 703950

SCREW, 3/8-16 X .750,Washered Thread Roll, ZC/CL

$5.49

$

In Stock, only 1 left!

0

0170

Simplicity 722396

NUT, 5/16-18, Hex Nylock, Zinc/Clear
(Superseded to 15X123MA)

$3.99

$

Usually ships in 2-12 days

0

0180

Simplicity 7301101BMYP

BRACKET, Fender Support

$11.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1659965SM

SCREW, 5/16-18 x 1 Hex Head Cap, GR 5, Zinc/Clear

$36.99

$

Usually ships in 2-12 days

0

0200

Simplicity 7103425YP

SPRING, 3.62 Compression

$17.99

$

Usually ships in 2-12 days

0

0210

Simplicity 703410

BOLT, 5/16-18 X 1.0 Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0220

Simplicity 703576

BOLT, 1/4-20 X .75, Carriage, GR5, Zinc/Clear
(Superseded to 703101)

$3.99

$

In Stock, only 3 left!

0

0230

Simplicity 7301126BMYP

PLATE, Side, RH

$26.99

$

Usually ships in 2-12 days

0

0240

Simplicity 7014361YP

CAP, Lift Rod, .343 ID X 1" Long

$4.49

$

Usually ships in 2-12 days

0

0250

Simplicity 795230

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

0260

Simplicity 7101425YP

CANISTER

$45.99

$

In Stock, only 1 left!

0

0270

Simplicity 703232

NUT, 1/4-20, Nylock, GR A, Zinc/Clear

$4.49

$

In Stock, Qty 18

0

0280

Simplicity 7301099BMYP

BRACKET, Canister, Vapor Black

$

$

Not available

0290

Simplicity 7011763SM

WASHER, 5/16" I.D. 1" O.D. Fender

$4.49

$

In Stock, only 3 left!

0

0300

Simplicity 7103920YP

SPACER, Adjustable Seat

$3.99

$

Usually ships in 2-12 days

0

0350

Simplicity 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0360

Simplicity 7103673BMYP

LATCH, Seat

$18.99

$

Usually ships in 2-12 days

0

0370

Simplicity 885215YP

COVER, Seat Adjustment Lever

$4.99

$

Usually ships in 2-12 days

0

0380

Simplicity 703298

WASHER, 5/16 (.34 ID X 1 OD X .13 THK) GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0390

Simplicity 1933689SM

SCREW, 5/16-18 x 1-1/2 Hex Head Flange Lock, Black

$4.49

$

Usually ships in 2-12 days

0

0400

Simplicity 703839

BOLT, 5/16-18 X .750, Hex Washer Head Shoulder, Zinc/Clear

$5.49

$

In Stock, only 3 left!

0

0410

Simplicity 7091198SM

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap, BP

$4.49

$

Usually ships in 2-12 days

0

0420

Simplicity 7301095BMYP

PLATE, Adjustable Seat

$53.99

$

Usually ships in 2-12 days

0

0440

Simplicity 7301070BMYP

BRACKET, Seat

$20.99

$

Usually ships in 2-12 days

0

0450

Simplicity 703333

NUT, 3/8-16, Flanged Lock, GR5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0460

Simplicity 7301110BMYP

BRACKET, Fuel Tank Support

$11.99

$

Usually ships in 2-12 days

0

0470

Simplicity 704015

WASHER, 5/16, Flat SAE, Type B, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0480

Simplicity 703237

SCREW, 3/8-16 X .750, Hex Head Cap, Zinc/Clear

$4.99

$

Usually ships in 2-12 days

0

0490

Simplicity B4300GS

SCREW, 1/4-20X.500, Hex HD, Self-Tap, Zinc/Clear
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0510

Simplicity 7301217BMYP

BRACKET, Battery Cover, Black

$

$

Not available

0520

Simplicity 025X15MA

SCREW, 3/8-16 X 3/4, Hex Washer Head Rolled Thread
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

0570

Simplicity 1756161YP

DECAL, EVAP, 50 State, 285Z/ZT2000

$9.99

$

Usually ships in 2-12 days

0
