ZT-2150 - White Outdoor 48" Zero-Turn Mower Seat Assembly Parts Diagram

48" Zero-Turn Mower

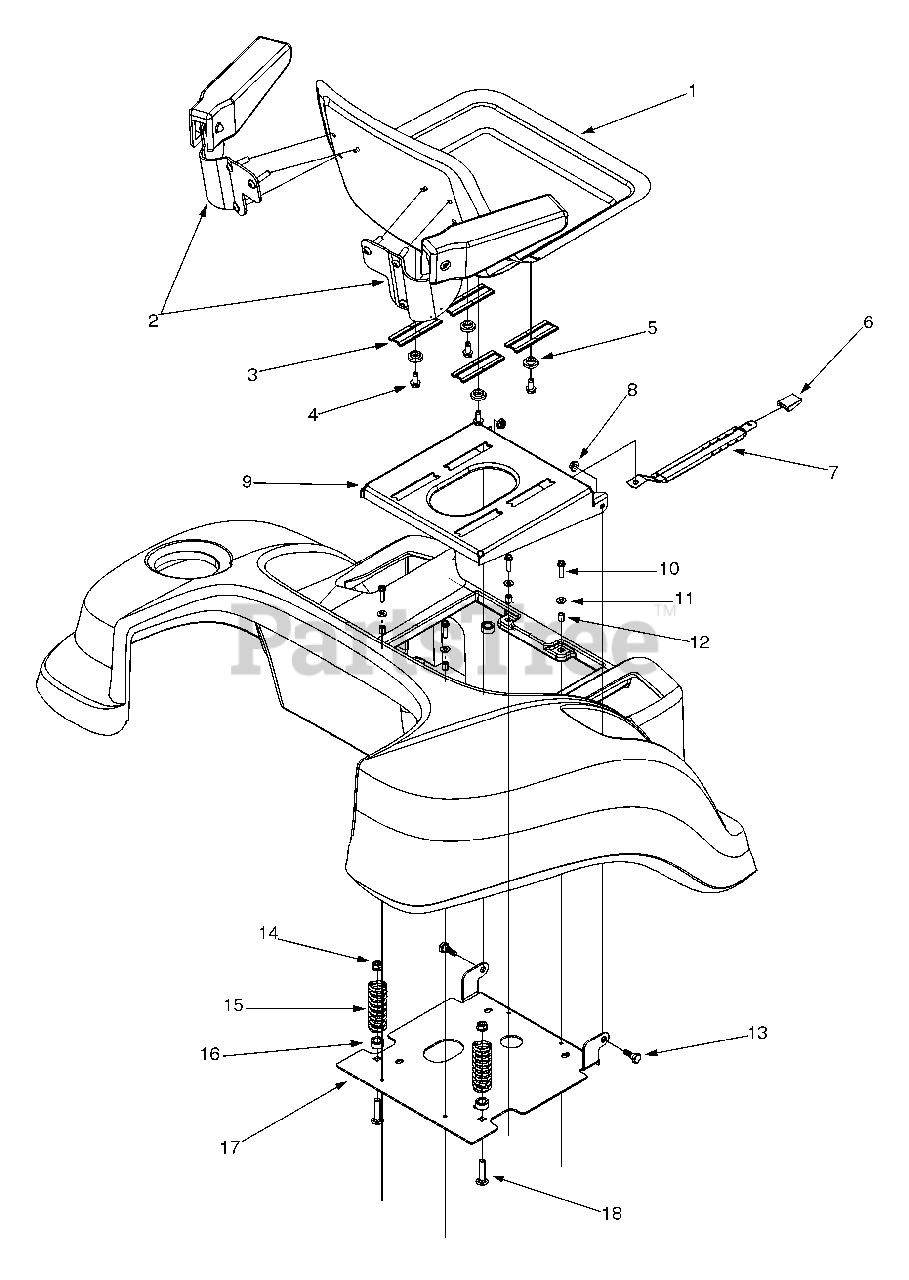

Seat Assembly Parts Diagram

  • Title

1

MTD 957-0375B

Seat Ass'y

$

$

Not available

2

MTD 757-3009

Seat Arm Ass'y

Note: (If Equipped)

$

$

Not available

3

MTD 731-3154

Seat Slide

$

$

Not available

4

MTD 710-1260A

Hex Washer Screw 5/16-16 x .750

$3.99

$

In Stock, Qty 20+

0

5

MTD 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 18

0

6

MTD 720-0426

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

7

MTD 732-3098

Spring Index

$

$

Not available

8

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 603-0294-0637

Seat Base Bracket Ass'y

$

$

Not available

10

MTD 710-0786

Hex Washer Screw 1/4-20 x 1.0

$16.99

$

Usually ships in 3-6 days

0

11

MTD 936-0463

Flat Washer .25 x .630
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

12

MTD 750-3274

Spacer

Note: NLA

$

$

Currently unavailable

13

MTD 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

14

MTD 912-3005

Flange Lock Nut 3/8-16
(Superseded to 712-3005)

$6.99

$

Usually ships in 3-6 days

0

15

MTD 732-3080A

Compression Spring

$13.99

$

In Stock, Qty 11

0

16

MTD 750-0664

Spacer

$6.99

$

In Stock, only 2 left!

0

17

MTD 603-0730-0637

Seat Plate Ass'y

$

$

Not available

18

MTD 710-0560

Hex Carriage Screw 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0
