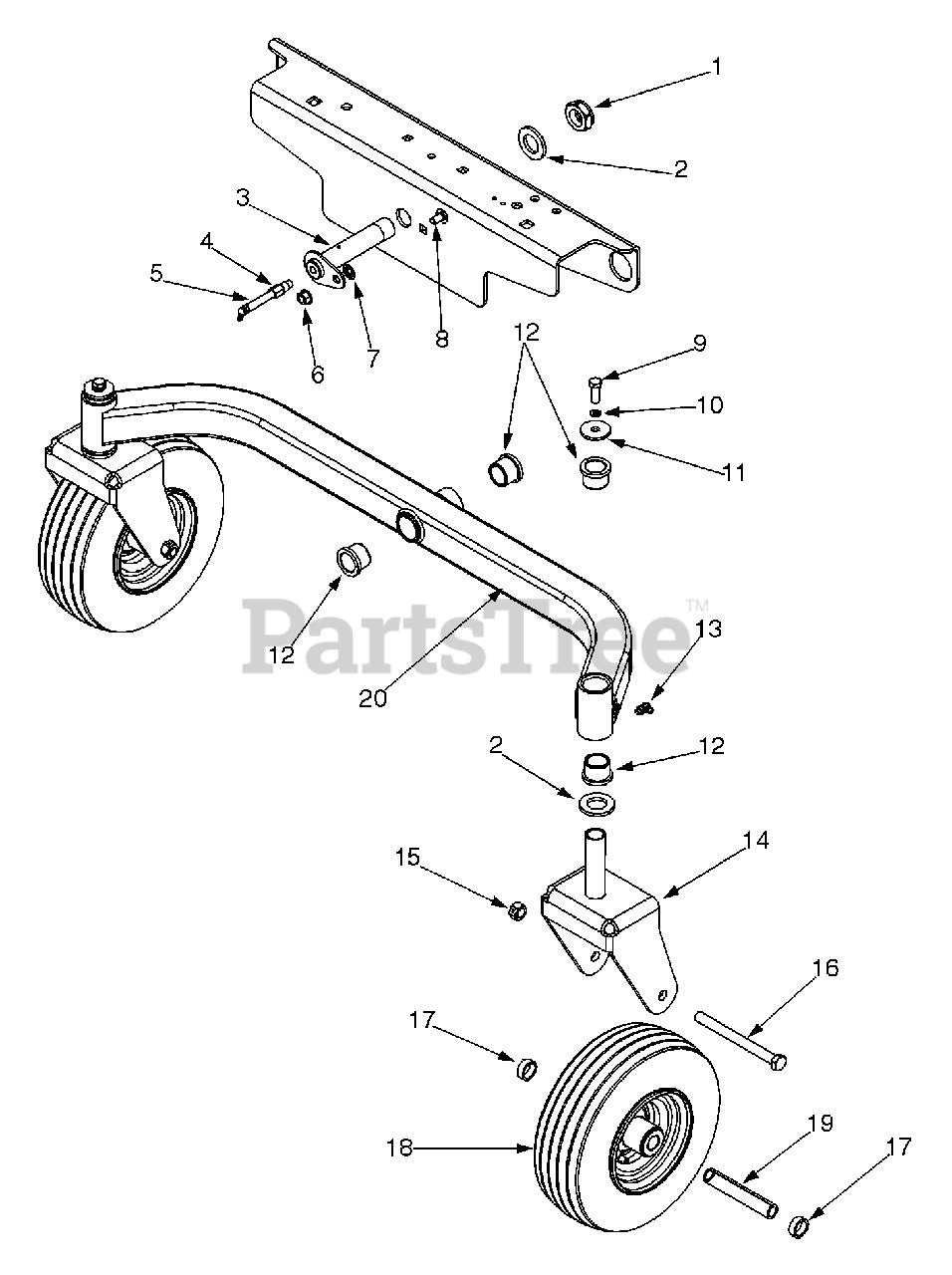

ZT-2150 - White Outdoor 48" Zero-Turn Mower Front Axle And Tire Parts Diagram

48" Zero-Turn Mower

Front Axle And Tire Parts Diagram

  • Title

1

MTD 01000678

Hex Lock Nut, 1.0-14
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

2

MTD 936-0274

Flat Washer
(Superseded to 736-0274)

$8.99

$

In Stock, Qty 14

0

3

MTD 603-0389A

Pin Ass'y, Pivot

$

$

Not available

4

MTD 937-3090

Adapter, 1/8 NPTF x 1/8 NPTF

$

$

Not available

5

MTD 737-3072

Grease Fitting, 65° w/Extension

Note: NLA

$

$

Not available

6

MTD 912-0431

Hex Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

7

MTD 712-0229

Push Nut, 3/8 ID

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

MTD 936-0169

Lock Washer 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

11

MTD 936-0227

Flat Washer 3/8 x 1.5
(Superseded to 736-0227)

$

$

Not available

12

MTD 931-0374

Flange Bearing 1.0 ID

$7.49

$

In Stock, only 3 left!

0

13

MTD 937-0280

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

14

MTD 603-0363

Castor Wheel Bracket
(Superseded to 603-0363A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-0363-0498

Caster Wheel Yoke Kit - OLD CUB YELLOW (0498)

$114.99

$

Usually ships in 3-6 days

0

MTD 603-0363-0637

Caster Wheel Yoke Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

MTD 603-0363-0648

Caster Wheel Yoke Kit - TECH GRAY (0648)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

15

MTD 912-0239

Hex Center Lock Nut 1/2-20
(Superseded to 712-0239)

$

$

Not available

16

MTD 710-0506

Hex Cap Screw, 1/2-20 x 5.5

$10.99

$

In Stock, only 2 left!

0

17

MTD 950-0456

Spacer, .79 ID x .347 Lg
(Superseded to 750-0456)

$4.49

$

In Stock, Qty 20+

0

18

MTD 634-3164

Wheel Comp 11.0 x 4.0 x 5.0

$

$

Not available

19

MTD 750-3197A

Wheel Spacer

$21.99

$

In Stock, Qty 13

0

20

MTD 903-0382

Front Axle Ass'y

Variations

MTD 903-0382-0498

No Longer Available AXLE ASM: - OLD CUB YELLOW (0498)

$

$

Not available

MTD 903-0382-0637

AXLE ASM: FRONT - POWDER BLACK (0637)

$

$

Not available

MTD 903-0382-0648

AXLE ASM: FRONT - TECH GRAY (0648)

$

$

Not available

$

$
