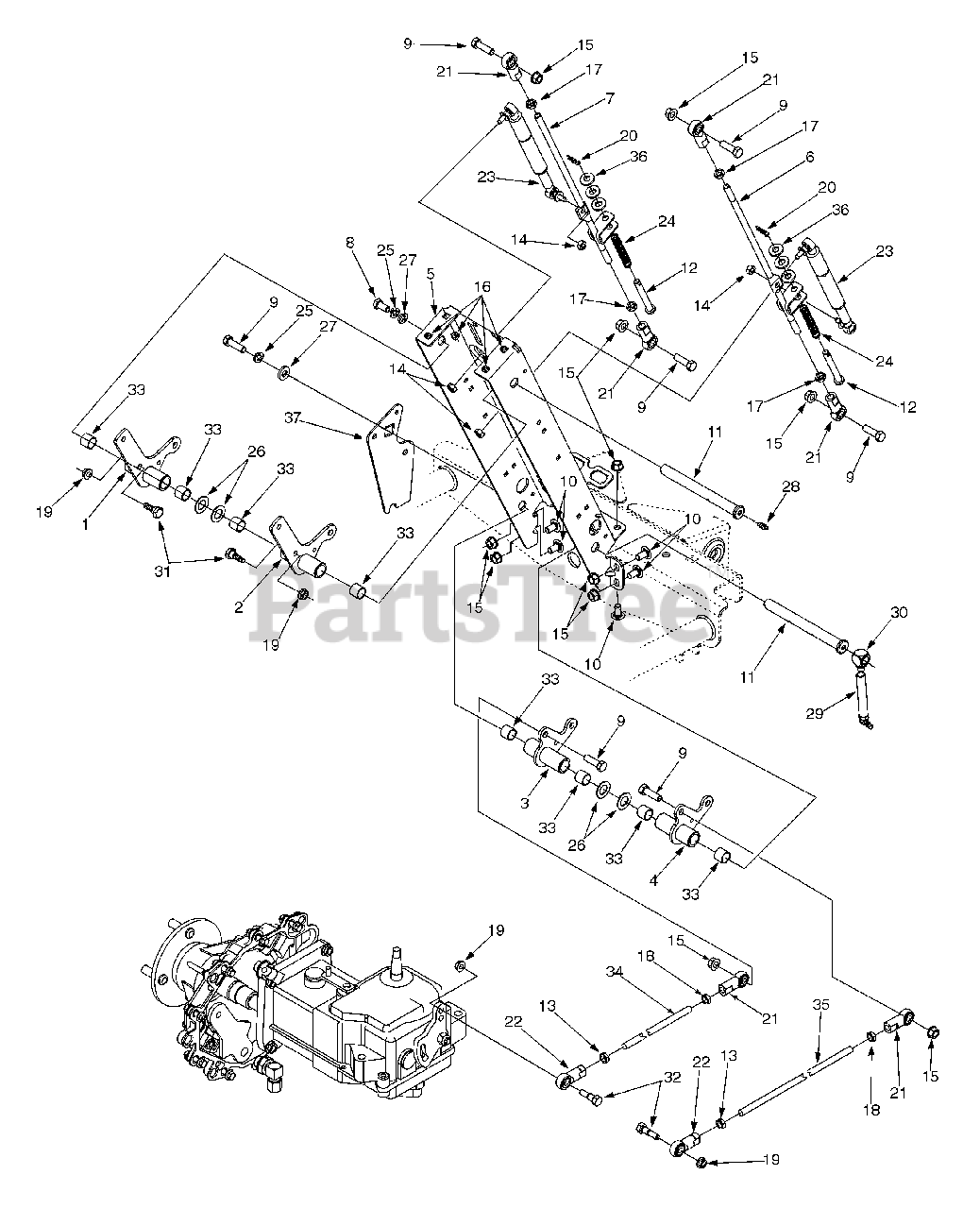

ZT-2150 - White Outdoor 48" Zero-Turn Mower Drive Controls And Support Tower Parts Diagram

48" Zero-Turn Mower

Drive Controls And Support Tower Parts Diagram

  • Title

1

MTD 603-0340-0637

Bellcrank Ass'y Upper LH

$

$

Not available

2

MTD 603-0341

Bellcrank Ass'y Upper RH

Note: NLA

Variations

MTD 603-0341-0637

No Longer Available BELCRNK AS - POWDER BLACK (0637)

$

$

Not available

$

$

3

MTD 603-0342-0637

Bellcrank Ass'y Lower LH

$

$

Not available

4

MTD 603-0343-0637

Bellcrank Ass'y Lower RH

$

$

Not available

5

MTD 603-0647

Support Ass'y Tower

Note: NLA

Variations

MTD 603-0647-0637

No Longer Available SUPPORT AS - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 603-0410

Rod Ass'y Control RH

Note: NLA

$

$

Not available

7

MTD 603-0411

Rod Ass'y Control LH

Note: NLA

$

$

Not available

8

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

9

MTD 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

11

MTD 711-1111

Control Shaft

$

$

Not available

12

MTD 711-1124

Pin

Note: NLA

$

$

Not available

13

MTD 712-0312A

Hex Jam Nut LH 3/8-24

$3.99

$

Usually ships in 3-6 days

0

14

MTD 712-0365

Hex Center Lock Nut

$

$

Not available

15

MTD 912-0431

Hex Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

16

MTD 712-0453

Retainer 1/4-20

$

$

Not available

17

MTD 712-0711

Hex Jam Nut 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

MTD 912-3001

Hex Jam Nut 3/8-24

$6.99

$

In Stock, Qty 17

0

19

MTD 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

MTD 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

21

MTD 923-0420

Spherical Rod End RH 3/8-24

$

$

Not available

22

MTD 923-0421

Spherical Rod End LH 3/8-24

$

$

Not available

23

MTD 727-3113

Damper Cylinder

$207.99

$

Usually ships in 3-6 days

0

24

MTD 732-3084

Spring Compression

Note: NLA

$

$

Not available

25

MTD 936-0169

Lock Washer 3/6
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0539

Thrust Washer .625 ID x 1.12 OD

Note: NLA

$

$

Not available

27

MTD 936-3004

Flat Washer.406 ID x.875 OD
(Superseded to 736-3004)

$

$

Not available

28

MTD 937-0280

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

29

MTD 737-3072

Grease Fitting w/Tube

Note: NLA

$

$

Not available

30

MTD 737-3073

Adapter 1/4-20

Note: NLA

$

$

Not available

31

MTD 938-0296

Shoulder Bolt .437 Dia. x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

32

MTD 738-3153

Shoulder Bolt

Note: NLA

$

$

Not available

33

MTD 741-3063

Sleeve Bearing

$17.99

$

Usually ships in 3-6 days

0

34

MTD 747-3281

Control Rod LH 31-5/8

Note: NLA

$

$

Not available

35

MTD 747-3282

Control Rod RH 35-3/8

Note: NLA

$

$

Not available

36

MTD 936-0300

Flat Washer .406 ID x .87 OD
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

37

MTD 703-3405

Plate Support

Note: NLA

$

$

Not available
