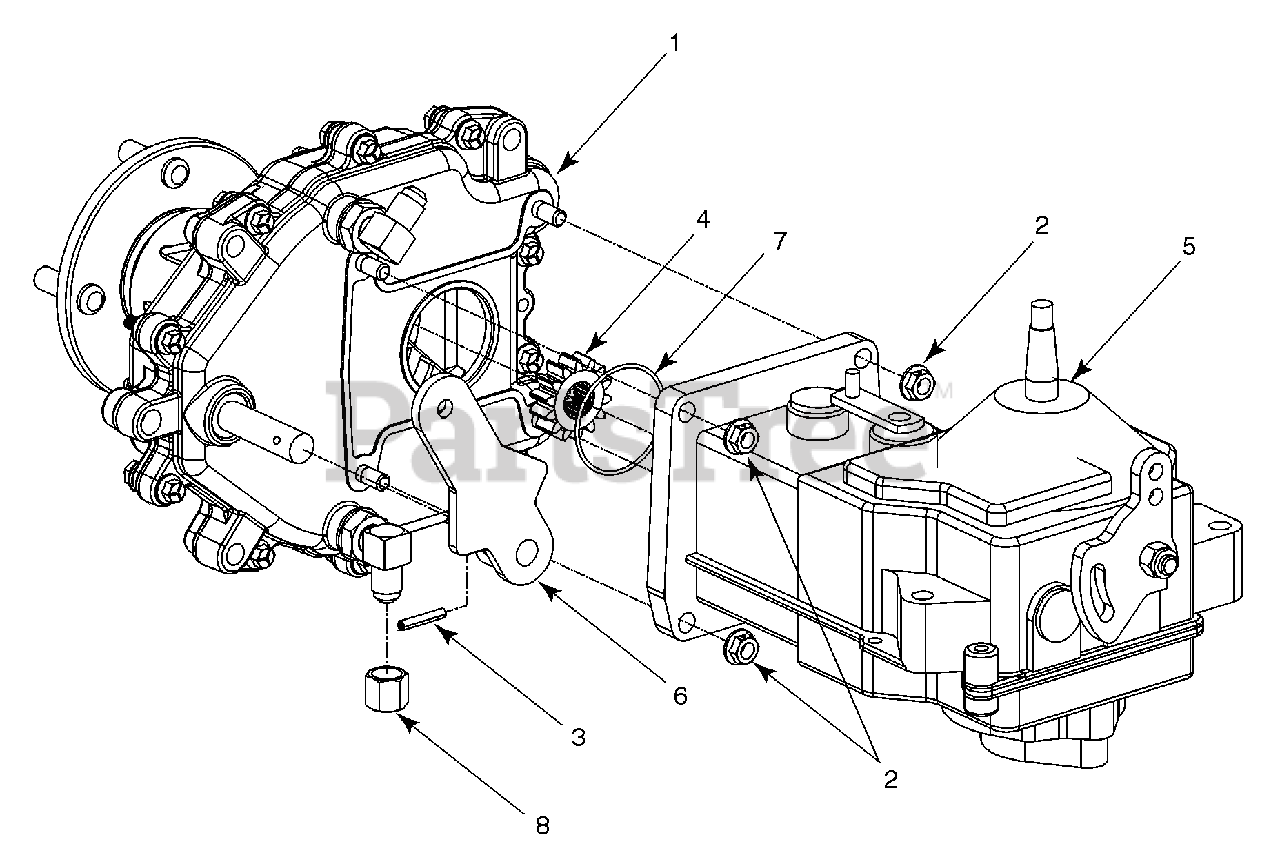

ZT-2150 - White Outdoor 48" Zero-Turn Mower Drive Assembly Complete Parts Diagram

48" Zero-Turn Mower

Drive Assembly Complete Parts Diagram

  • Title
1

MTD 618-3110A

Drive Ass'y Complete

Note: NLA

$

$

Not available

2

MTD 712-3004A

Hex Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 915-0136

Spirol Pin 3/16 x 1.25

$

$

Not available

4

MTD 917-3396

Spur Gear 14T

$

$

Not available

5

MTD 917-3455

Hydro Transmission

$

$

Not available

6

MTD 718-3053

Parking Brake Lever

$

$

Not available

7

MTD 721-0343

O-Ring 2.0 Dia.

$

$

Not available

8

MTD 927-3125

Cap Nut 3/8

$

$

Not available
