ZT-2150 - White Outdoor 48" Zero-Turn Mower Deck Lift Assembly Parts Diagram

48" Zero-Turn Mower

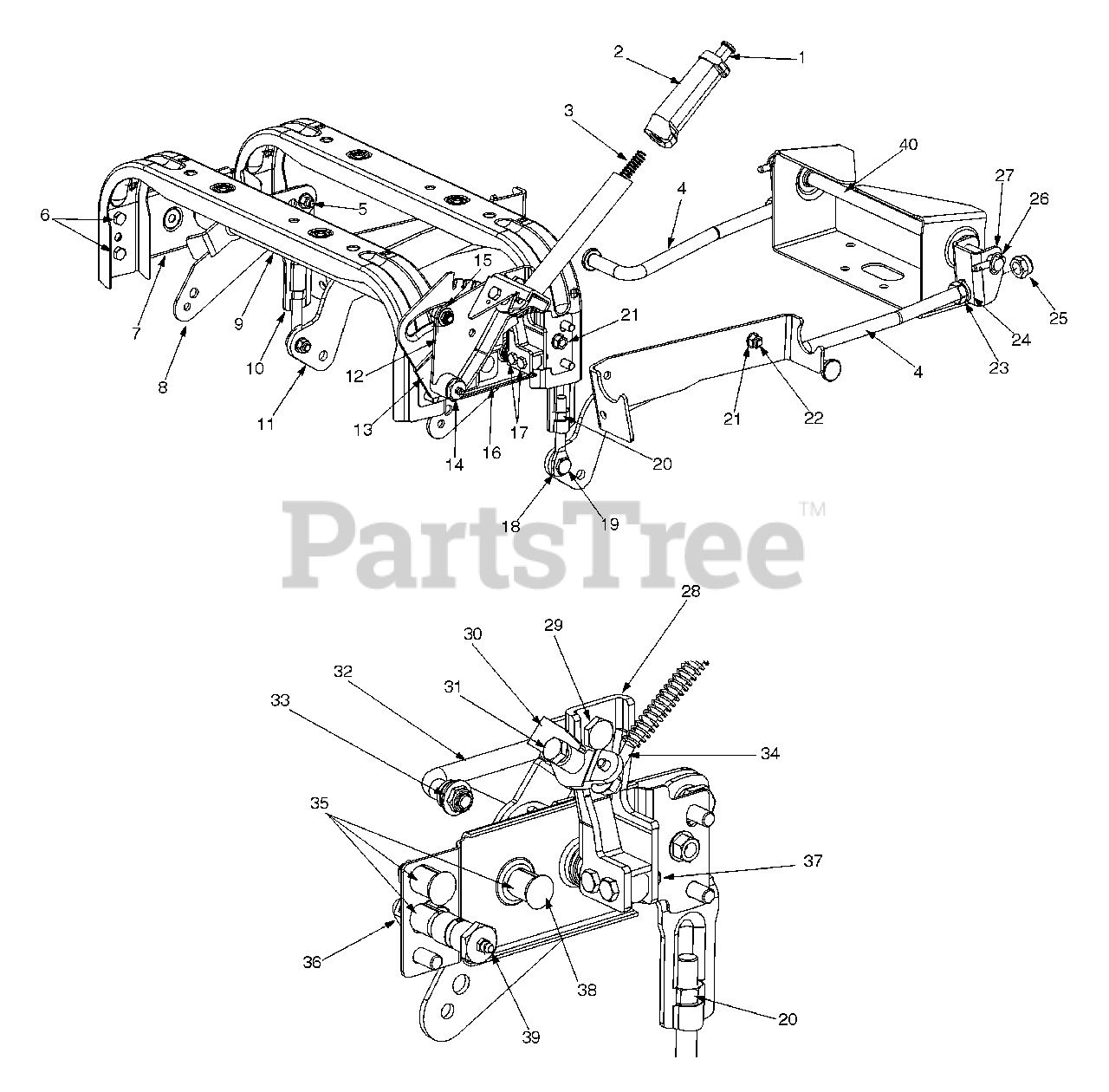

Deck Lift Assembly Parts Diagram

  • Title

1

MTD 711-0642A

Handle Button

$7.99

$

In Stock, Qty 12

0

2

MTD 731-3158

Handle Deck Lift Grip

$17.99

$

Usually ships in 3-6 days

0

3

MTD 732-3097

Compression Spring

$14.99

$

In Stock, only 4 left!

0

4

MTD 747-3405

Front Lift Rod

$

$

Not available

5

MTD 938-0507B

Shoulder Screw .500 Dia x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

6

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

7

MTD 603-0422

Shaft Mounting Bracket - LH

Note: NLA

$

$

Not available

8

MTD 603-0370

Pivot Link Bearing Ass'y

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-0370-0637

No Longer Available LINK ASSY:PIVOT - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

MTD 603-0370-0498

No Longer Available LINK ASM:P - OLD CUB YELLOW (0498)

$

$

Not available

$

$

9

MTD 603-0313-0637

Lift Shaft Ass'y

$

$

Not available

10

MTD 703-2621

Adjustable Deck Lift Link

Note: NLA

Variations

MTD 703-2621-0637

No Longer Available LINK LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

11

MTD 703-2780

Lift Parallel Link

$

$

Not available

12

MTD 603-0327

Handle Bearing Ass'y

Note: NLA

Variations

MTD 603-0327-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 603-0327-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 603-0327-0648

Handle Ass'y, Lift - TECH GRAY (0648)

$

$

Not available

$

$

13

MTD 703-2772

Deck Height Adjustable Plate

Note: NLA

Variations

MTD 703-2772-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2772-0648

Plate, Deck Height Adjustment - TECH GRAY (0648)

$

$

Not available

$

$

14

MTD 738-3150

Lift Handle Shoulder Screw

Note: NLA

$

$

Not available

15

MTD 912-3020

Top Lock Jam Nut 3/8-16

$6.49

$

In Stock, Qty 10

0

16

MTD 603-0423

Shaft Mounting Bracket - RH

Note: NLA

$

$

Not available

17

MTD 710-3083

Hex Cap Screw 5/16-18 x 1.375

$4.49

$

Usually ships in 3-6 days

0

18

MTD 711-0773

Eye Bolt Adjustable Link

$

$

Not available

19

MTD 938-0380

Shoulder Screw 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

20

MTD 912-0206

Hex Nut 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

21

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

22

MTD 02000393

Shoulder Screw 3/8-16 .56 x .27
(Superseded to 738-05008)

$8.49

$

In Stock, only 3 left!

0

23

MTD 912-3015

Jam Nut 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, only 2 left!

0

24

MTD 936-0158

Lock Washer 5/6

$4.49

$

In Stock, Qty 11

0

25

MTD 712-3016

Lock Hex Nut 5/8-11

$6.99

$

In Stock, Qty 13

0

26

MTD 911-3266

Clevis Pin
(Superseded to 711-3266)

$15.99

$

In Stock, Qty 7

0

27

MTD 703-3407

Front Lift Bracket

Note: NLA

Variations

MTD 703-3407-0637

No Longer Available BRACKET-FR - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 603-0401-0637

Lift Arm Ass'y

$

$

Not available

29

MTD 938-0183

Shoulder Screw 3/8-16 .50 x .21

$

$

Not available

30

MTD 603-0257

Fork Lift Ass'y

Variations

MTD 603-0257-0637

Fork Lift Assembly - POWDER BLACK (0637)

$94.99

$

In Stock, only 1 left!

0

$94.99

$

In Stock, only 1 left!

0

31

MTD 710-3011

Hex Cap Screw 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

32

MTD 747-3276

Lift Link Rod

$

$

Not available

33

MTD 936-0300

Flat Washer .406 x .875
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

34

MTD 747-3267

Handle Arm

Note: NLA

$

$

Not available

35

MTD 750-3200

Spacer .448 ID x .688 OD

Note: NLA

$

$

Not available

36

MTD 712-0290

Lock Nut 7/16-14

$4.99

$

In Stock, Qty 11

0

37

MTD 912-3009

Hex Center L-Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

38

MTD 710-0431

Hex Screw 3/8-16 x 1.50

$4.99

$

Usually ships in 3-6 days

0

39

MTD 937-0280

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

40

MTD 747-3406

Front Mounting Rod Bracket

$

$

Not available
