ZT-2150 - White Outdoor 48" Zero-Turn Mower 48-Inch Deck Assembly Parts Diagram

48" Zero-Turn Mower

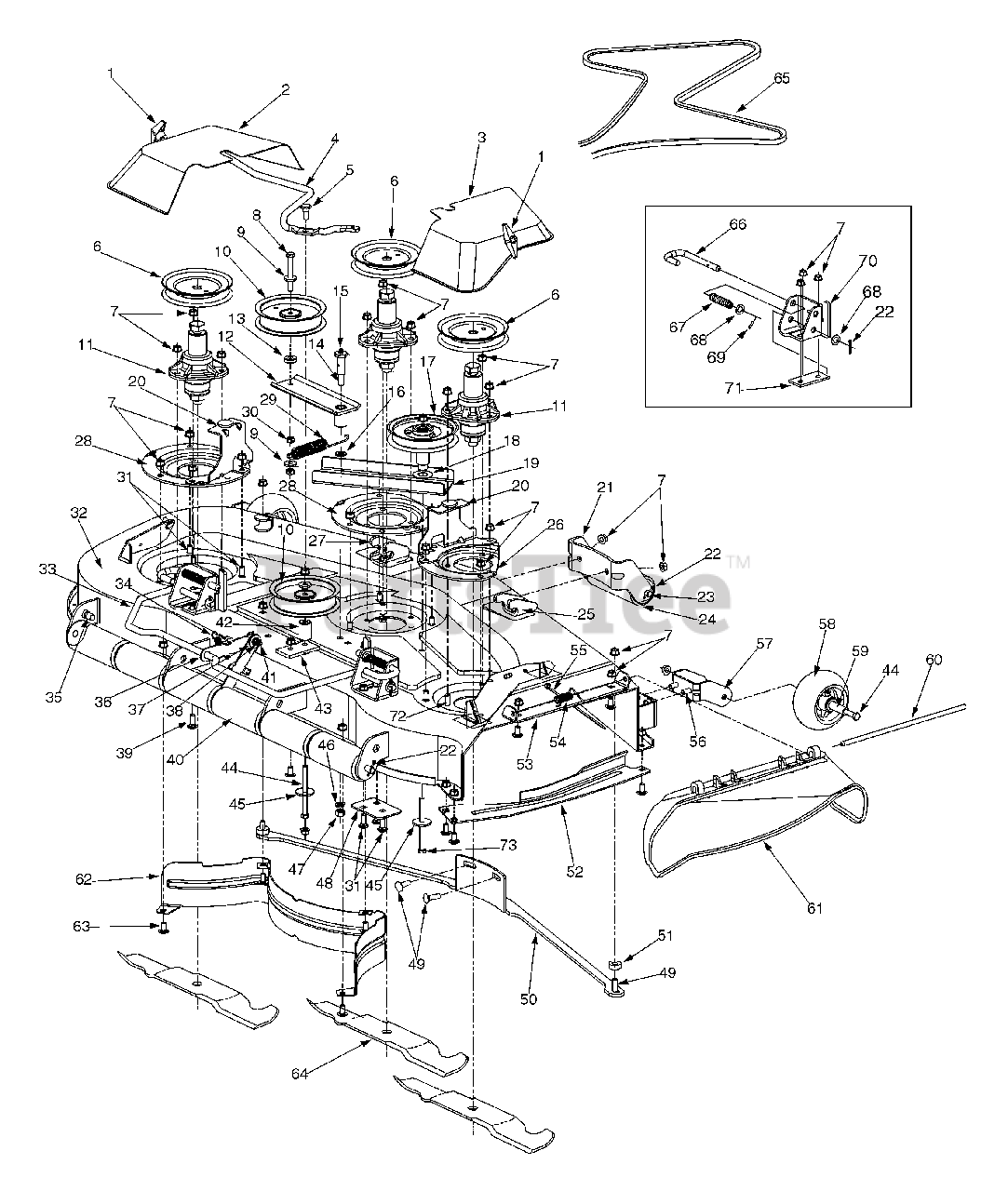

48-Inch Deck Assembly Parts Diagram

  • Title

1

MTD 720-04072A

Wingnut Knob

$6.99

$

In Stock, Qty 20+

0

2

MTD 703-2817

Belt Cover LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2817-0498

COVER:BELT:LH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2817-0637

COVER:BELT:LH - POWDER BLACK (0637)

$

$

Not available

MTD 703-2817-0648

COVER:BELT:LH - TECH GRAY (0648)

$

$

Not available

$

$

3

MTD 703-2816

Belt Cover RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2816-0498

COVER:BELT:RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2816-0637

No Longer Available COVER:BELT - POWDER BLACK (0637)

$

$

Not available

MTD 703-2816-0648

Cover, Belt - RH - TECH GRAY (0648)

$

$

Not available

$

$

4

MTD 747-3306

Idler Spring Mounting Rod

Note: NLA

$

$

Not available

5

MTD 938-0380

Shoulder Screw 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

6

MTD 756-04459

Pulley
(Superseded to 756-04459A)

$33.99

$

In Stock, only 2 left!

0

7

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

8

MTD 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 11

0

9

MTD 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

In Stock, only 4 left!

0

10

MTD 756-3105

Idler Pulley 5.0

$73.99

$

In Stock, only 3 left!

0

11

MTD 603-0690

Deck Spindle Ass'y

$

$

Not available

12

MTD 903-0469A-0637

Idler Bearing Arm Ass'y

$

$

Not available

13

MTD 911-0242

Spacer

$4.49

$

In Stock, Qty 9

0

14

MTD 738-3108

Shoulder Bolt
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

15

MTD 937-0280

Grease Fitting
(Superseded to 737-0280)

$7.99

$

In Stock, Qty 8

0

16

MTD 936-3015

Flat Washer .469 ID x .875 OD

$4.49

$

In Stock, Qty 19

0

17

MTD 903-0407

Idler Pulley Ass'y 5.0

$

$

Not available

18

MTD 936-0316

Flat Washer.76 ID x 1.59 OD
(Superseded to 736-0316)

$4.49

$

In Stock, Qty 20+

0

19

MTD 703-2849-0637

Channel

$

$

Not available

20

MTD 703-0326

Front End Deck Bracket LH

Note: NLA

$

$

Currently unavailable

21

MTD 703-2091A

Front Roller Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2091A-0498

Front Roller Bracket - OLD CUB YELLOW (0498)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-2091A-0637

Front Roller Bracket - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-2091A-0648

Front Roller Bracket - TECH GRAY (0648)

$76.99

$

Usually ships in 3-6 days

0

$71.99

$

Usually ships in 3-6 days

0

22

MTD 914-0115

Cotter Pin
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

23

MTD 911-3314

Roller Pin
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

24

MTD 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

25

MTD 703-2430

Front End Deck Bracket RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2430-0498

Front End Deck Bracket, RH - OLD CUB YELLOW (0498)

$12.99

$

In Stock, only 2 left!

0

MTD 703-2430-0637

Bracket, Front Deck - RH - POWDER BLACK (0637)

$

$

Not available

MTD 703-2430-0648

No Longer Available BRACKET:DECK:RH FRT E - TECH GRAY (0648)

$

$

Not available

$

$

26

MTD 703-2090

Reinforcement Disk RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2090-0498

DISK-REINFORCE RH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2090-0637

DISK-REINFORCE RH - POWDER BLACK (0637)

$

$

Not available

MTD 703-2090-0716

DISK-REINFORCE RH - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

MTD 703-2767

Front End Deck Bracket LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2767-0498

No Longer Available BRACKET DE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2767-0637

No Longer Available BRACKET DECK FRT LH - POWDER BLACK (0637)

$

$

Not available

MTD 703-2767-0648

Bracket, Front Deck - LH - TECH GRAY (0648)

$

$

Not available

$

$

28

MTD 703-2089A-0637

Reinforcement Disk

$

$

Not available

29

MTD 732-0971

Extension Spring

$23.99

$

In Stock, only 1 left!

0

30

MTD 712-0375

Lock Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

31

MTD 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

32

MTD 603-0348

Mower Deck Ass'y

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-0348-0498

No Longer Available USE 603-0348-0637 DECK ASM:SH - OLD CUB YELLOW (0498)

$

$

Not available

MTD 603-0348-0637

Housing Ass'y, 48" Mower Deck - POWDER BLACK (0637)

$

$

Not available

MTD 603-0348-0648

No Longer Available USE 603-0348-0637 DECK ASM:SH - TECH GRAY (0648)

$

$

Not available

$

$

33

MTD 747-3297A

Deck Support Rod

$

$

Not available

34

MTD 932-0395

Extension Spring .50 OD x 2.51 Lg

$

$

Not available

35

MTD 711-1103

Pin Roller

Note: NLA

$

$

Not available

36

MTD 703-2929

Deck Support Link

Note: NLA

Variations

MTD 703-2929-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2929-0637

No Longer Available LINK-DECK - POWDER BLACK (0637)

$

$

Not available

MTD 703-2929-0648

Link, Deck Support - TECH GRAY (0648)

$

$

Not available

$

$

37

MTD 936-0231

Flat Washer .344 ID x 1.125 OD
(Superseded to 736-0231)

$

$

Not available

38

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-3168

Carriage Bolt 3/8-16

$3.99

$

In Stock, Qty 20+

0

40

MTD 731-3005

Roller

$28.99

$

In Stock, Qty 20+

0

41

MTD 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

42

MTD 750-3243

Spacer

$

$

Not available

43

MTD 703-3381

Idler Support Plate

Note: NLA

Variations

MTD 703-3381-0637

No Longer Available PLATE-IDLE - POWDER BLACK (0637)

$

$

Not available

$

$

44

MTD 710-0944

Hex Cap Screw 3/8-16 x 4.25

$10.99

$

In Stock, Qty 12

0

45

MTD 936-0227

Flat Washer
(Superseded to 736-0227)

$

$

Not available

46

MTD 936-0171

Lock Washer 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

47

MTD 912-3019

Hex Nut 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

48

MTD 703-2988

Support Plate

Note: NLA

Variations

MTD 703-2988-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

49

MTD 710-3034

Carriage Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

50

MTD 603-0154

Front Bar

Note: NLA

Variations

MTD 603-0154-0498

"No Longer Available Bar-48"" Fr" - OLD CUB YELLOW (0498)

$

$

Not available

MTD 603-0154-0637

No Longer Available BAR-48 FRO - POWDER BLACK (0637)

$

$

Not available

MTD 603-0154-0648

"No Longer Available Bar-48"" Fr" - TECH GRAY (0648)

$

$

Not available

$

$

51

MTD 750-3119

Spacer

$11.99

$

In Stock, only 4 left!

0

52

MTD 703-3511B-0637

Finger Guard

$69.99

$

In Stock, Qty 20+

0

53

MTD 631-04070A

Bracket
(Superseded to 631-04070C)

$122.99

$

In Stock, only 3 left!

0

54

MTD 732-3070A

Torsion Spring

$11.99

$

In Stock, only 4 left!

0

55

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

56

MTD 710-3001

Hex Cap Screw 3/8-16 x .860

$7.49

$

In Stock, Qty 9

0

57

MTD 703-2410

Castor Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2410-0498

Deck Wheel Bracket - OLD CUB YELLOW (0498)

$

$

Not available

MTD 703-2410-0637

Caster Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 703-2410-0648

No Longer Available BRKT-DECK - TECH GRAY (0648)

$

$

Not available

$

$

58

MTD 634-3159

Wheel Complete

$34.99

$

In Stock, Qty 20+

0

59

MTD 750-3193

Spacer

$18.99

$

In Stock, Qty 20+

0

60

MTD 711-3318

Hinge Pin

$

$

Not available

61

MTD 931-3131A

Deflector Chute

$108.99

$

In Stock, only 4 left!

0

62

MTD 703-2161-0637

Inner Baffle

$

$

Not available

63

MTD 710-3178

Carriage Bolt 3/8 - 16

$4.49

$

In Stock, Qty 20+

0

64

MTD 759-3826

Blade
(Superseded to 742P3025)

$46.99

$

In Stock, Qty 6

0

65

MTD 954-3078

Belt

$

$

Not available

65

MTD 954-3083

Belt

$147.99

$

Usually ships in 3-6 days

0

66

MTD 747-3013

Support Pin

$22.99

$

In Stock, only 2 left!

0

67

MTD 732-0802

Compression Spring

$4.49

$

In Stock, only 1 left!

0

68

MTD 936-0160

Flat Washer .536 ID x .93 OD

$4.49

$

In Stock, only 1 left!

0

69

MTD 715-3003

Spring Pin

$6.99

$

In Stock, Qty 7

0

70

MTD 603-0351

Rear Hanger Bracket LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-0351-0498

BRACKET. HANGER LH RR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 603-0351-0637

No Longer Available BRKT. HANG - POWDER BLACK (0637)

$

$

Not available

MTD 603-0351-0648

Bracket, Rear Hanger LH - TECH GRAY (0648)

$

$

Not available

$

$

70

MTD 603-0350

Rear Hanger Bracket RH

Variations

MTD 603-0350-0498

BRACKET. HANGER RH RR - OLD CUB YELLOW (0498)

$

$

Not available

MTD 603-0350-0637

BRACKET. HANGER RH RR - POWDER BLACK (0637)

$

$

Not available

MTD 603-0350-0648

Bracket, Rear Hanger RH - TECH GRAY (0648)

$

$

Not available

$

$

71

MTD 703-2683

Rear Hanger Bracket Spacer

Note: NLA

Variations

MTD 703-2683-0637

No Longer Available SPACER-HAN - POWDER BLACK (0637)

$

$

Not available

$

$

72

MTD 710-3005

Hex Cap Screw 3/8-16 x .88

$3.99

$

In Stock, Qty 20+

0

73

MTD 710-0693

Hex Cap Screw 3/8-16 x 4.5

$14.99

$

In Stock, only 2 left!

0
