ZT-2150 (53CA1A6M190) - White Outdoor 48" Zero-Turn Mower (2001) Seat Assembly Parts Diagram

48" Zero-Turn Mower

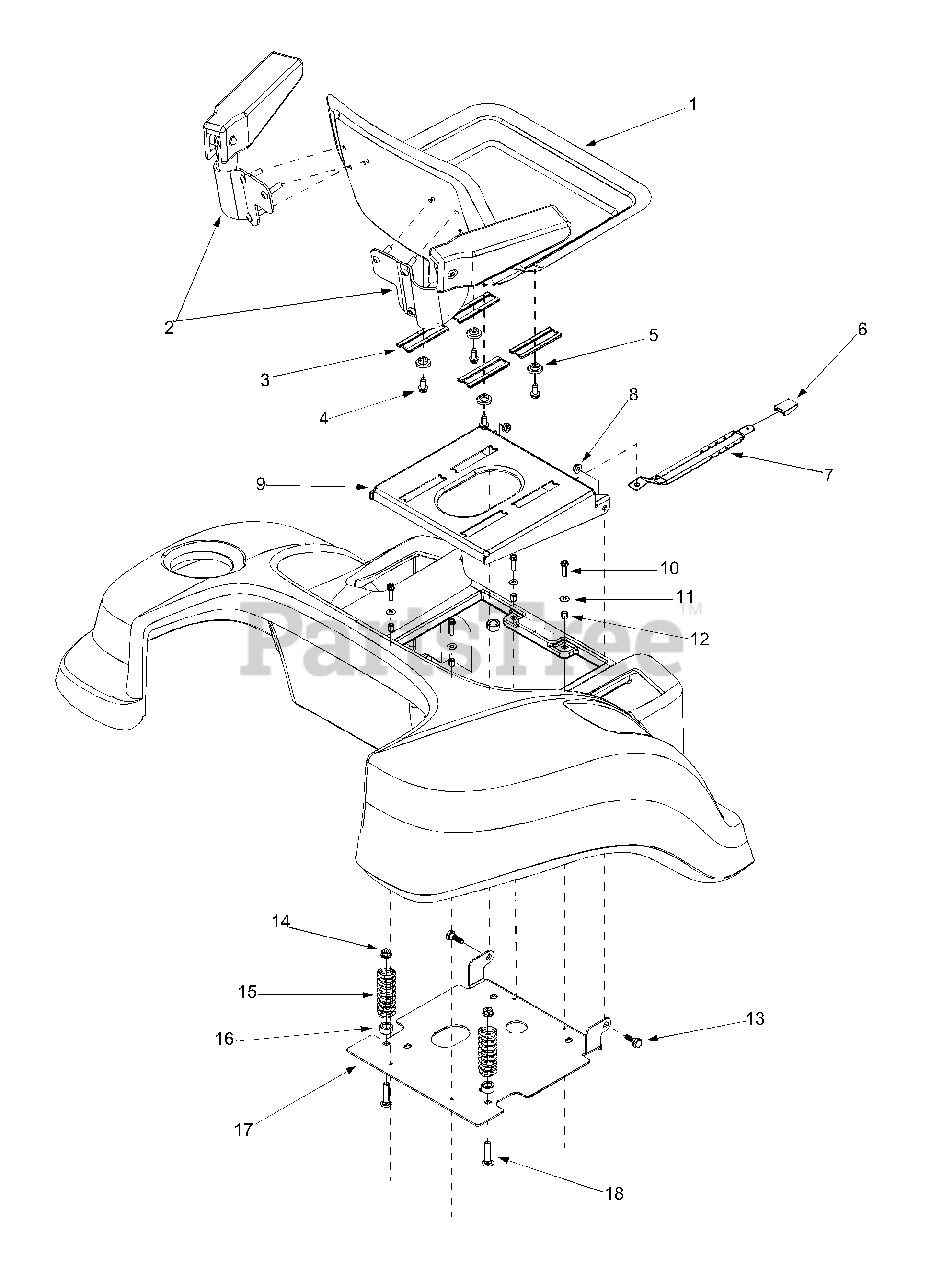

Seat Assembly Parts Diagram

  • Title

1

White Outdoor 757-0375B

Seat Ass'y
(Superseded to 957-0375B)

$

$

Not available

2

White Outdoor 757-3009

Seat Arm Ass'y (If Equipped)

$

$

Not available

3

White Outdoor 731-3154

Seat Slide

$

$

Not available

4

White Outdoor 710-1260A

Hex Washer Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 738-0372

Shoulder Spacer
(Superseded to 738-0372B)

$9.49

$

In Stock, Qty 19

0

6

White Outdoor 720-0190

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

7

White Outdoor 732-3098

Spring Index

$

$

Not available

8

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 603-0294

Seat Base Bracket Ass'y

Variations

White Outdoor 603-0294-0637

BRACKET ASSY: SEATBASE - POWDER BLACK (0637)

$

$

Not available

$

$

10

White Outdoor 710-0788

Hex Washer Screw 1/4-20 x 1.0

$7.49

$

In Stock, only 2 left!

0

11

White Outdoor 736-0463

Flat Washer .25 x .630

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 750-3276

Spacer

$

$

Not available

13

White Outdoor 738-0296

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 732-3080

Compression Spring
(Superseded to 732-3080A)

$13.99

$

In Stock, Qty 11

0

16

White Outdoor 750-0664

Spacer

$6.99

$

In Stock, only 2 left!

0

17

White Outdoor 603-0730

Seat Plate Ass'y

Variations

White Outdoor 603-0730-0637

PLATE-SEAT - POWDER BLACK (0637)

$

$

Not available

$

$

18

White Outdoor 710-0560

Hex Carriage Screw 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0
