ZT-2150 (53CA1A6M190) - White Outdoor 48" Zero-Turn Mower (2001) Frame Parts Diagram

48" Zero-Turn Mower

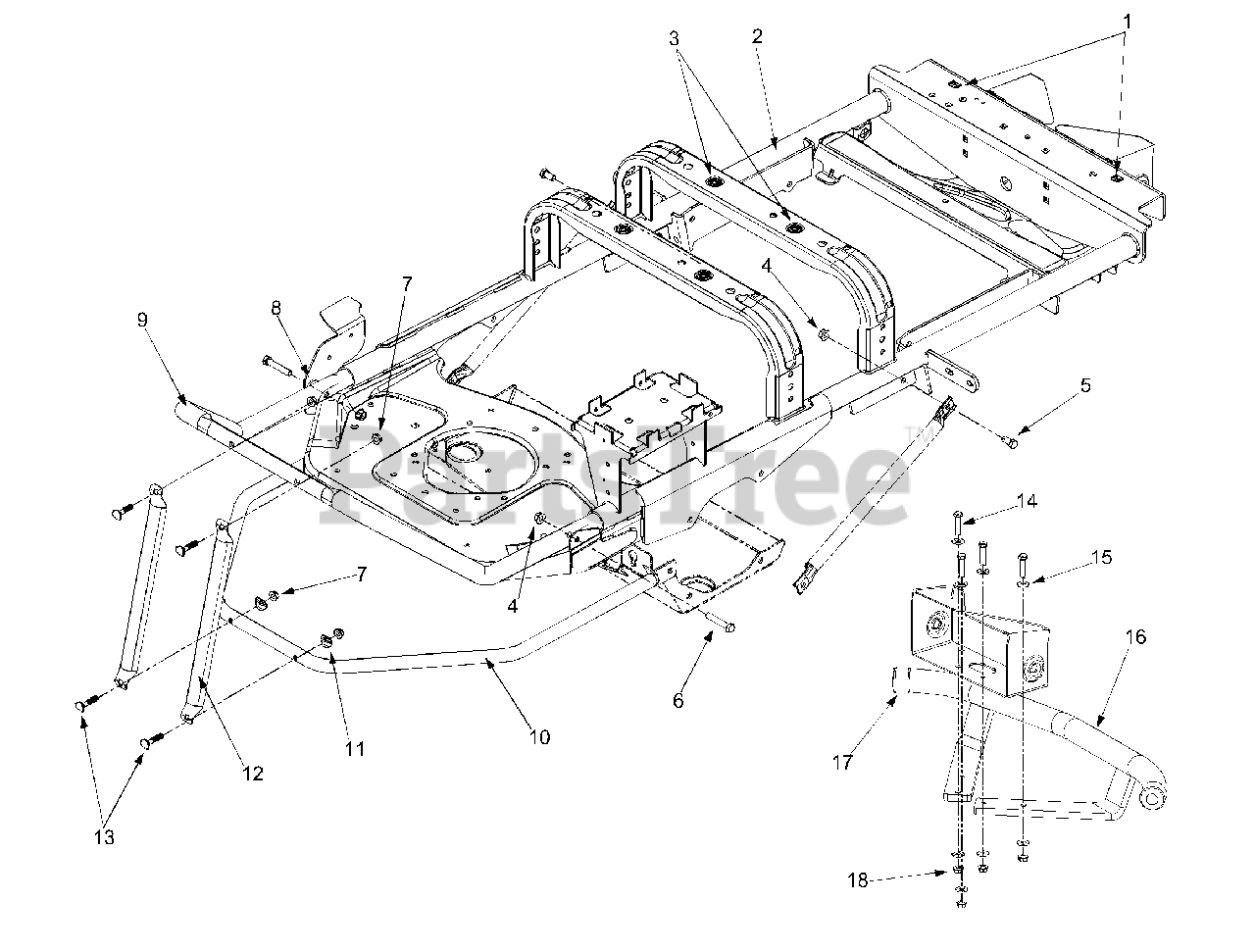

Frame Parts Diagram

  • Title

1

White Outdoor 712-0251

Retainer Nut 3/8-16

$

$

Not available

2

White Outdoor 603-0720B

Frame Assembly
(Superseded to 603-0720B-0637)

Variations

White Outdoor 603-0720B-0637

FRAME ASSY-ZTT - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 712-0455

Retainer Nut 3/8-16

$

$

Not available

4

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

6

White Outdoor 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 736-0258

Flat Washer .385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0

9

White Outdoor 749-3062

Upper Bumper

Variations

White Outdoor 749-3062-0498

No Longer Available BMPR:TUBE:UPPER - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 749-3062-0637

No Longer Available BMPR:TUBE:UPPER - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-3062-0648

BMPR:TUBE:UPPER - TECH GRAY (0648)

$

$

Not available

$

$

10

White Outdoor 749-3061

Lower Bumper Tube

Variations

White Outdoor 749-3061-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 749-3061-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 749-3061-0648

No Longer Available BMPR TUBE LWR - TECH GRAY (0648)

$

$

Not available

$

$

11

White Outdoor 736-0451

Washer .320 ID x .93 OD

$4.49

$

In Stock, Qty 11

0

12

White Outdoor 703-3504

Bumper Bracket

Variations

White Outdoor 703-3504-0637

No Longer Available BRACKET-BUMPER - POWDER BLACK (0637)

$

$

Not available

$

$

13

White Outdoor 710-1250

Carriage Bolt 5/16 x 1.5

$4.99

$

In Stock, only 3 left!

0

14

White Outdoor 710-0520

Hex Cap Screw 3/8-16 x 1.5

$4.49

$

In Stock, Qty 5

0

15

White Outdoor 736-3004

Flat Washer .406 ID x .875 OD

$4.99

$

In Stock, Qty 6

0

16

White Outdoor 603-0620A

Front Bumper
(Superseded to 603-0620A-0637)

Variations

White Outdoor 603-0620A-0498

BUMPER-SOLID FRONT - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 603-0620A-0637

BUMPER-SOLID FRONT - POWDER BLACK (0637)

$

$

Not available

White Outdoor 603-0620A-0648

BUMPER-SOLID FRONT - TECH GRAY (0648)

$

$

Not available

$

$

17

White Outdoor 726-0298

End Cap

$

$

Not available

18

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0
