ZT-2150 (53CA1A6M190) - White Outdoor 48" Zero-Turn Mower (2001) Final Drive Assembly Parts Diagram

48" Zero-Turn Mower

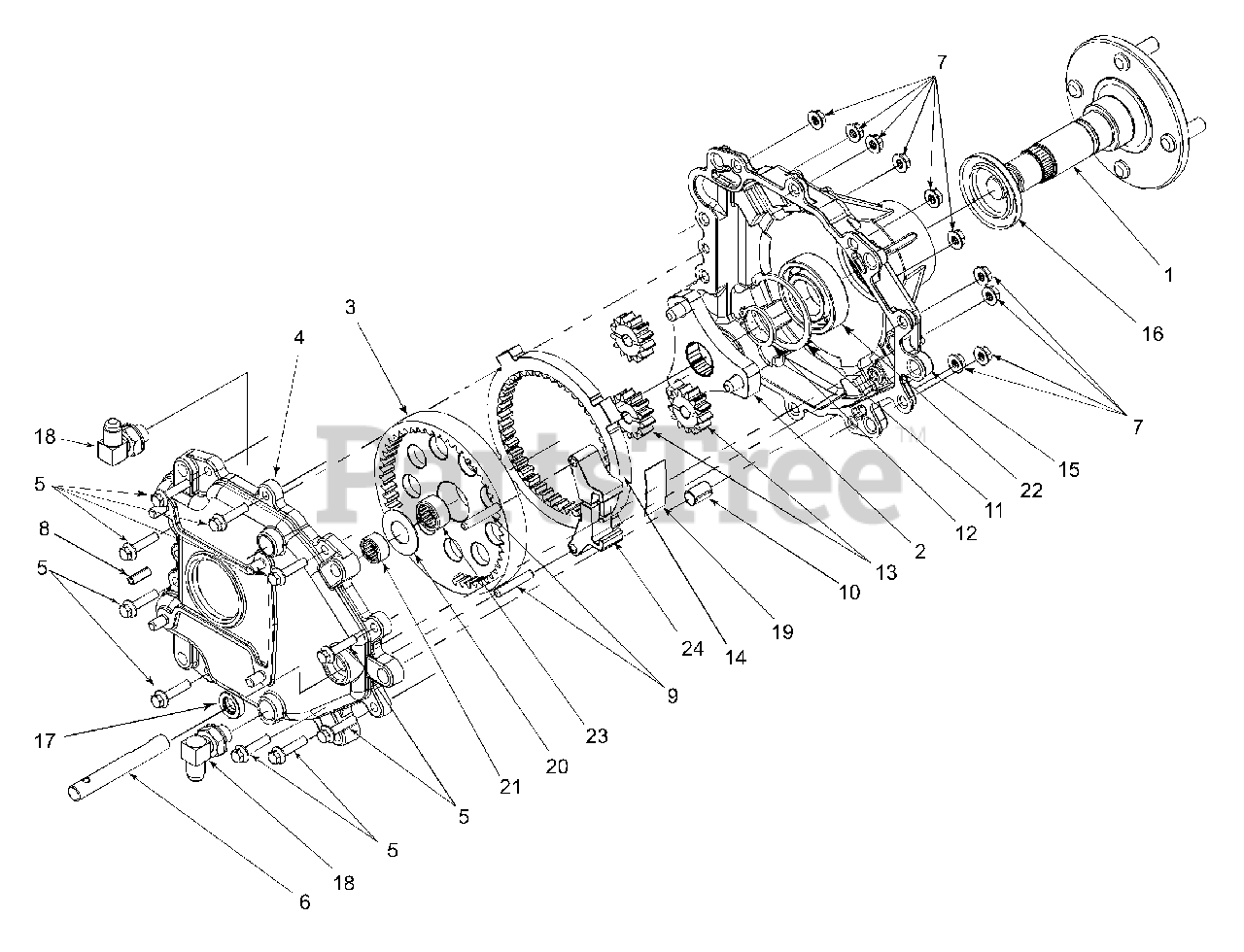

Final Drive Assembly Parts Diagram

  • Title

White Outdoor 618-3110A

Drive Ass'y Complete

$

$

Not available

1

White Outdoor 611-3012

Axle Assembly
(Superseded to 911-3027)

$

$

Not available

White Outdoor 710-0852

Ribbed Neck Stud

$6.49

$

In Stock, only 2 left!

0

2

White Outdoor 618-3106

Carrier Assembly, Output
(Superseded to 918-3106)

$125.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-3107

Gear Assembly, 51T Internal & 20T
(Superseded to 918-3107)

$214.99

$

Usually ships in 3-6 days

0

4

White Outdoor 618-3109

Housing Ass'y
(Superseded to 918-3109A)

$

$

Not available

5

White Outdoor 710-1342

Hex Washer Screw 1/4-20 x 1-1/8

$

$

Not available

6

$

$

Not available

7

White Outdoor 712-3027

Hex Flange Lock Nut 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, only 1 left!

0

$

$

Not available

10

White Outdoor 715-3045

Bushing
(Superseded to 915-3045)

$9.99

$

Usually ships in 3-6 days

0

11

White Outdoor 716-3015

Inverted Retaining Ring

$11.99

$

In Stock, only 3 left!

0

12

$6.99

$

In Stock, only 2 left!

0

13

White Outdoor 717-3395

Spur Gear 13T

$

$

Not available

14

White Outdoor 717-3397

Ring Gear 46T

$82.99

$

Usually ships in 3-6 days

0

15

White Outdoor 719-3114

Axle Outer Housing
(Superseded to 919-3114A)

$284.99

$

Usually ships in 3-6 days

0

16

White Outdoor 721-0381

Oil Seal
(Superseded to 921-0381)

$19.99

$

Usually ships in 3-6 days

0

$12.99

$

In Stock, Qty 6

0

18

White Outdoor 727-3124

Elbow Fitting
(Superseded to 01002602)

$

$

Not available

19

White Outdoor 732-0752

Brake Shoe Spring

$

$

Not available

20

White Outdoor 736-0351

Shim Washer .76 x 1.5 x .030

$4.49

$

In Stock, Qty 20+

0

White Outdoor 736-0492

Shim Washer .76 x 1.5 x .010
(Superseded to 936-0492)

$6.99

$

Usually ships in 3-6 days

0

White Outdoor 736-0493

Shim Washer .76 x 1.5 x .020
(Superseded to 936-0493)

$4.99

$

Usually ships in 3-6 days

0

21

White Outdoor 741-0665

Needle Bearing

$21.99

$

In Stock, only 2 left!

0

22

White Outdoor 741-3033A

Ball Bearing
(Superseded to 941-3033A)

$53.99

$

In Stock, Qty 6

0

23

White Outdoor 741-3080

Needle Bearing

$23.99

$

Usually ships in 3-6 days

0

24

$

$

Not available
