ZT-2150 (53CA1A6M190) - White Outdoor 48" Zero-Turn Mower (2001) Engine Accessories, PTO, Muffler Parts Diagram

48" Zero-Turn Mower

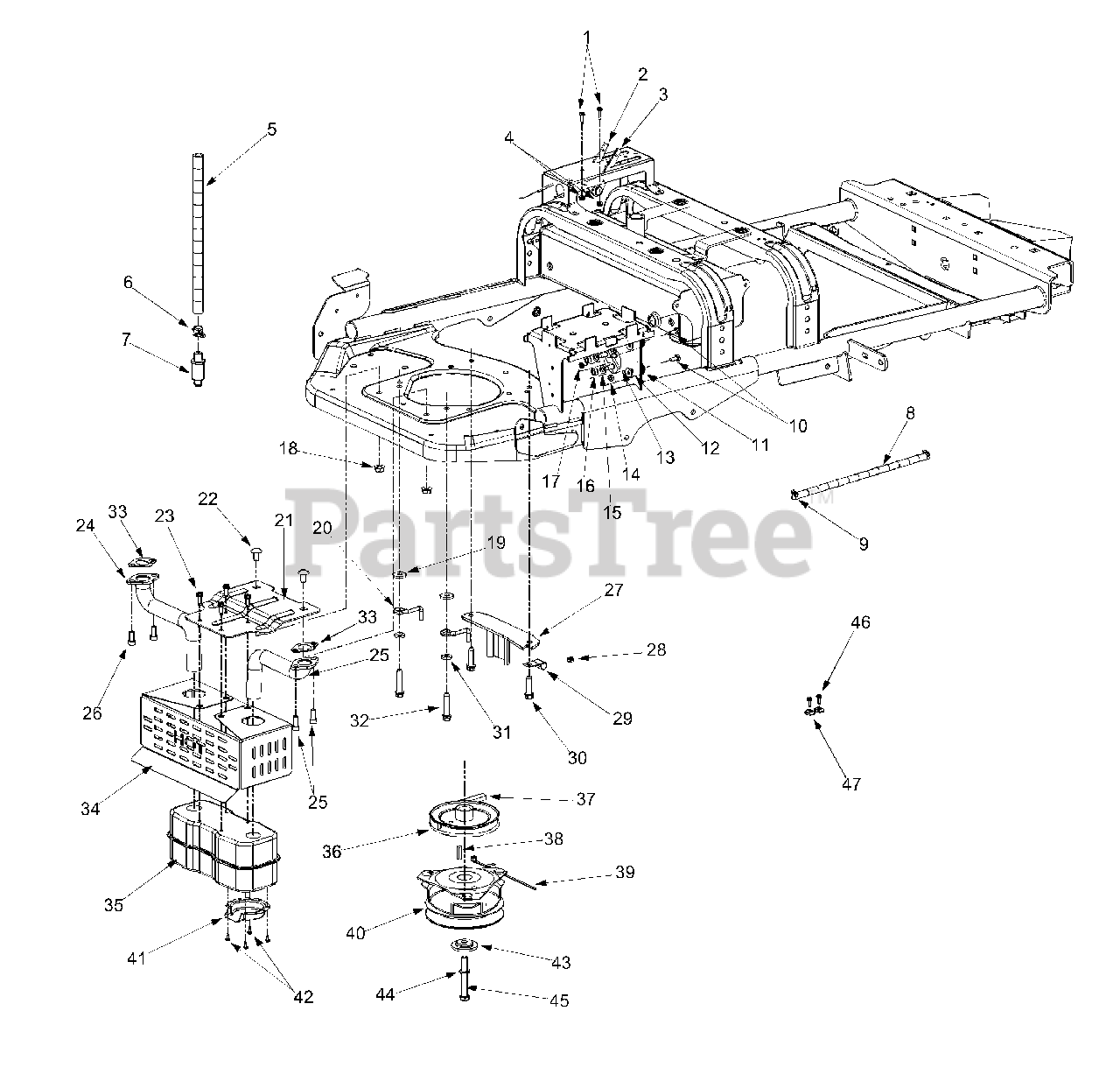

Engine Accessories, PTO, Muffler Parts Diagram

  • Title

1

White Outdoor 710-3009

Screw #10-24 x .750

$7.49

$

Usually ships in 3-6 days

0

2

White Outdoor 746-3070

Throttle Cable Control 40.5"

$

$

Not available

3

White Outdoor 746-3069

Choke Cable Control 52.0"

$

$

Not available

4

White Outdoor 712-0161

Nylon Lock Nut #10-24

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

6

White Outdoor 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

7

White Outdoor 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 2 left!

0

8

751-0535

Fuel Line Hose

$

$

Not available

9

White Outdoor 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 736-3006

Lock Washer 1/4 ID x 3/4 OD

$6.49

$

Usually ships in 3-6 days

0

12

White Outdoor 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-3001

Solenoid Switch
(Superseded to 925-3001)

$58.99

$

Usually ships in 3-6 days

0

14

White Outdoor 712-0291

Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

15

White Outdoor 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-3010

Hex Nut 5/16 - 18

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-3071

Hex Nut #10-32
(Superseded to 712-3071A)

$3.49

$

Usually ships in 3-6 days

0

18

White Outdoor 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

In Stock, only 2 left!

0

20

White Outdoor 747-3362

Rear Belt Retainer Rod

$

$

Not available

21

White Outdoor 703-2859

Muffler Bracket

$

$

Not available

22

White Outdoor 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 710-0642

Hex Washer Screw 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 751-0650

Exhaust Pipe RH
(Superseded to 751-0650B)

$63.99

$

In Stock, only 1 left!

0

25

White Outdoor 751-0651

Exhaust Pipe LH
(Superseded to 751-0651B)

$60.99

$

In Stock, only 1 left!

0

26

White Outdoor 710-1314

Screw
(Superseded to 710-1314A)

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 603-0317

Clutch Retainer Ass'y

Variations

White Outdoor 603-0317-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 712-0291

Hex Lock Nut 1/4-20

$4.49

$

In Stock, Qty 8

0

29

White Outdoor 726-3008

Heat Shield Cable Clip

$4.99

$

Usually ships in 3-6 days

0

30

White Outdoor 710-1007

Hex Washer Screw 3/8-16 x 1.5

$6.49

$

In Stock, only 1 left!

0

31

White Outdoor 736-3010

Flat Washer

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 710-1008

Hex Washer Screw 3/8-16 x 1.875

$5.49

$

In Stock, Qty 7

0

33

White Outdoor 721-0460

Gasket
(Superseded to 721P0460)

$6.99

$

In Stock, only 2 left!

0

34

White Outdoor 703-3004

Muffler Guard
(Superseded to 703-3004-0637)

Variations

White Outdoor 703-3004-0637

SHIELD-MUFFLER - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 751-0616

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

36

White Outdoor 756-3060A

Pulley

$97.99

$

Usually ships in 3-6 days

0

37

White Outdoor 754-3100

V-Belt
(Superseded to 954-3100)

$72.99

$

Usually ships in 3-6 days

0

38

White Outdoor 714-0128

Key

$4.99

$

In Stock, Qty 6

0

39

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

40

White Outdoor 717-3389

Electric PTO Clutch
(Superseded to 917-3389)

$642.99

$

Usually ships in 3-6 days

0

41

White Outdoor 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, only 4 left!

0

42

White Outdoor 710-0148

Hex Washer Screw #8-32 x .375

$4.49

$

In Stock, Qty 16

0

43

White Outdoor 750-3106

Spacer Clutch

$35.99

$

Usually ships in 3-6 days

0

44

White Outdoor 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

45

White Outdoor 710-3157

Hex Cap Screw 7/16-20 x 3.25
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

46

White Outdoor 710-1237

Hex Washer Screw #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

White Outdoor 629-3038A

Engine Harness Assembly

Note: (Not Shown)

$

$

Not available
