ZT 2148 T - Simplicity Colt 48" Zero-Turn Mower, 21hp Kohler Pump Drive Group (7090pdg) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Kohler

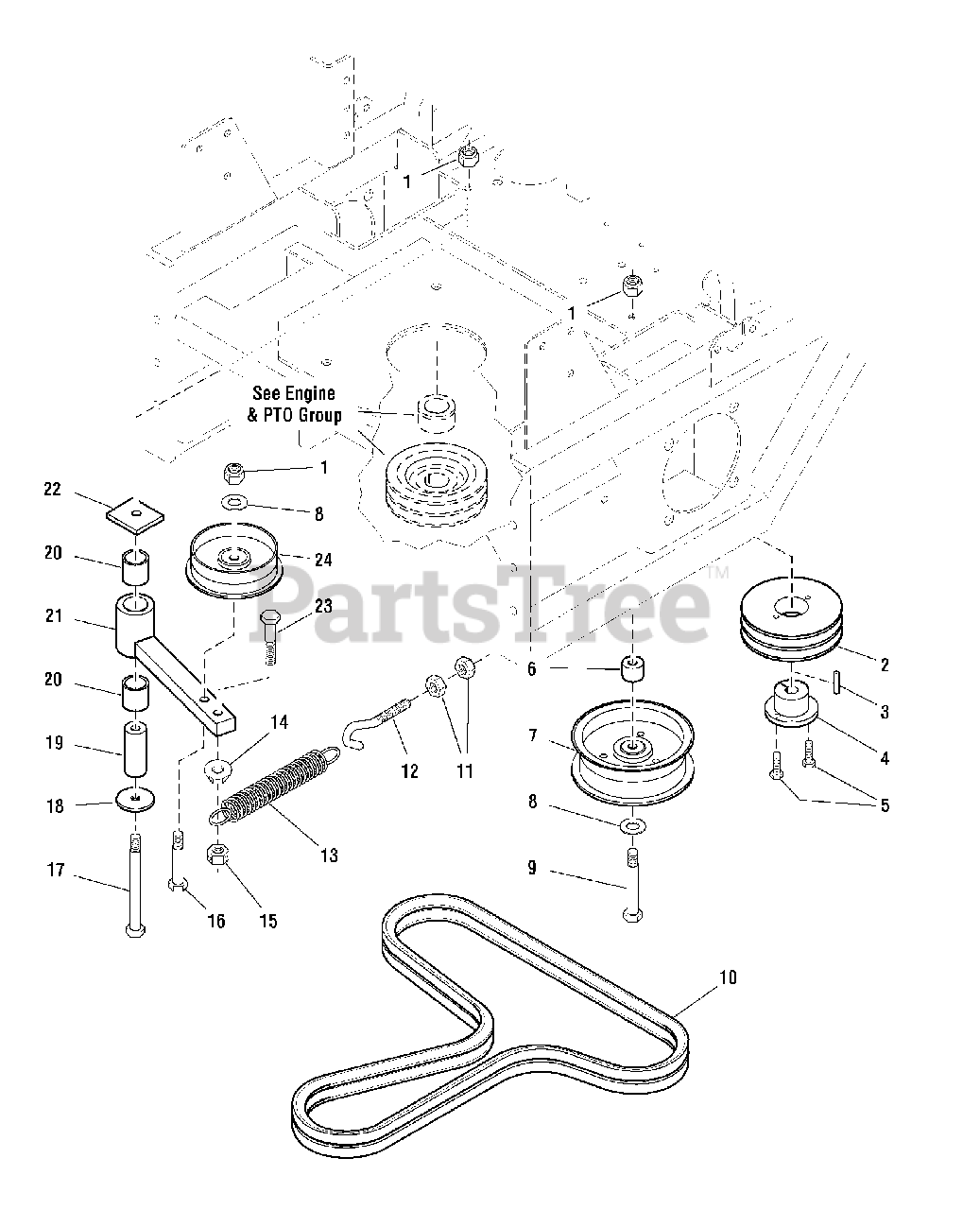

Pump Drive Group (7090pdg) Parts Diagram

  • Title
1

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 5022586SM

PULLEY, Pump Drive

$121.99

$

In Stock, only 2 left!

0

3

Simplicity 5022156SM

KEY, 5mm x 25mm

$5.49

$

Usually ships in 2-12 days

0

4

Simplicity 5022587SM

BUSHING, Tapered Hub

$27.99

$

In Stock, only 1 left!

0

5

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 5046446SM

SPACER, .39 x 1.00 x .79

$7.49

$

In Stock, only 1 left!

0

7

Simplicity 5022620SM

PULLEY, Idler

$76.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 10

0

9

Simplicity 5025013X22SM

CAPSCREW, Hex Hd, 3/8-16 x 2-3/4

$4.49

$

In Stock, only 3 left!

0

10

Simplicity 5100555SM

BELT, BANDED A-SEC, 64.76EL, POLY, RAW EDGE

$98.99

$

In Stock, Qty 14

0

11

Simplicity 1916950SM

NUT, Hex, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 5025321SM

SCREW HOOK, 3/8-16 x 4-1/4

$16.99

$

Usually ships in 2-12 days

0

13

Simplicity 5022847SM

SPRING, Extension, Swivel End

$34.99

$

In Stock, Qty 7

0

14

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0

15

Simplicity 5025100SM

NUT, Hex, Side Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 5025013X18SM

CAPSCREW, Hex Hd, 3/8-16 x 2-1/4

$3.99

$

In Stock, only 1 left!

0

17

Simplicity 5025013X32SM

CAPSCREW, Hex Hd, 3/8-16 x 4

$3.99

$

In Stock, Qty 11

0

18

Simplicity 5025305SM

WASHER, 3/8 x 1-3/4

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 5045135SM

SHAFT, Idler Pivot
(Superseded to 5102004YP)

$27.99

$

In Stock, only 1 left!

0

20

Simplicity 5022157SM

BUSHING, Brass

$12.99

$

In Stock, only 2 left!

0

21

Simplicity 5046430A

WELD, ARM, PUMP DRIVE IDLER - BLK
(Superseded to 5046430AYP)

$75.99

$

Usually ships in 2-12 days

0

22

Simplicity 5045090C

SPACER, Idler Pivot

$

$

Not available

23

Simplicity 5025013X14SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/4

$3.99

$

In Stock, only 2 left!

0

24

Simplicity 5103808SM

PULLEY, Idler (Single Flange)
(Superseded to 5103808YP)

$57.99

$

In Stock, only 1 left!

0
