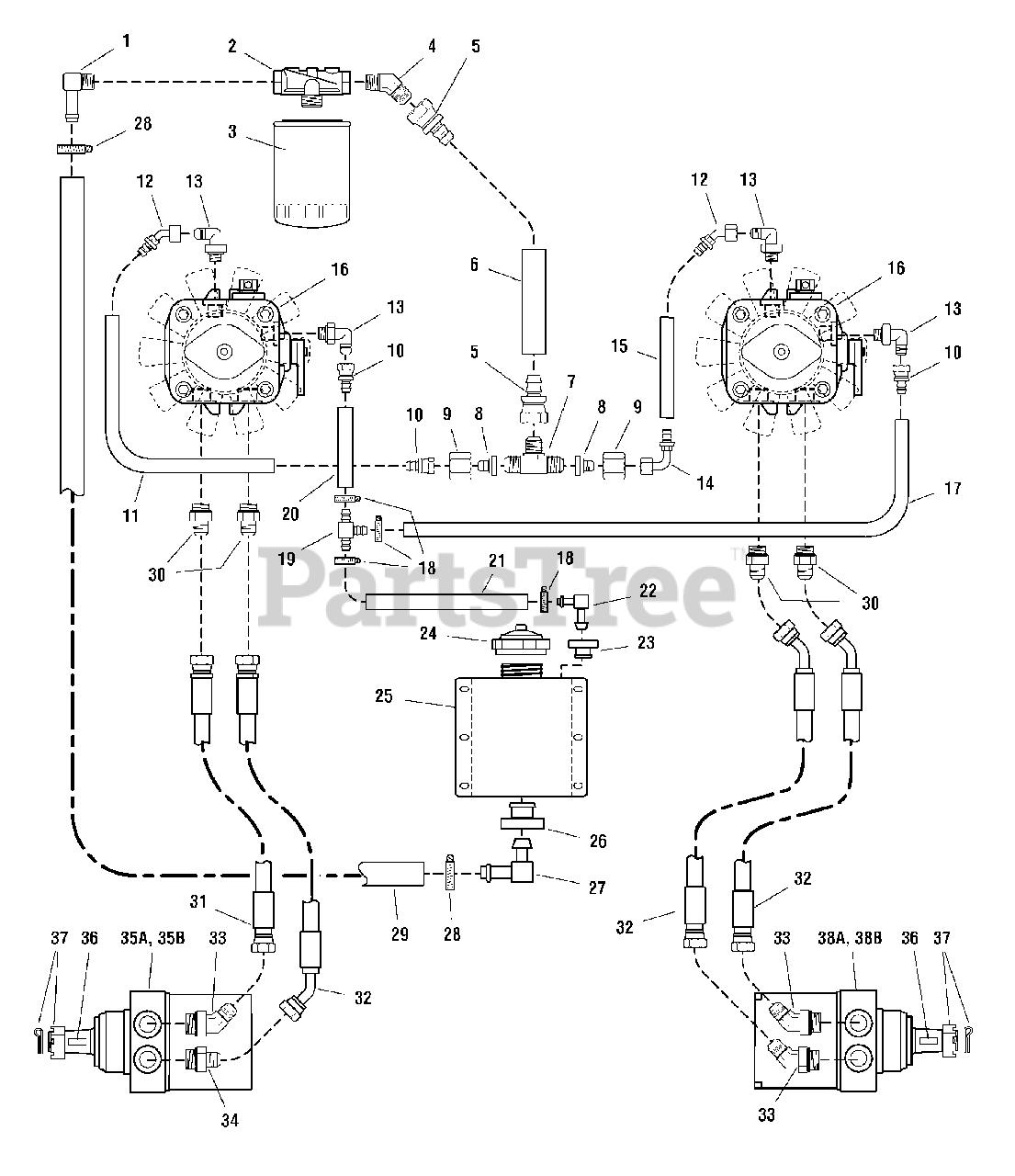

ZT 2148 T - Simplicity Colt 48" Zero-Turn Mower, 21hp Kohler Hydraulic Group (S/N: 339 & above) (S/N: 364 & above) (7090hg2) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Kohler

Hydraulic Group (S/N: 339 & above) (S/N: 364 & above) (7090hg2) Parts Diagram

  • Title

1

Simplicity 5021233SM

FITTING, 1/2" NPT, 90 Deg.

$12.99

$

Usually ships in 2-12 days

0

2

Simplicity 5021356SM

FILTER HEAD

$61.99

$

Usually ships in 2-12 days

0

3

Simplicity 5021357X1SM

FILTER

$

$

Not available

4

Simplicity 5022720SM

FITTING, 1/2" NPT, 45 Deg.

$

$

Not available

5

Simplicity 5022719SM

FITTING, Hydraulic, Straight Swivel

$20.99

$

Usually ships in 2-12 days

0

6

Simplicity 5050933X7P5

HOSE, Hydraulic, 7-1/2"

$

$

Not available

7

Simplicity 5022718SM

FITTING, Tee

$

$

Not available

8

Simplicity 5022716SM

ADAPTER, Tee

$

$

Not available

9

Simplicity 5022717SM

NUT, Adapter

$

$

Not available

10

Simplicity 5022713SM

FITTING, Hydraulic, Straight Swivel

$7.49

$

Usually ships in 2-12 days

0

11

Simplicity 50508601375

HOSE, Hydraulic, 13-3/4"

$

$

Not available

12

Simplicity 5022714SM

FITTING, Hydraulic, 45 Deg. Swivel

$

$

Not available

13

Simplicity 5022712SM

FITTING, Hydraulic, O-Ring, 90 Deg.

$22.99

$

Usually ships in 2-12 days

0

14

Simplicity 5022715SM

FITTING, Hydraulic, 90 Deg. Swivel

$

$

Not available

15

Simplicity 5050860675

HOSE, Hydraulic, 6-3/4"

$

$

Not available

16

Simplicity 5022571SM

HYDRAULIC PUMP w/ FAN

$1341.99

$

Usually ships in 2-12 days

0

*

Simplicity 5022571X1SM

Fan
(Superseded to 5100161X1SM)

$67.99

$

Usually ships in 2-12 days

0

17

Simplicity 5050860165

HOSE, Hydraulic, 16-1/2"

$

$

Not available

18

Simplicity 5021392SM

HOSE CLAMP, #6

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 5022920SM

FITTING, TEE, 3/8"

$18.99

$

Usually ships in 2-12 days

0

20

Simplicity 5508606SM

HOSE, Hydraulic, 6"
(Superseded to 5050860X6SM)

$8.49

$

Usually ships in 2-12 days

0

21

Simplicity 5050860175

HOSE, Hydraulic, 17-1/2"

$

$

Not available

22

Simplicity 5023118SM

FITTING, Elbow, 3/8"

$7.99

$

Usually ships in 2-12 days

0

23

Simplicity 1726400SM

GROMMET
(Superseded to 1654930SM)

$7.99

$

In Stock, Qty 20+

0

24

Simplicity 5021468SM

CAP

$18.99

$

Usually ships in 2-12 days

0

25

Simplicity 5048111SM

HYDRAULIC OIL RESERVOIR, Complete (includes Ref. No. 22, 23, 26 & 27)
(Superseded to 5061712SM)

$154.99

$

In Stock, Qty 6

0

26

Simplicity 5023121SM

GROMMET

$15.99

$

Usually ships in 2-12 days

0

27

Simplicity 5023119

FITTING, Elbow, 5/8"
(Superseded to 5023119SM)

$26.99

$

Usually ships in 2-12 days

0

28

Simplicity 5021164SM

HOSE CLAMP, #10

$3.99

$

In Stock, only 1 left!

0

29

Simplicity 5050933X22YP

HOSE, 5/8" PUSH-ON, 22.00"

Note: (Cut to fit)

$37.99

$

Usually ships in 2-12 days

0

30

Simplicity 5022633SM

FITTING, Hydraulic, O-Ring Adapter

$12.99

$

In Stock, only 3 left!

0

31

Simplicity 5102094SM

HYDRAULIC HOSE ASSEMBLY, 21"
(Superseded to 5102094YP)

$104.99

$

In Stock, only 1 left!

0

32

Simplicity 5022710SM

HYDRAULIC HOSE ASSEMBLY, 25"

$131.99

$

In Stock, only 1 left!

0

33

Simplicity 5022709SM

FITTING, Hydraulic, O-RIng, 45 Deg.

$46.99

$

In Stock, only 2 left!

0

34

Simplicity 5022634SM

FITTING, Hydraulic, O-Ring Adapter

$15.99

$

In Stock, Qty 8

0

35A

Simplicity 5022975LSM

HYDRAULIC WHEEL MOTOR-LEFT, Complete (includes Ref No. 36 & 37)(ZT2148T - S/N: 678 & below)(ZT2352T - S/N: 835 & below)

$1658.99

$

Usually ships in 2-12 days

0

35B

Simplicity 5022974LSM

HYDRAULIC WHEEL MOTOR-LEFT, Complete (includes Ref No. 36 & 37)(ZT2148T - S/N: 679 & above)(ZT2348T - all)(ZT2352T - S/N: 836 & above)

$3014.99

$

Usually ships in 2-12 days

0

36

Simplicity 5022042X2SM

KEY

$10.99

$

In Stock, only 1 left!

0

37

Simplicity 5220423

NUT & COTTER PIN
(Superseded to 5022042X3SM)

$34.99

$

In Stock, only 1 left!

0

38A

Simplicity 5022975RSM

HYDRAULIC WHEEL MOTOR-RIGHT, Complete (includes Ref No. 36 & 37)(ZT2148T - S/N: 678 & below)(ZT2352T - S/N: 835 & below)

$1880.99

$

Usually ships in 2-12 days

0

38B

Simplicity 5022974RSM

HYDRAULIC WHEEL MOTOR-RIGHT, Complete (includes Ref No. 36 & 37)(ZT2148T - S/N: 679 & above)(ZT2348T - all)(ZT2352T - S/N: 836 & above)

$1994.99

$

Usually ships in 2-12 days

0
