ZT 2148 T - Simplicity Colt 48" Zero-Turn Mower, 21hp Kohler 48" & 52" Mower Decks - Rear Mount Bars (7090rmb) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Kohler

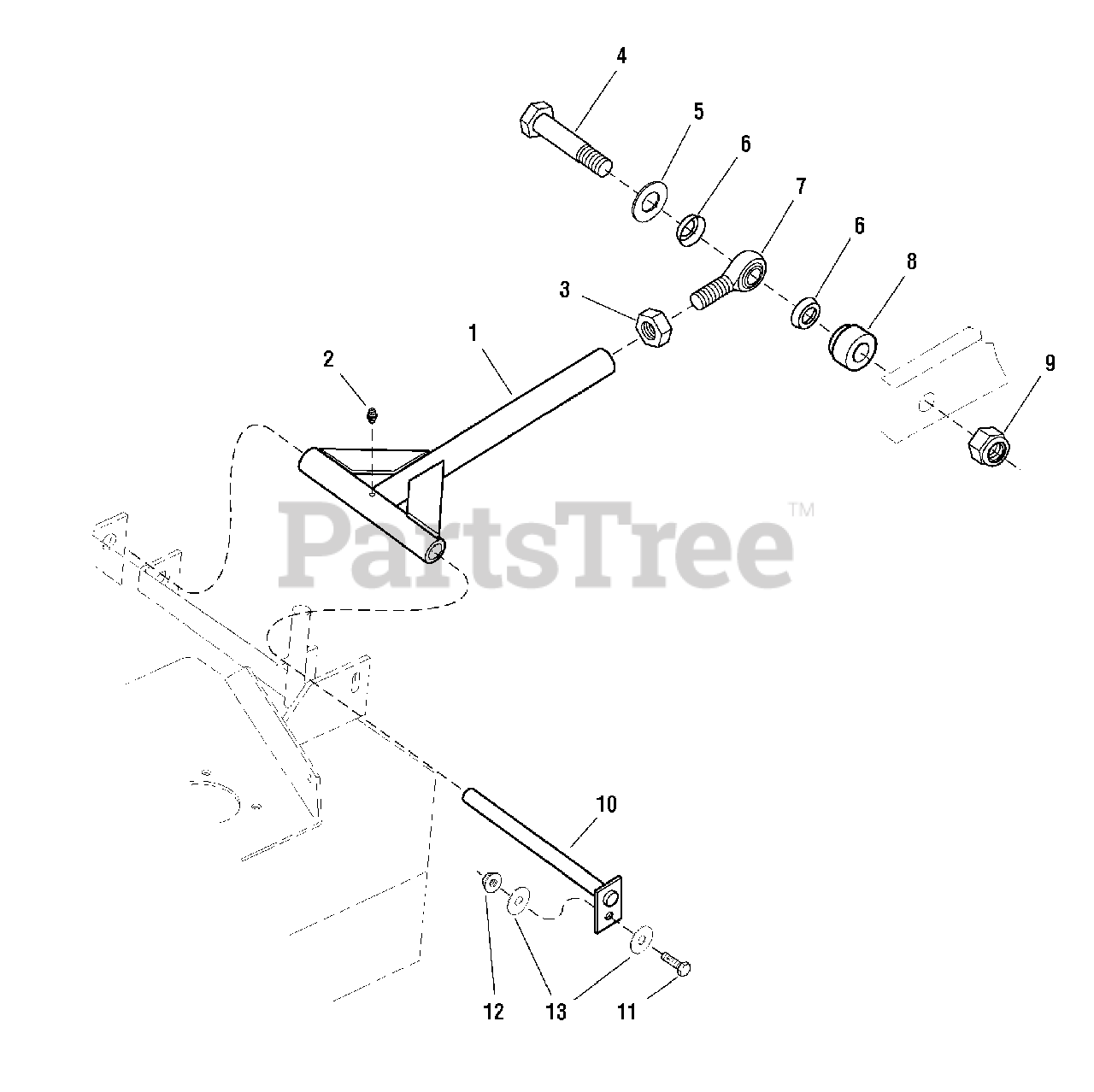

48" & 52" Mower Decks - Rear Mount Bars (7090rmb) Parts Diagram

  • Title

1

Simplicity 5045009CSM

PUSHER BAR ASSEMBLY

$202.99

$

Usually ships in 2-12 days

0

2

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 3 left!

0

3

Simplicity 5025093SM

NUT, Hex, Jam, 3/4-16

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 502526532

CAPSCREW, Hex Hd, 3/4-16 x 4

$

$

Not available

5

Simplicity 5025160SM

WASHER, 3/4

$3.99

$

In Stock, Qty 5

0

6

Simplicity 5022111SM

ROD END SEAL

$15.99

$

In Stock, Qty 8

0

7

Simplicity 5022039SM

BALL JOINT, 3/4-16

$37.99

$

In Stock, Qty 13

0

8

Simplicity 5046093SM

SPACER, .75 x 1.50 x 1.00

$10.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025284SM

NUT, Hex, Nylon Lock, 3/4-16

$3.49

$

In Stock, only 3 left!

0

10

Simplicity 5045037SM

WELD, DECK MOUNT SHAF
(Superseded to 5045037CSM)

Note: SECURE W/ 5025013X8 & 5101414

$

$

Not available

11

Simplicity 5025013X10SM

CAPSCREW, Hex Hd, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 12

0

12

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0
