ZT 2148 B - Simplicity Colt 48" Zero-Turn Mower, 21hp Briggs & Stratton Mower Drive Group (7034mdg) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Briggs & Stratton

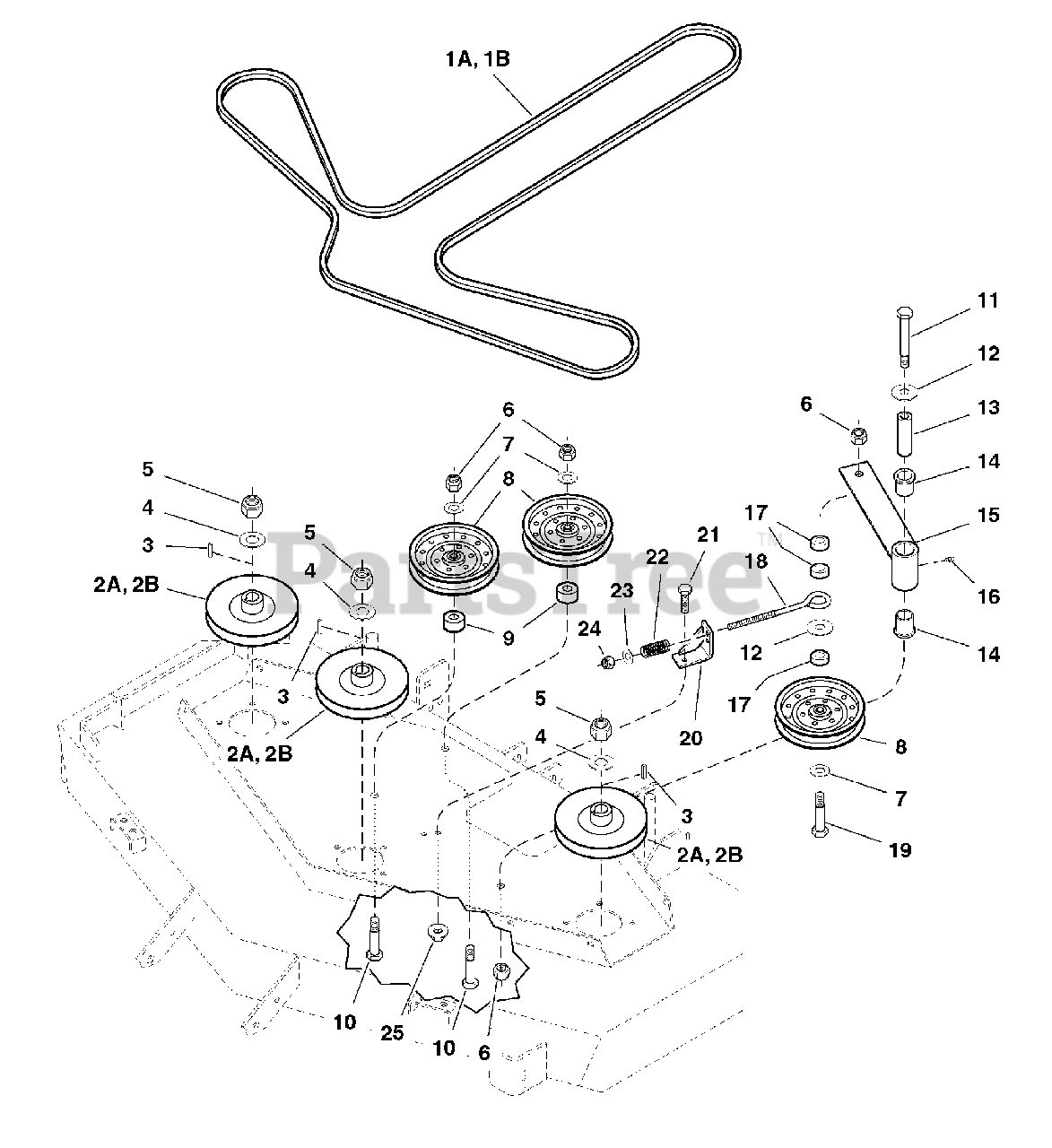

Mower Drive Group (7034mdg) Parts Diagram

  • Title

1A

Simplicity 5022667SM

BELT (48" Deck)

$112.99

$

In Stock, only 1 left!

0

1B

Simplicity 5103587YP

BELT, 5V-SEC, 150.9" EL, LRG ARAMID, WRPD, RC (52" Deck)

$158.99

$

In Stock, only 1 left!

0

2A

Simplicity 5022622SM

PULLEY, Spindle (48" Deck)

$82.99

$

Usually ships in 2-12 days

0

2B

Simplicity 5022721SM

PULLEY, Spindle (52" Deck)

$158.99

$

Usually ships in 2-12 days

0

3

Simplicity 5050407X5SM

KEY, 1/4" x 1-1/4"

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025318SM

WASHER, Spring

$11.99

$

Usually ships in 2-12 days

0

5

Simplicity 5025319SM

NUT, Hex, Nylon Lock, 5/8-18

$3.49

$

Usually ships in 2-12 days

0

6

Simplicity 5025056SM

NUT, Hex, Nylon Lock, 1/2-13
(Superseded to 7091325YP)

$4.99

$

In Stock, only 1 left!

0

7

Simplicity 5025158SM

WASHER, 1/2

$3.99

$

In Stock, Qty 8

0

8

Simplicity 5103800YP

*PULLEY, FLAT IDLER, 6-3/4"

Note: *If not present, order 5025158SM - washer and 5101103SM - shield.

$54.99

$

In Stock, Qty 5

0

9

Simplicity 5047142SM

SPACER, Idler Pulley

$8.99

$

In Stock, Qty 8

0

10

Simplicity 502501724

CAPSCREW, Hex Hd, 1/2-13 x 3

$

$

Not available

11

Simplicity 502501736

CAPSCREW, Hex Hd, 1/2-13 x 4-1/2

$

$

Not available

12

Simplicity 5025150SM

WASHER, USS, 1/2

$3.99

$

Usually ships in 2-12 days

0

13

Simplicity 5045022SM

IDLER ARM PIVOT SHAFT

$24.99

$

In Stock, only 2 left!

0

14

Simplicity 5021541SM

BUSHING, Flange

$9.99

$

In Stock, Qty 18

0

15

Simplicity 1845106

IDLER ARM
(Superseded to 5045106E)

$

$

Not available

16

Simplicity 5020095SM

GREASE FITTING

$3.99

$

In Stock, only 3 left!

0

17

Simplicity 5045023009

SPACER, Idler

$

$

Not available

18

Simplicity 5021811SM

EYEBOLT

$8.49

$

In Stock, Qty 12

0

19

Simplicity 5025017X28SM

CAPSCREW, Hex Hd, 1/2-13 x 3-1/2

$5.99

$

In Stock, only 2 left!

0

20

Simplicity 1845200

SPRING ANCHOR
(Superseded to 5045200E)

$

$

Not available

21

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0

22

Simplicity 5022788SM

SPRING, Compression, 2"

$36.99

$

In Stock, only 1 left!

0

23

Simplicity 5025156SM

WASHER, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 17

0

24

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 5025128SM

NUT, Hex, Serrated Flange, 3/8-16

$3.49

$

In Stock, only 2 left!

0
