ZT 2148 B - Simplicity Colt 48" Zero-Turn Mower, 21hp Briggs & Stratton Motion Control Group (7034mcg) Parts Diagram

Colt 48" Zero-Turn Mower, 21hp Briggs & Stratton

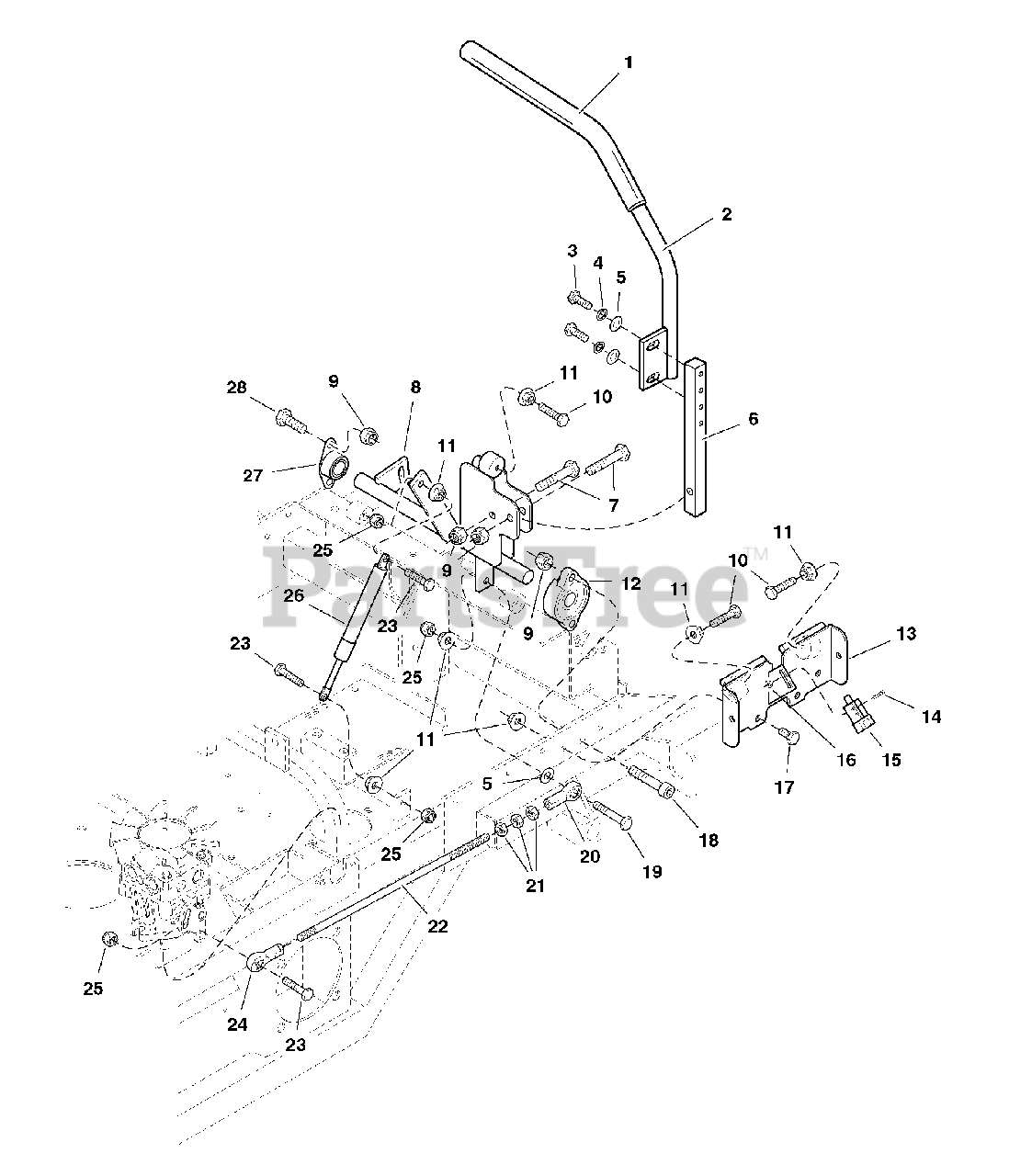

Motion Control Group (7034mcg) Parts Diagram

  • Title

1

Simplicity 5022068SM

FOAM GRIP

$11.99

$

Usually ships in 2-12 days

0

2

Simplicity 1847056

MOTION CONTROL LEVER-RH
(Superseded to 5047056E)

$

$

Not available

*

Simplicity 1847055

MOTION CONTROL LEVER-LH (not shown)
(Superseded to 5047055E)

$

$

Not available

3

Simplicity 5025011X6SM

CAPSCREW, Hex Hd, 5/16-18 x 3/4

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 5025170SM

WASHER, Lock, 5/16

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 5025155SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

6

Simplicity 5047004A

MOUNT, CONTROL ARM - BLK
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025013X14SM

CAPSCREW, Hex Hd, 3/8-16 x 1-3/4

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 1847045

CONTROL SHAFT-RH
(Superseded to 5047045E)

$

$

Not available

*

Simplicity 1847044

CONTROL SHAFT-LH (not shown)
(Superseded to 5047044E)

$

$

Not available

9

Simplicity 5025096SM

NUT, Hex, Nylon Lock, 3/8-16

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 5025011X14SM

CAPSCREW, Hex Hd, 5/16-18 x 1-3/4

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1931277SM

NUT, Hex, Serrated Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Simplicity 5021499SM

BEARING, Flange

$55.99

$

In Stock, only 2 left!

0

13

Simplicity 1847081

NEUTRAL LOCK BRACKET-RH

$

$

Not available

*

Simplicity 1847080

NEUTRAL LOCK BRACKET-LH (not shown)

$

$

Not available

14

Simplicity 5025270SM

SCREW, #10-24 x 1

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 20+

0

16

Simplicity 5025029SM

NUT, Hex, #10-24

$2.99

$

Usually ships in 2-12 days

0

17

Simplicity 5025011X8SM

CAPSCREW, Hex Hd, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025327SM

CAPSCREW, Allen Hd, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 5025011X14SM

CAPSCREW, Hex Hd, 5/16-18 x 1-3/4

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

Usually ships in 2-12 days

0

21

Simplicity 5025033SM

NUT, Hex, 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 5047102SM

HYDRO CONTROL ROD

$32.99

$

Usually ships in 2-12 days

0

23

Simplicity 5025011X10SM

CAPSCREW, Hex Hd, 5/16-18 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

25

Simplicity 5025057SM

NUT, Hex, Nylon Lock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

26

Simplicity 5022978

DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

27

Simplicity 5021098SM

BEARING, Flange

$13.99

$

In Stock, Qty 5

0

28

Simplicity 5025013X8SM

CAPSCREW, Hex Hd, 3/8-16 x 1

$3.99

$

In Stock, Qty 6

0
