ZT 21420 (7800796) - Simplicity 42" Zero-Turn Mower, 21hp Frame Assembly & Rear Bumper Group Parts Diagram

42" Zero-Turn Mower, 21hp

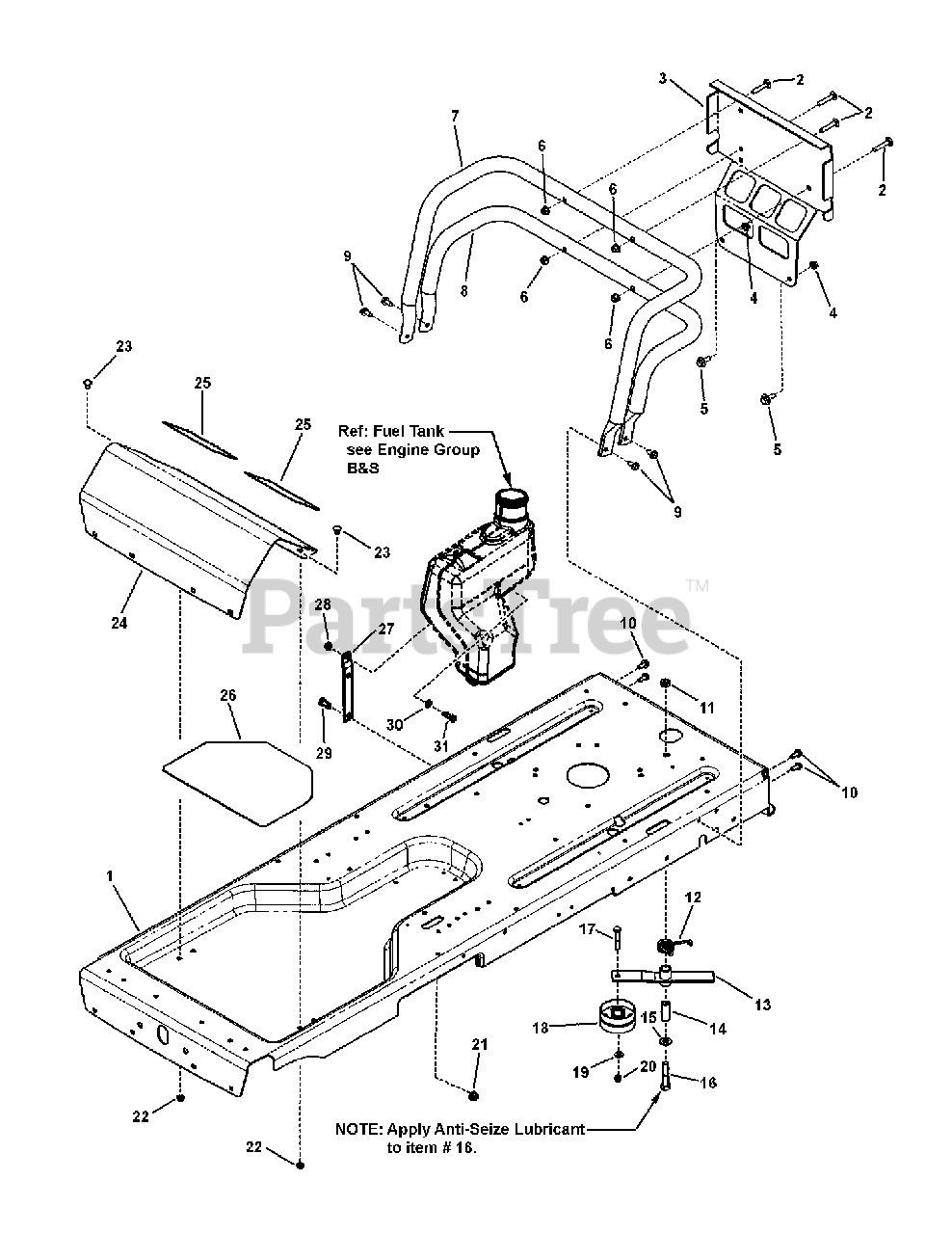

Frame Assembly & Rear Bumper Group Parts Diagram

  • Title

1

Simplicity 7301073C

FRAME, RZT
(Superseded to 7301073CYP)

$826.99

$

Usually ships in 2-12 days

0

2

Simplicity 1931338

BOLT, 5/16-18 x 1-3/4" Round Head Short Square Neck, GR 5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

3

Simplicity 7301121C

PLATE, Brand
(Superseded to 7301121CYP)

$55.99

$

Usually ships in 2-12 days

0

4

Simplicity 1927557

NUT, 5/16-18 Hex Flange Lock, Large, Black
(Superseded to 703330)

$4.99

$

In Stock, Qty 14

0

5

Simplicity 1716654

SHOULDER BOLT, 5/16-18 x 3/4
(Superseded to 1716654SM)

$5.49

$

In Stock, only 1 left!

0

6

Simplicity 1960686

NUT, 5/16-18 Hex Flange Nyloc
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 7301123BM

BUMPER TUBE, Upper
(Superseded to 7301123BMYP)

$142.99

$

Usually ships in 2-12 days

0

8

Simplicity 7301124BM

BUMPER TUBE, Lower
(Superseded to 7301124BMYP)

$64.99

$

In Stock, only 1 left!

0

9

Simplicity 1664847SM

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap, YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 7091894

NUT, 1/2-13 Hex Center Lock, GR 5, YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

12

Simplicity 7044760

SPRING, Torsion, RH Wind

$33.99

$

In Stock, only 2 left!

0

13

Simplicity 7400208BM

WELDMENT, Hydro Idler
(Superseded to 7400208BMYP)

$45.99

$

In Stock, only 1 left!

0

14

Simplicity 7200034

SPACER, Hydro Idler
(Superseded to 7200034SM)

$

$

Not available

15

Simplicity 7091587

WASHER, 1/2" Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 7091218

SCREW, 1/2-13 x 2-1/2" Hex Head Cap, GR 5, BP
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 7091305SM)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 7100103

IDLER, 3.25 OD x.391 ID x 1.63, Backside
(Superseded to 7100103SM)

$43.99

$

In Stock, Qty 8

0

19

Simplicity 7090122

WASHER, 3/8" Flat (SAE)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Simplicity 7091585

NUT, 3/8-16 Hex Center Lock, GR 5, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

21

Simplicity 1931211

NUT, 3/8-16 Hex Flange lock, GR F, BZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

22

Simplicity 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

23

Simplicity 7090799

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck, GR 5, YZ
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

24

Simplicity 7300140C

FOOTREST, SNAPPER
(Superseded to 7300140CYP)

$85.99

$

Usually ships in 2-12 days

0

25

Simplicity 7104571

FOOT PAD, Wide
(Superseded to 7104571YP)

$17.99

$

In Stock, Qty 5

0

26

Simplicity 7103830

MAT, Floor Pan
(Superseded to 7103830YP)

$33.99

$

Usually ships in 2-12 days

0

27

Simplicity 7301110BM

BRACKET, Support, Fuel Tank
(Superseded to 7301110BMYP)

$11.99

$

Usually ships in 2-12 days

0

28

Simplicity 7091298

NUT, 5/16-18 Hex Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

29

Simplicity 7091086

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR 5, ZP
(Superseded to 703237)

Note: (or 7090134)

$4.99

$

Usually ships in 2-12 days

0

30

Simplicity 720163

WASHER, 5/16" Flat
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

31

Simplicity 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0
