ZT 21420 (7800796) - Simplicity 42" Zero-Turn Mower, 21hp Fender Group Parts Diagram

42" Zero-Turn Mower, 21hp

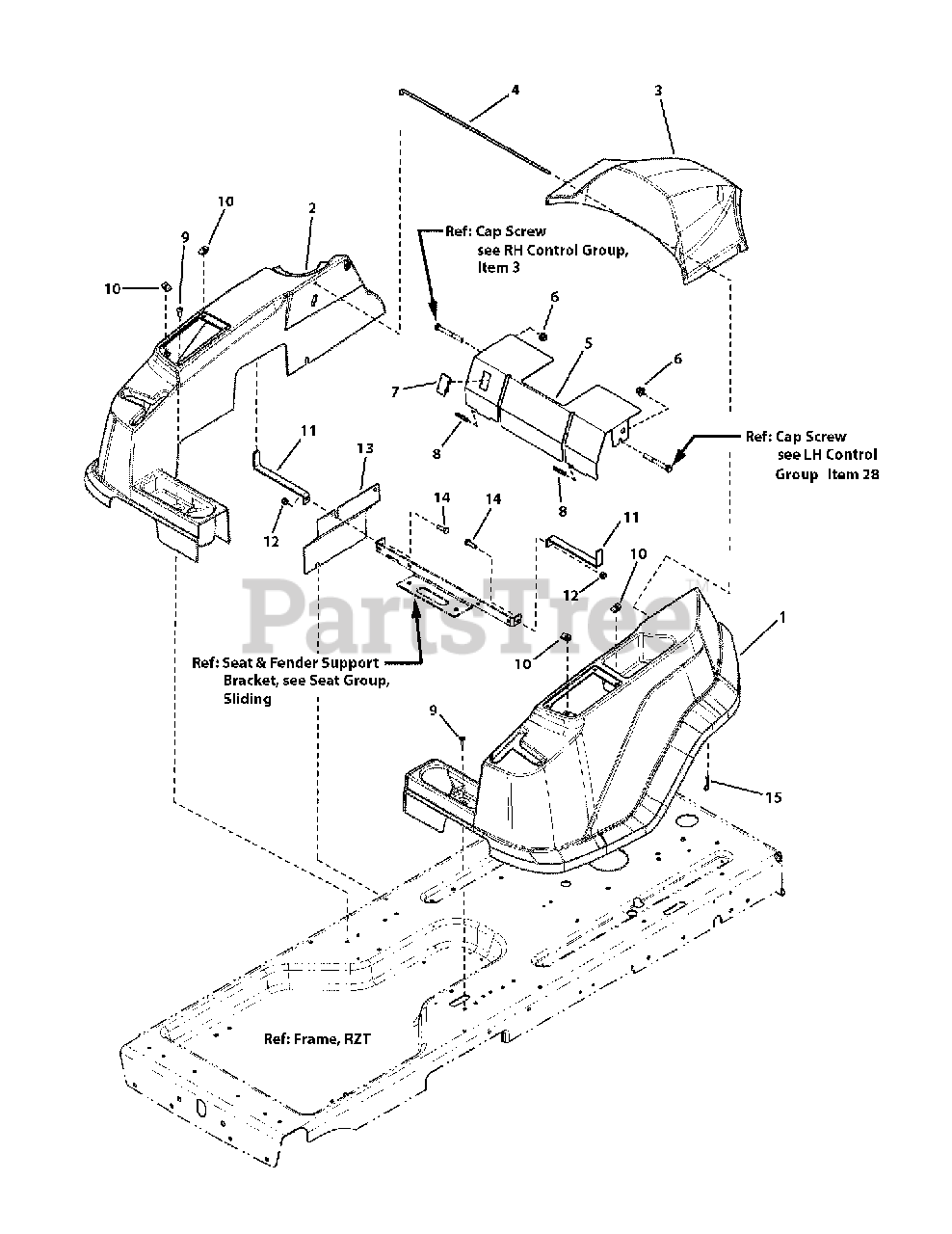

Fender Group Parts Diagram

  • Title

1

Simplicity 7103776

FENDER, LH
(Superseded to 7103776YP)

$302.99

$

Usually ships in 2-12 days

0

2

Simplicity 7103775

FENDER, RH
(Superseded to 7103775YP)

$347.99

$

Usually ships in 2-12 days

0

3

Simplicity 7103777

COVER, Engine
(Superseded to 7103777YP)

$68.99

$

Usually ships in 2-12 days

0

4

Simplicity 7103998

ROD, Pivot, Hood
(Superseded to 7103998YP)

$47.99

$

Usually ships in 2-12 days

0

5

Simplicity 7301161BZ

COVER, Battery
(Superseded to 7301161BZYP)

$142.99

$

Usually ships in 2-12 days

0

6

Simplicity 1960687

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

7

Simplicity 1722611

PLUG, Switch Hole
(Superseded to 1722611SM)

$6.99

$

In Stock, only 1 left!

0

8

Simplicity 7104514

STRIP, Trim, 1-1/2" long
(Superseded to 7104514YP)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 7091246

SCREW, 1/4-20 x 3/4" Pan Head Self-Tap (Torx) BZ
(Superseded to 7091246YP)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 7023295

U-NUT, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 7301101BM

BRACKET, Support, Fender
(Superseded to 7301101BMYP)

$11.99

$

Usually ships in 2-12 days

0

12

Simplicity 7091298

NUT, 5/16-18 Hex Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

13

Simplicity 7301126BM

PLATE, Side, RH
(Superseded to 7301126BMYP)

$26.99

$

Usually ships in 2-12 days

0

14

Simplicity 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

15

Simplicity 1722460

HAIRPIN, Quick, .080 Wire
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0
