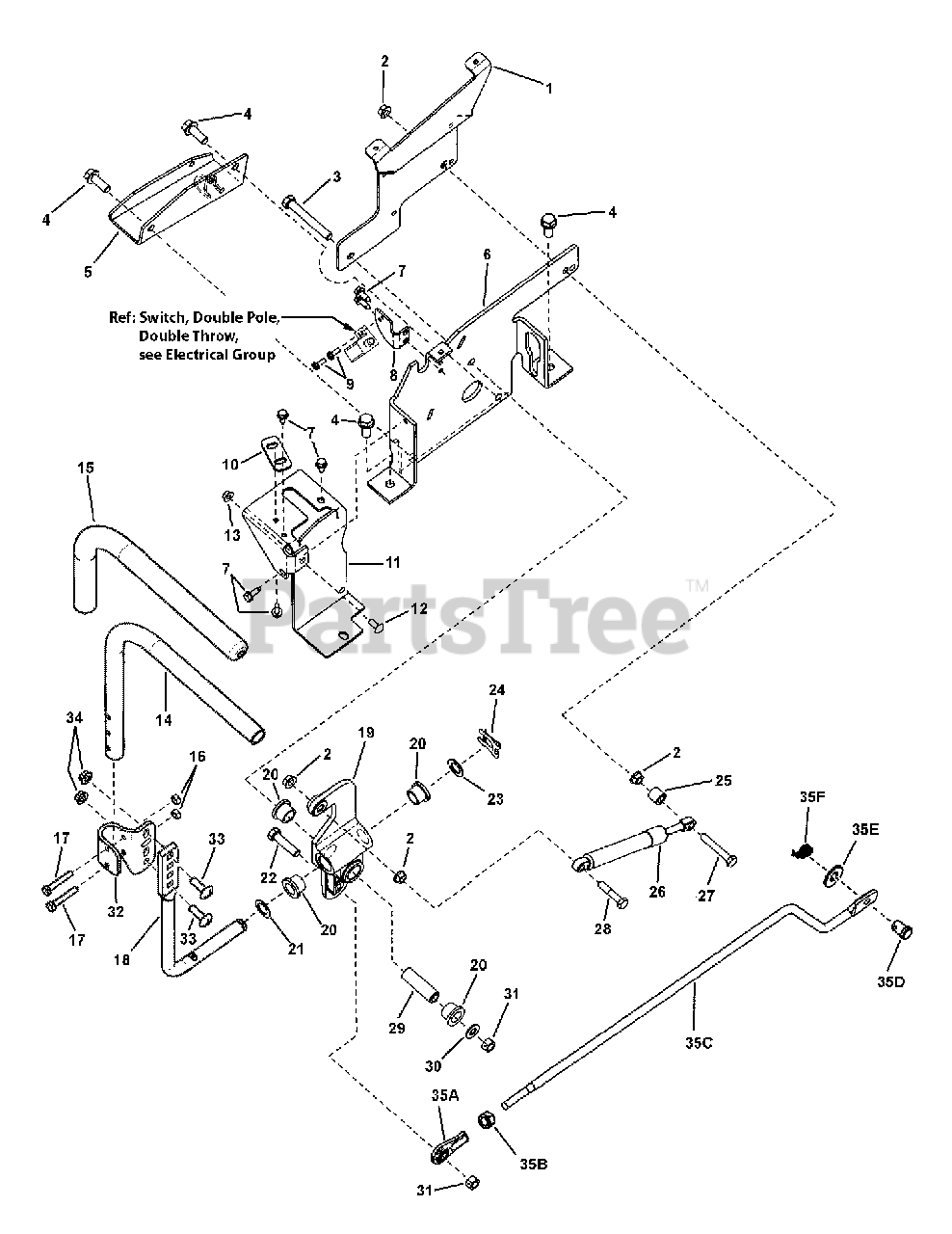

ZT 21420 (7800796) - Simplicity 42" Zero-Turn Mower, 21hp Control Group, RH w/Electric Height-of-Cut Parts Diagram

42" Zero-Turn Mower, 21hp

Control Group, RH w/Electric Height-of-Cut Parts Diagram

  • Title

1

Simplicity 7301072BM

BRACKET, Fender Support, RH
(Superseded to 7301072BMYP)

$23.99

$

Usually ships in 2-12 days

0

2

Simplicity 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

3

Simplicity 1922918

SCREW, 3/8-16 x 3-1/4" Hex Head Cap, GR 5, Black
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

4

Simplicity 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

5

Simplicity 7301103BM

BRACKET, Motor Mount
(Superseded to 7301103BMYP)

$14.99

$

Usually ships in 2-12 days

0

6

Simplicity 7043330BM

BRACKET, Control, RH
(Superseded to 7043330BMYP)

$33.99

$

Usually ships in 2-12 days

0

7

Simplicity 7090290

SCREW, 1/4-20 x 3/4" Hex Washer Self-Tap, Black
(Superseded to 703466)

Note: (or 7091686)

$3.99

$

In Stock, Qty 11

0

8

Simplicity 7300032BM

BRACKET, Switch
(Superseded to 7300032BMYP)

$9.99

$

Usually ships in 2-12 days

0

9

Simplicity 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

10

Simplicity 7300009A

PLATE, Fwd/Rev Adjust
(Superseded to 7300009BMYP)

$8.49

$

Usually ships in 2-12 days

0

11

Simplicity 7301129BM

BRACKET, Guide, Stick, Control, RH
(Superseded to 7301129BMYP)

$54.99

$

Usually ships in 2-12 days

0

12

Simplicity 7091573

BOLT, 1/4-20 x 5/8" Round Head Short Square Neck, GR 5, YZ
(Superseded to 7091573YP)

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1960294

NUT, 1/4-20 Hex Flange Lock, Black
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

14

Simplicity 7301168BZ

HANDLE, Adjustable
(Superseded to 7301168BZYP)

$30.99

$

Usually ships in 2-12 days

0

15

Simplicity 7100051

GRIP, Handle
(Superseded to 7100051YP)

$10.99

$

Usually ships in 2-12 days

0

16

Simplicity 7090372

NUT, 1/4-20 Hex Center Lock, GR 5 BZ
(Superseded to 703954)

$

$

Not available

17

Simplicity 1922837

SCREW, 1/4-20 x 1-1/2" Hex Head Cap, GR 5, Black
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

18

Simplicity 7104677

ROD, Handle, Adjustable
(Superseded to 7104677YP)

$40.99

$

In Stock, only 1 left!

0

19

Simplicity 7100717

ARM, Control, Die Cast, RH
(Superseded to 7100717YP)

$30.99

$

Usually ships in 2-12 days

0

20

Simplicity 7013874

BUSHING, Bronze, 5/8 x 5/8

$5.49

$

Usually ships in 2-12 days

0

21

Simplicity 7091628

WASHER, 5/8" Flat, YZ
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

22

Simplicity 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, GR 5, YZ
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

23

Simplicity 7900016

WASHER, 5/8 ID. x 1" OD. x .065 Nylon
(Superseded to 7900016SM)

$3.49

$

Usually ships in 2-12 days

0

24

Simplicity 7104704

CLIP, Spring, 5/8 OD Shaft
(Superseded to 7104704YP)

$5.49

$

Usually ships in 2-12 days

0

25

Simplicity 7023206

SPACER, .625 OD x .380 ID x .564 L
(Superseded to 7023206YP)

$8.49

$

Usually ships in 2-12 days

0

26

Simplicity 5100728

DAMPENER, Control
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 17

0

27

Simplicity 7027174

SCREW, 5/16-18 x 2" Hex Head Cap, GR 5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

28

Simplicity 7091540

SCREW, 5/16-18 x 1-1/2 Hex Head Cap, GR 5, YZ
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

29

Simplicity 7100714

SPACER, Sleeve, RZT
(Superseded to 7100714YP)

$16.99

$

Usually ships in 2-12 days

0

30

Simplicity 7090122

WASHER, 3/8" Flat (SAE) YZ
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

31

Simplicity 7091585

NUT, 3/8-16 Hex Center Lock, GR 5, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

32

Simplicity 7074628BZYP

BRACKET, Handle Adjustment

$12.99

$

Usually ships in 2-12 days

0

33

Simplicity 7091714

BOLT, 5/16-18 x 1" Round Head Square Neck, GR 5, YZ
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

34

Simplicity 1935048

NUT, 5/16-18 Hex Flange Two-Way Lk Ga
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

35A

Simplicity 7100743

ROD END (3/8-24 thread)
(Superseded to 7100743YP)

$10.99

$

In Stock, only 2 left!

0

35B

Simplicity 7091630

NUT, 3/8-24 Hex, GR 5, YZ
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

35C

Simplicity 7104168

ROD, Link Forward/Reverse
(Superseded to 7104168YP)

$30.99

$

Usually ships in 2-12 days

0

35D

Simplicity 7900000

CLEVIS PIN, 7/16 X 1"
(Superseded to 7900000SM)

$6.99

$

Usually ships in 2-12 days

0

35E

Simplicity 7031961

WASHER, 7/16" Flat
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

35F

Simplicity 7091594

COTTER PIN, 1/2 Self, YZ
(Superseded to 7091594SM)

$2.99

$

In Stock, only 2 left!

0
