ZT 21420 (7800796) - Simplicity 42" Zero-Turn Mower, 21hp 42" Deck Lift Group (w/electric Height-of-Cut) Parts Diagram

42" Zero-Turn Mower, 21hp

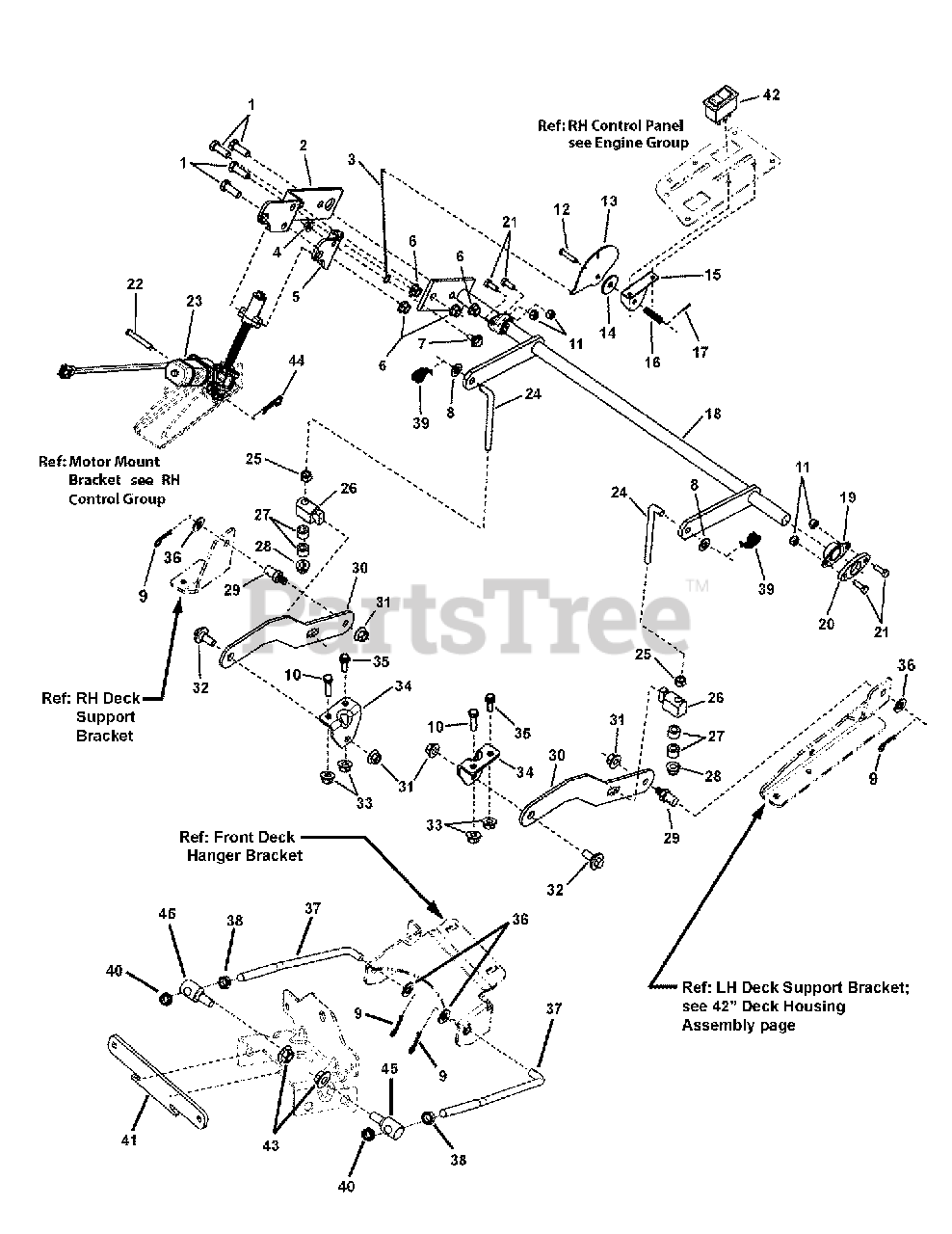

42" Deck Lift Group (w/electric Height-of-Cut) Parts Diagram

  • Title

1

Simplicity 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

2

Simplicity 7301104BM

BRACKET, Lift, Deck, Primary
(Superseded to 7301104BMYP)

$

$

Not available

3

Simplicity 7103956

ROD, Indicator, Height-Of-Cut
(Superseded to 7103956YP)

$9.99

$

In Stock, only 1 left!

0

4

Simplicity 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, YZ

Note: (Was 7091584)

$4.49

$

In Stock, Qty 6

0

5

Simplicity 7301105BM

BRACKET, Lift, Deck, Secondary
(Superseded to 7301105BMYP)

$15.99

$

Usually ships in 2-12 days

0

6

Simplicity 7091619

NUT, 3/8-16 Hex Flange lock, YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 720100

SHOULDER BOLT, 1/4-20 x 3/8"
(Superseded to 009X54MA)

$5.49

$

In Stock, only 1 left!

0

8

Simplicity 7090122

WASHER, 3/8" Flat (SAE)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

9

Simplicity 7091503

HAIR PIN, 3/32 x 1-1/2" YZ
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

10

Simplicity 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

11

Simplicity 7092126

NUT, 1/4-20 Hex Center Lock, GR 5
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

12

Simplicity 724579

CLEVIS PIN, .25 x 1.09
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 7

0

13

Simplicity 7301119BC

LEVER, Indicator, Height-Of-Cut
(Superseded to 7301119BCYP)

$8.49

$

Usually ships in 2-12 days

0

14

Simplicity 7023649

WASHER, 5/16" Nylon
(Superseded to 7023649YP)

$4.49

$

In Stock, only 2 left!

0

15

Simplicity 7301120BM

BRACKET, Indicator, Height-Of-Cut
(Superseded to 7301120BMYP)

$9.99

$

Usually ships in 2-12 days

0

16

Simplicity 722412

SPRING, Compression
(Superseded to 164X34MA)

$5.99

$

In Stock, Qty 18

0

17

Simplicity 7090673

COTTER PIN, .06 x 1/2", YZ
(Superseded to 703464)

Note: (or 7091629)

$4.49

$

In Stock, only 1 left!

0

18

Simplicity 7400011BM

WELDMENT, Deck Lift, 38/42
(Superseded to 7400011BMYP)

$193.99

$

In Stock, only 1 left!

0

19

Simplicity 7026196

BEARING, Flange, .75 ID PM
(Superseded to 7026196SM)

$7.49

$

In Stock, only 2 left!

0

20

Simplicity 7301125BM

SPACER, Bearing, .25"
(Superseded to 7301125BMYP)

$12.99

$

In Stock, only 2 left!

0

21

Simplicity 7091495

SCREW, 1/4-20 x 3/4" Hex Head Cap, GR 5 YZ
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

22

Simplicity 1668344

SHEAR PIN, .248 ID x 1-3/4" Long
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 7103818

MOTOR, Actuator, Lift, Deck
(Superseded to 7103818YP)

$148.99

$

In Stock, Qty 13

0

24

Simplicity 1734217

ROD, Mower Lift (3/8-16 thread) Yellow
(Superseded to 1734217SM)

$14.99

$

In Stock, Qty 6

0

25

Simplicity 1916950

NUT, 3/8-16 Hex, Black
(Superseded to 703577)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1731894

TRUNNION, Powdered Metal, Yellow, Regent
(Superseded to 1731894SM)

$9.99

$

In Stock, only 3 left!

0

27

Simplicity 1666294

SPACER, .385 ID x .6697 OD x .455 Long, PM YEL
(Superseded to 1666294SM)

$4.99

$

In Stock, Qty 20+

0

28

Simplicity 1960687

NUT, 3/8-16 Hex Flange Esna, Black
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

29

Simplicity 721221

PIN, 3/8-16 Threaded Shoulder
(Superseded to 704054)

$7.49

$

In Stock, Qty 20+

0

30

Simplicity 7301098BM

BAR, Rear Lift
(Superseded to 7301098BMYP)

$28.99

$

In Stock, Qty 5

0

31

Simplicity 720148

NUT, 3/8-16 Hex Flange Center Lock, Zinc Plated
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

32

Simplicity 1732129

SHOULDER BOLT, 3/8-16 x .94, BZ
(Superseded to 1732129SM)

$5.99

$

Usually ships in 2-12 days

0

33

Simplicity 7091601

NUT, 5/16-18 Flange Lock, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

34

Simplicity 7300028BM

BRACKET, Deck Hanger
(Superseded to 7300028BMYP)

$14.99

$

Usually ships in 2-12 days

0

35

Simplicity 7091811

BOLT, 5/16-18 x 5/8" Hex Flange lock, GR 5, YZ
(Superseded to 7091811SM)

$3.99

$

In Stock, Qty 5

0

36

Simplicity 1960170

WASHER, 1/2" Flat (0.51 ID x 1.00 OD x .10 Thick) Black
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

37

Simplicity 1736081

ROD, Front Bail (1/2-13 thread) 46, 52" MWR
(Superseded to 1736081YP)

$12.99

$

Usually ships in 2-12 days

0

38

Simplicity 1913744

NUT, 1/2-13 Hex Jam, Black
(Superseded to 1913744SM)

$4.99

$

In Stock, Qty 19

0

39

Simplicity 7091593

COTTER PIN, Self Locking, 3/8, YZ
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

40

Simplicity 1960379

NUT, 1/2-13 Jam, Esna Light Thin
(Superseded to 1960379SM)

$4.99

$

In Stock, Qty 18

0

41

Simplicity 7301097BM

SUPPORT, Hanger (46/52)
(Superseded to 7301097BMYP)

$10.99

$

Usually ships in 2-12 days

0

42

Simplicity 1734141

SWITCH, Rocker Electric Height-Of-Cut
(Superseded to 1734141SM)

$47.99

$

In Stock, Qty 19

0

43

Simplicity 1930644

NUT, 1/2-13 Hex Flange Two-Way Lock Black
(Superseded to 1930644SM)

$3.49

$

In Stock, Qty 6

0

44

Simplicity 1722460

HAIRPIN, Quick, .080 Wire
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

45

Simplicity 1737417

TRUNNION, Unthreaded
(Superseded to 1737417YP)

$21.99

$

In Stock, only 2 left!

0
