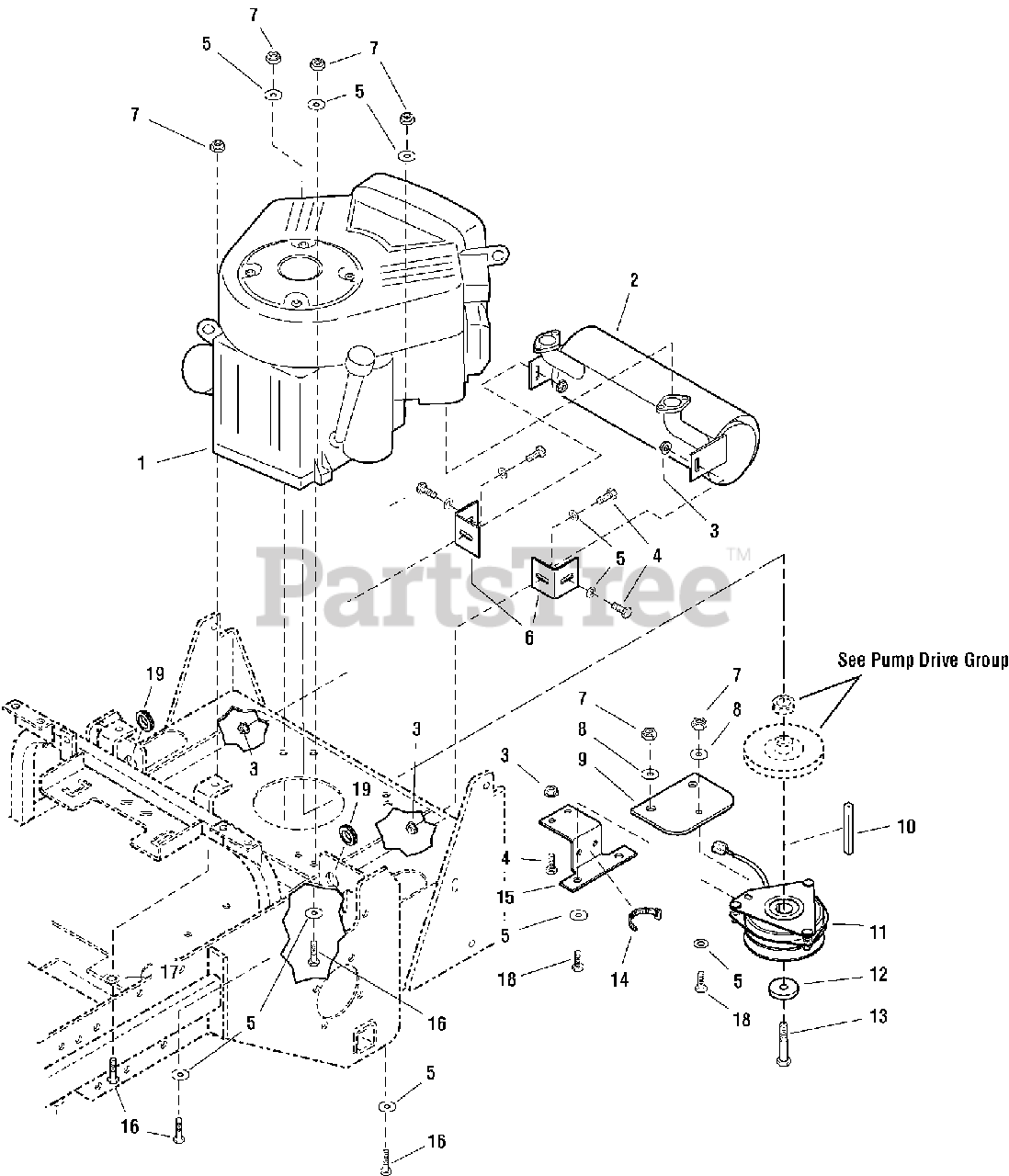

ZT 20500 BV (5091001) - Snapper 50" Zero-Turn Mower, 20hp Engine & PTO Group - 20HP Briggs & Stratton Parts Diagram

50" Zero-Turn Mower, 20hp

Engine & PTO Group - 20HP Briggs & Stratton Parts Diagram

  • Title

1

Snapper 358777-0280-G1

* ENGINE, 20 HP BRIGGS, Mod. 358-777-0280-G1

$

$

Not available

2

Snapper 5023187

MUFFLER
(Superseded to 5023187SM)

$335.99

$

Usually ships in 2-12 days

0

3

Snapper 5025139

NUT, HEX SERRATED FLANGE, 5/16-18
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

4

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

5

Snapper 7091098

WASHER, SAE, 5/16
(Superseded to 703302)

Note: (Was 5025155)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 503848262

BRACKET, MUFFLER SUPPORT (ORANGE)
(Superseded to 5048262CSM)

$5.49

$

Usually ships in 2-12 days

0

6

Snapper 504848262

BRACKET, MUFFLER SUPPORT (RED)

$

$

Currently unavailable

7

Snapper 7091298

NUT, HEX NYLON LOCK, 5/16-18
(Superseded to 703902)

Note: (Was 5025057)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7091098

WASHER, CLUTCH ANCHOR, 5/16 (N/A)
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper 5050407X18

KEY, 1/4 SQ. X 2-1/4
(Superseded to 5050407X18SM)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper 5023100

CLUTCH, ELECTRIC
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

12

Snapper 5042132

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

13

Snapper 5103300

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

14

Snapper 5021030

TIE WRAP
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

15

Snapper 5048226C

CLUTCH ANCHOR (ORANGE)
(Superseded to 5048226CSM)

$

$

Not available

15

Snapper 5048226D

CLUTCH ANCHOR (RED)
(Superseded to 5048226DYP)

$27.99

$

Usually ships in 2-12 days

0

16

Snapper 5025011X14

CAPSCREW, HEX HEAD, 5/16-18 X 1-3/4
(Superseded to 5025011X14SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper 5025188

WASHER, 5/16 INT TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

18

Snapper 5025011X8

CAPSCREW, HEX HEAD, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

19

Snapper 5023236

GROMMET, 3/4"
(Superseded to 5023236SM)

$2.99

$

Usually ships in 2-12 days

0
