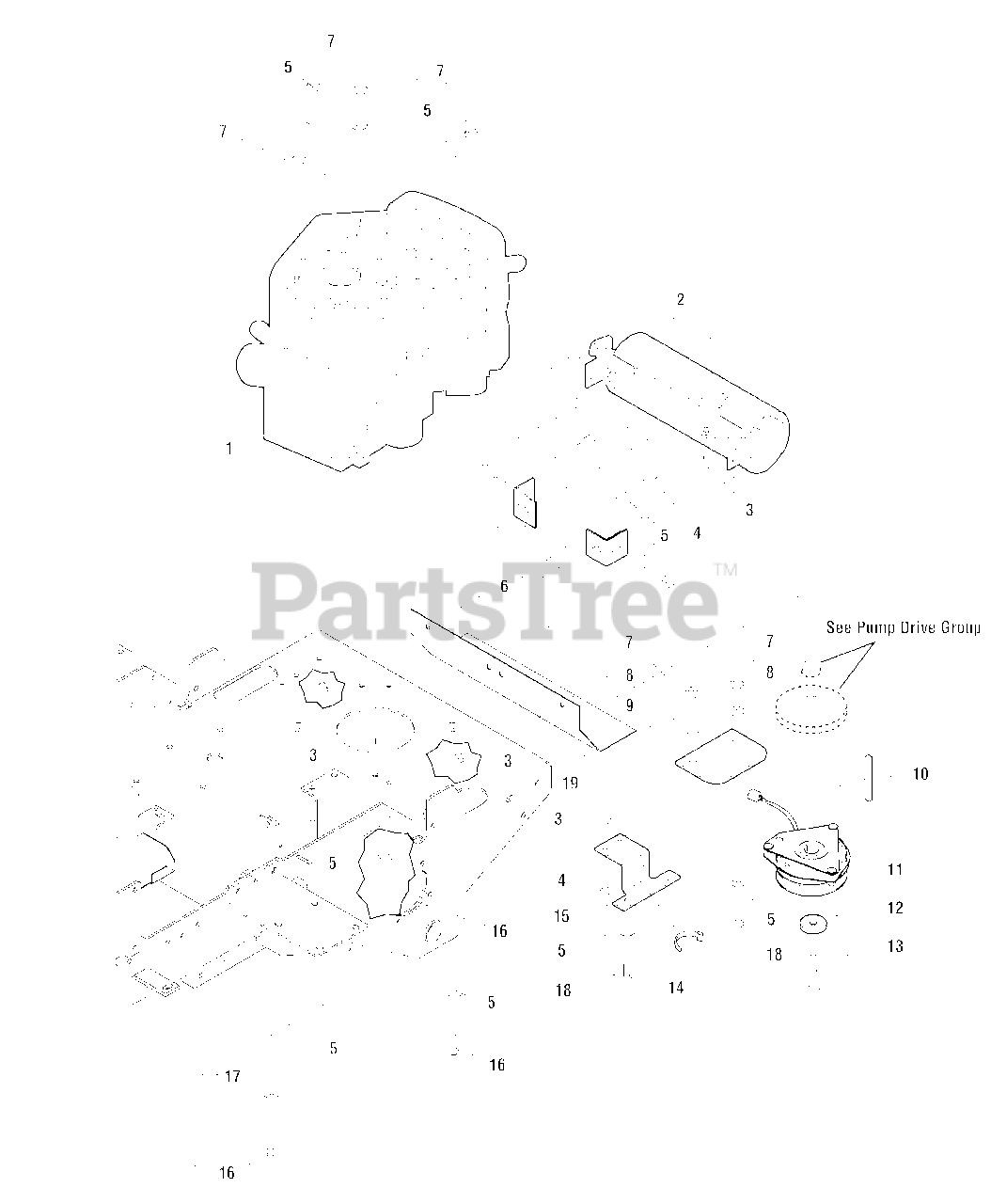

ZT 2050 (2690477) - Massey Ferguson 50" Zero-Turn Mower, 20hp Briggs & Stratton Engine Group - PTO (273ENGB) Parts Diagram

50" Zero-Turn Mower, 20hp Briggs & Stratton

Engine Group - PTO (273ENGB) Parts Diagram

  • Title

1

ENGINE, 20HP BRIGGS

$

$

Not available

2

Simplicity 5023187SM

MUFFLER

$335.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025392SM

NUT, HEX NYLOCK FLANGE, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4

$3.99

$

In Stock, only 2 left!

0

5

Simplicity 5025155SM

WASHER, SAE, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

6

Simplicity 5048262DYP

BRACKET, MUFFLER SUPPORT

$5.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025057SM

NUT, HEX NYLON LOCK, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 5044617SM

WASHER, CLUTCH ANCHOR, 5/16

$8.49

$

In Stock, only 2 left!

0

9

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, only 1 left!

0

10

Simplicity 5050407X18SM

KEY, 1/4 SQ. X 2-1/4

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 5023100SM

CLUTCH, ELECTRIC

$535.99

$

Usually ships in 2-12 days

0

12

Simplicity 5042132SM

SPACER, .45 X 1.62 X .37
(Superseded to 5102965YP)

$23.99

$

Usually ships in 2-12 days

0

13

Simplicity 5103300SM

BOLT, CRANKSHAFT, 7/16-20 X 3-1/4"
(Superseded to 5103300YP)

$5.99

$

In Stock, only 1 left!

0

14

Simplicity 5021030SM

TIE WRAP

$2.99

$

In Stock, only 3 left!

0

15

Simplicity 5048226DYP

CLUTCH ANCHOR

$27.99

$

Usually ships in 2-12 days

0

16

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4

$3.99

$

In Stock, Qty 20+

0

17

Simplicity 5025188SM

WASHER, 5/16 INT TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0

18

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

19

Simplicity 5401071DYP

PLATE, HEAT SHIELD

$27.99

$

Usually ships in 2-12 days

0

20

Simplicity 5048681SM

HOSE, OIL DRAIN

Note: (Not Shown)

$18.99

$

Usually ships in 2-12 days

0

21

Simplicity 5050833X6YP

WIRE LOOM, OIL DRAIN

Note: (Not Shown)

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 5021500SM

CLAMP, VINYL INSULATED

Note: (Not Shown)

$3.99

$

Usually ships in 2-12 days

0
