ZT 18533 (7800360) - Simplicity Axion 33" Zero-Turn Mower, 18.5hp Engine Group - 18.5 H.P. Parts Diagram

Axion 33" Zero-Turn Mower, 18.5hp

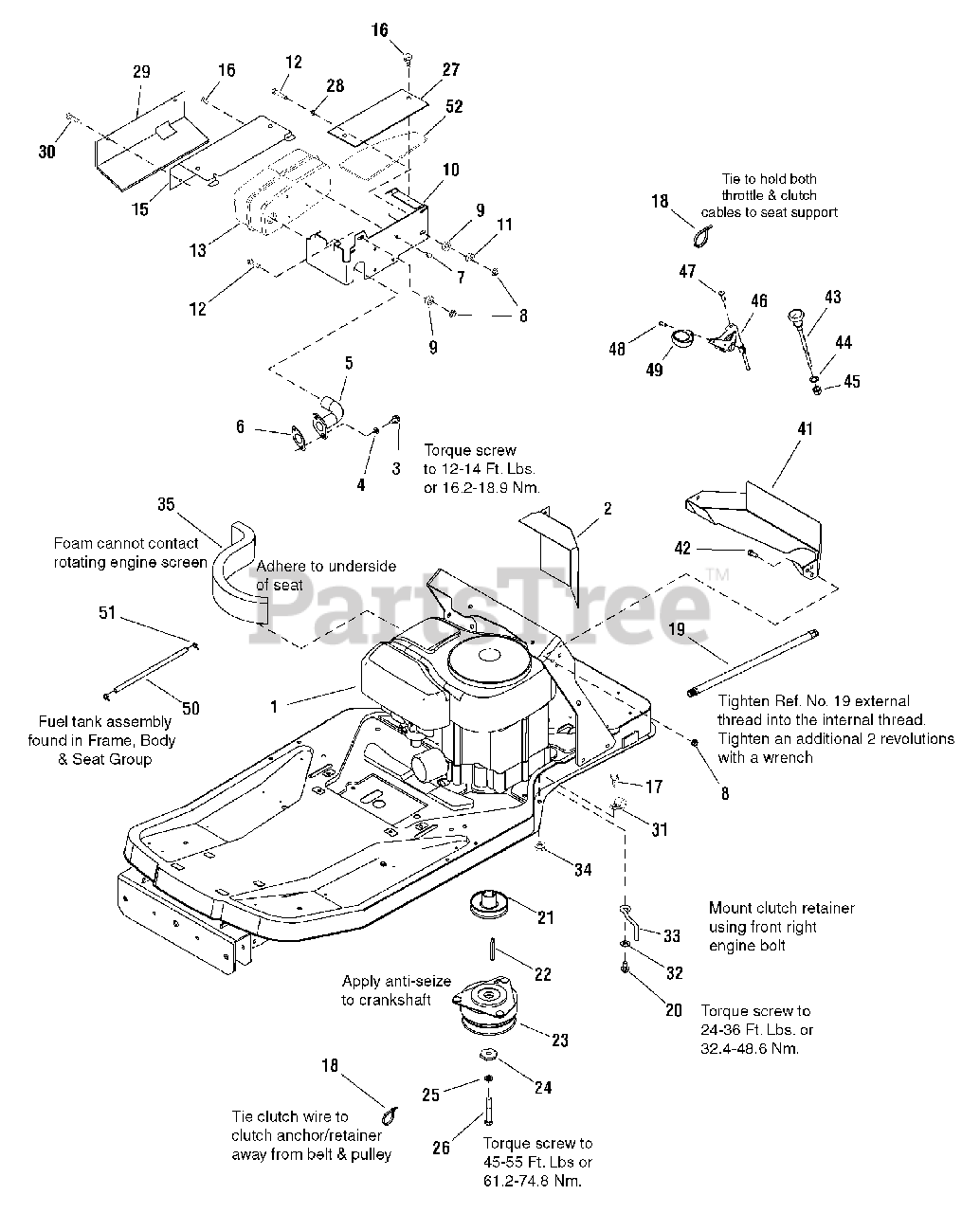

Engine Group - 18.5 H.P. Parts Diagram

  • Title

1

Simplicity 31Q777-0117-B1

* ENGINE, 18.5 HP, Intek

Note: (Engine Model: 31Q777-0117-B1)

$

$

Not available

1

Simplicity 31Q777-0118-G1

* ENGINE, 18.5 HP, Briggs & Stratton, Els-Calif.

Note: (Engine Model 31Q777-0118-G1)

$

$

Not available

2

Simplicity 1734150ASM

HEAT SHIELD, Inner

$32.99

$

Usually ships in 2-12 days

0

3

Simplicity 1936228SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, GR8

$4.49

$

In Stock, only 1 left!

0

4

Simplicity 1917356SM

LOCKWASHER, Spring 5/16" Black
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1732259SM

WELDMENT, Exhaust Pipe

$34.99

$

Usually ships in 2-12 days

0

6

Simplicity 1731214SM

GASKET, Exhaust B&S

$4.99

$

Usually ships in 2-12 days

0

7

Simplicity 1960295SM

SCREW, Hex Whiz Lock, Flange, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

8

Simplicity 1927557SM

NUT, Hex Flange Lock, Large, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

9

Simplicity 1667812SM

SPACER (.390 x .900 x .70) YZ

$5.99

$

In Stock, Qty 16

0

10

Simplicity 1732255SM

BRACKET, Muffler/Heat Shield

$

$

Not available

11

Simplicity 1667811SM

SPACER, .390 I.D. x .90 O.D. x .34 Long, Powdered Metal

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 7091908YP

CAPSCREW, Hex Head, 5/16-18 x 1-3/4, G5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

13

Simplicity 1732273SM

MUFFLER ASSEMBLY, Single

$93.99

$

In Stock, Qty 5

0

15

Simplicity 1727996SM

HEAT SHIELD, Outer Single
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

16

Simplicity 1960720SM

CAPSCREW, Hex Washer Head, Self Tap, #10 x 1/2

$4.99

$

Usually ships in 2-12 days

0

17

Simplicity 1930591SM

CAPSCREW, Hex Flange Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

18

Simplicity 2832747SM

TIE, Self Locking 3-5/8" Long

$3.99

$

Usually ships in 2-12 days

0

19

Simplicity 1726498SM

HOSE, Oil Drain, 16-1/2" Long

$26.99

$

Usually ships in 2-12 days

0

20

Simplicity 2828635SM

CAPSCREW, Hex Washer Head, Taptite, 3/8-16 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

21

Simplicity 1727816SM

PULLEY ASSEMBLY, Engine

$

$

Not available

22

Simplicity 2154096SM

KEY, .250 Square x .91 Long Parallel

$6.99

$

In Stock, only 1 left!

0

23

Simplicity 7029232SM

ELECTRIC CLUTCH, Ogura MA-GT-SN11S
(Superseded to 5023100SM)

$535.99

$

Usually ships in 2-12 days

0

24

Simplicity 1708264SM

WASHER, Hex, .453 I.D. x 1-1/2"

$8.99

$

In Stock, Qty 5

0

25

Simplicity 1918199SM

LOCKWASHER, Spring, .438
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

26

Simplicity 1960648SM

CAPSCREW, Hex Head Cap, 7/16-20 x 2-3/4, GR5, Black

$6.49

$

Usually ships in 2-12 days

0

27

Simplicity 1732885ASM

HEAT SHIELD

$15.99

$

Usually ships in 2-12 days

0

28

Simplicity 1919326SM

WASHER, 5/16" (.34 I.D. x 3/4" O.D.)

$4.49

$

In Stock, Qty 6

0

29

Simplicity 1733063SM

HEAT SHIELD

$48.99

$

Usually ships in 2-12 days

0

30

Simplicity 1675044SM

RIVET, Pop

$3.99

$

In Stock, only 1 left!

0

31

Simplicity 7900020SM

CLIP, Harness, 5/8"

$4.49

$

Usually ships in 2-12 days

0

32

Simplicity 1924940SM

WASHER, 3/8", (.41 I.D. x .87 O.D. x .08 Thick)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

33

Simplicity 1734049SM

RETAINER, Clutch

$12.99

$

In Stock, only 2 left!

0

34

Simplicity 1931277SM

NUT, 5/16-18 Hex Whiz Lock Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

35

Simplicity 1734189SM

SEAL, Foam Air Duct, 1 x 2-1/2", 12" Long

$21.99

$

Usually ships in 2-12 days

0

41

Simplicity 1734180ASM

AIR DUCT, Inlet

$69.99

$

Usually ships in 2-12 days

0

42

Simplicity 1921332SM

SCREW, 5/16-18 x 3/4" Hex Head Cap, Black
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

43

Simplicity 7100416SM

CABLE, Choke, 54"

$42.99

$

Usually ships in 2-12 days

0

44

Simplicity 7090390SM

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

In Stock, only 1 left!

0

45

Simplicity 7091630SM

NUT, 3/8-24 Hex
(Superseded to 703895)

$4.49

$

In Stock, only 1 left!

0

46

Simplicity 7075449SM

CONTROL, Throttle B&S Intek 16 HP Single

$37.99

$

Usually ships in 2-12 days

0

47

Simplicity 7090999SM

SCREW, Pan Head, Taptite Torx, 1/4-20 x 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

48

Simplicity 7091195SM

SCREW, Pan Head Taptite Combo, #10-16 x 3/4

$4.49

$

In Stock, only 1 left!

0

49

Simplicity 7100529SM

KNOB, Throttle, Red
(Superseded to 1725337SM)

$12.99

$

In Stock, only 1 left!

0

50

Simplicity 1734995SM

HOSE, Fuel, 1/4" I.D. x 19-1/2" Low Perm

$11.99

$

Usually ships in 2-12 days

0

51

Simplicity 7029900SM

CLAMP, Fuel Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

52

Simplicity 1734062SM

INSULATION, Foam

$24.99

$

Usually ships in 2-12 days

0
