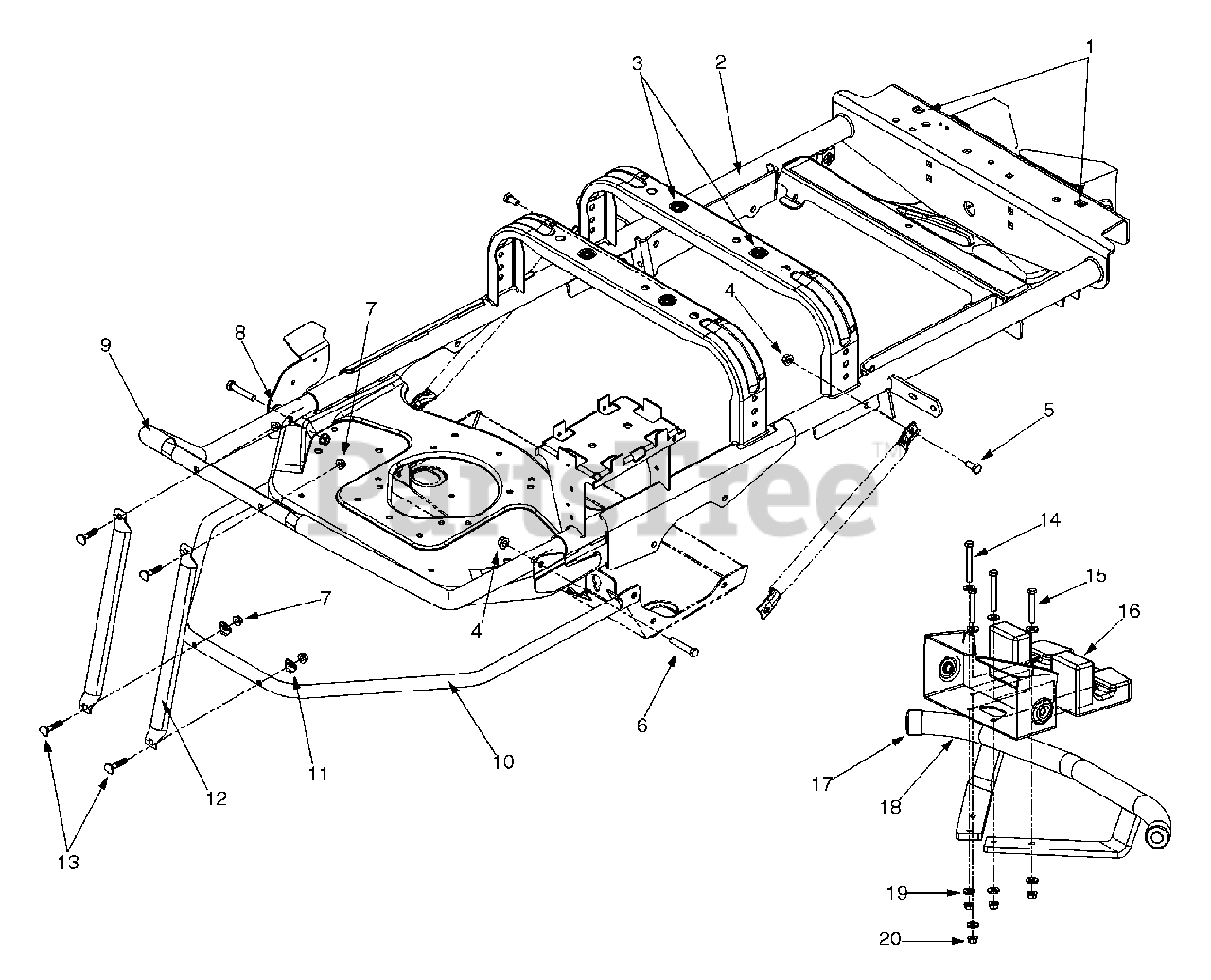

ZT-1850 - White Outdoor 44" Zero-Turn Mower Frame Assembly And Attachments Parts Diagram

44" Zero-Turn Mower

Frame Assembly And Attachments Parts Diagram

  • Title
1

MTD 712-0251

Retainer Nut 3/8-16

$

$

Not available

2

MTD 603-0720B-0637

Frame Assembly

$

$

Not available

3

MTD 712-0455

Retainer Nut 3/8-16

$

$

Not available

4

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

5

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

6

MTD 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

MTD 736-0258

Flat Washer .385 x 1.0 x .135

$4.49

$

Usually ships in 3-6 days

0

9

MTD 749-3062

Upper Bumper

Note: NLA

Variations

MTD 749-3062-0498

No Longer Available BMPR:TUBE: - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-3062-0637

No Longer Available BMPR:TUBE: - POWDER BLACK (0637)

$

$

Not available

MTD 749-3062-0648

No Longer Available BMPR:TUBE: - TECH GRAY (0648)

$

$

Not available

$

$

10

MTD 749-3061

Lower Bumper Tube

Note: NLA

Variations

MTD 749-3061-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 749-3061-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 749-3061-0648

No Longer Available BMPR TUBE - TECH GRAY (0648)

$

$

Not available

$

$

11

MTD 936-0451

Washer .320 ID x .93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

12

MTD 703-3504

Bumper Bracket

Note: NLA

Variations

MTD 703-3504-0637

No Longer Available BRACKET-BU - POWDER BLACK (0637)

$

$

Not available

$

$

13

MTD 710-1250

Carriage Bolt 5/16 x 1.5

$4.99

$

In Stock, Qty 5

0

14

MTD 710-0521

Hex Cap Screw 3/8-16 x 3.0

$5.49

$

In Stock, Qty 10

0

15

MTD 710-0859

Hex Cap Screw 3/8 - 16 x 2.5

$6.99

$

In Stock, Qty 16

0

16

MTD 719-3130

Counter Weight

Note: NLA

Variations

MTD 719-3130-0637

No Longer Available WEIGHT-FRA - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 726-0298

End Cap

Note: NLA

$

$

Not available

18

MTD 603-0620A-0637

Bumper Ass'y

$

$

Not available

19

MTD 936-3004

Flat Washer .406 ID x .875 OD
(Superseded to 736-3004)

$

$

Not available

20

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0
