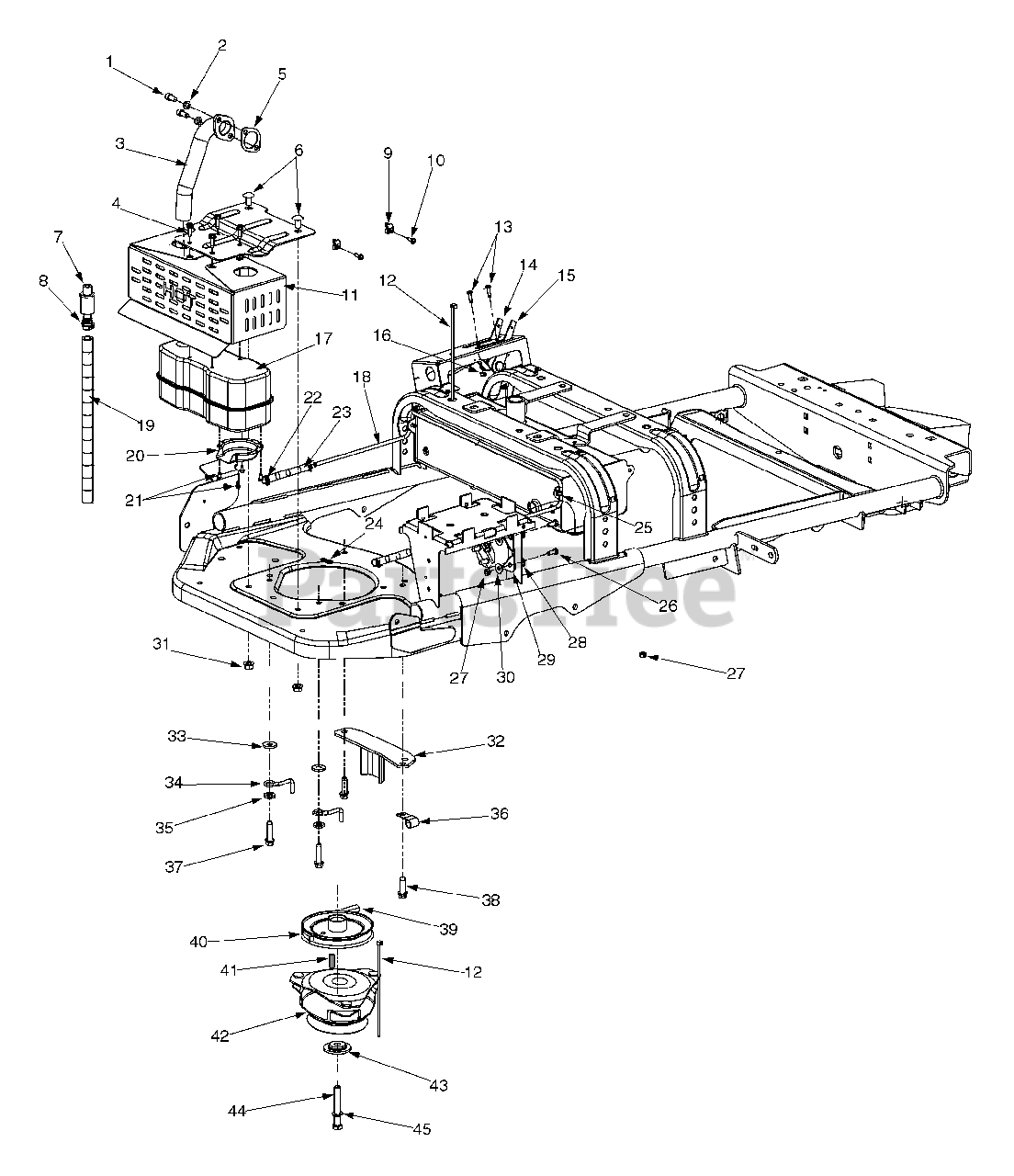

ZT-1850 - White Outdoor 44" Zero-Turn Mower Choke And Throttle Cable, Muffler Assembly, P.T.O. Clutch, Engine Acc Parts Diagram

44" Zero-Turn Mower

Choke And Throttle Cable, Muffler Assembly, P.T.O. Clutch, Engine Acc Parts Diagram

  • Title

1

MTD 710-1314A

Cap Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

2

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

3

MTD 751-0619B

Exhaust Pipe

$76.99

$

In Stock, only 2 left!

0

4

MTD 710-0642

Hex Washer Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

6

MTD 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 951-10517A

Oil Drain

$24.99

$

In Stock, only 1 left!

0

8

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 14

0

9

MTD 751B213146

Throttle Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

10

MTD 710-1237

Hex Washer Screw #10-32 x .625

$4.49

$

Usually ships in 3-6 days

0

11

MTD 703-3004-0637

Muffler Bracket

$

$

Not available

12

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-3009

Screw #10-24 x .75

$7.49

$

Usually ships in 3-6 days

0

14

MTD 746-3074

Throttle Cable Control 32"

Note: NLA

$

$

Not available

15

MTD 746-3073

Choke Cable Control 32.25"

Note: NLA

$

$

Not available

16

MTD 712-0161

Hex Lock Nut #10 - 24

$4.49

$

In Stock, Qty 20+

0

17

MTD 751-0617C

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

18

MTD 749-3048

Fuel Line

Note: NLA

$

$

Not available

19

MTD 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 7

0

20

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, only 3 left!

0

21

MTD 710-0148

Hex Washer Screw #8-32 x .375

$4.49

$

In Stock, Qty 16

0

22

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

23

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

24

MTD 736-0607

Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

25

MTD 725-1711

Retainer Clip

$

$

Not available

26

MTD 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

27

MTD 912-0291

Hex Lock Nut 1/4-20
(Superseded to 712-0291)

$

$

Not available

28

MTD 736-3006

Lock Washer 1/4 ID x 3/4 OD

$6.49

$

Usually ships in 3-6 days

0

29

MTD 925-3001

Solenoid

$58.99

$

Usually ships in 3-6 days

0

30

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

31

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

32

MTD 603-0317

Clutch Retainer Ass'y

Note: NLA

Variations

MTD 603-0317-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 936-0256

Flat Washer .365 ID x 1.0 OD

$7.49

$

Usually ships in 3-6 days

0

34

MTD 747-3362

Rear Belt Retainer Rod

$

$

Not available

35

MTD 736-3010

Flat Washer .407 ID x .812 OD

$4.99

$

In Stock, Qty 20+

0

36

MTD 726-3008

Heat Shield Cable Clip

$4.99

$

Usually ships in 3-6 days

0

37

MTD 710-1007

Hex Washer Screw 3/8-16 x 1.5

$6.49

$

Usually ships in 3-6 days

0

38

MTD 710-0502A

Hex Washer Screw 3/8-16 x 1.25

$6.99

$

In Stock, only 2 left!

0

39

MTD 954-3076

V-Belt

$71.99

$

Usually ships in 3-6 days

0

40

MTD 756-3060

Pulley
(Superseded to 756-3060A)

$97.99

$

Usually ships in 3-6 days

0

41

MTD 714-0128

Key

$4.99

$

In Stock, Qty 6

0

42

MTD 717-3467

Electric Clutch

$830.99

$

In Stock, only 1 left!

0

43

MTD 750-3106

Spacer Clutch

$35.99

$

Usually ships in 3-6 days

0

44

MTD 710-0510

Hex Cap Screw 7/16-20 x 3.0

$11.99

$

In Stock, only 1 left!

0

45

MTD 936-0171

Lock Washer 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0
