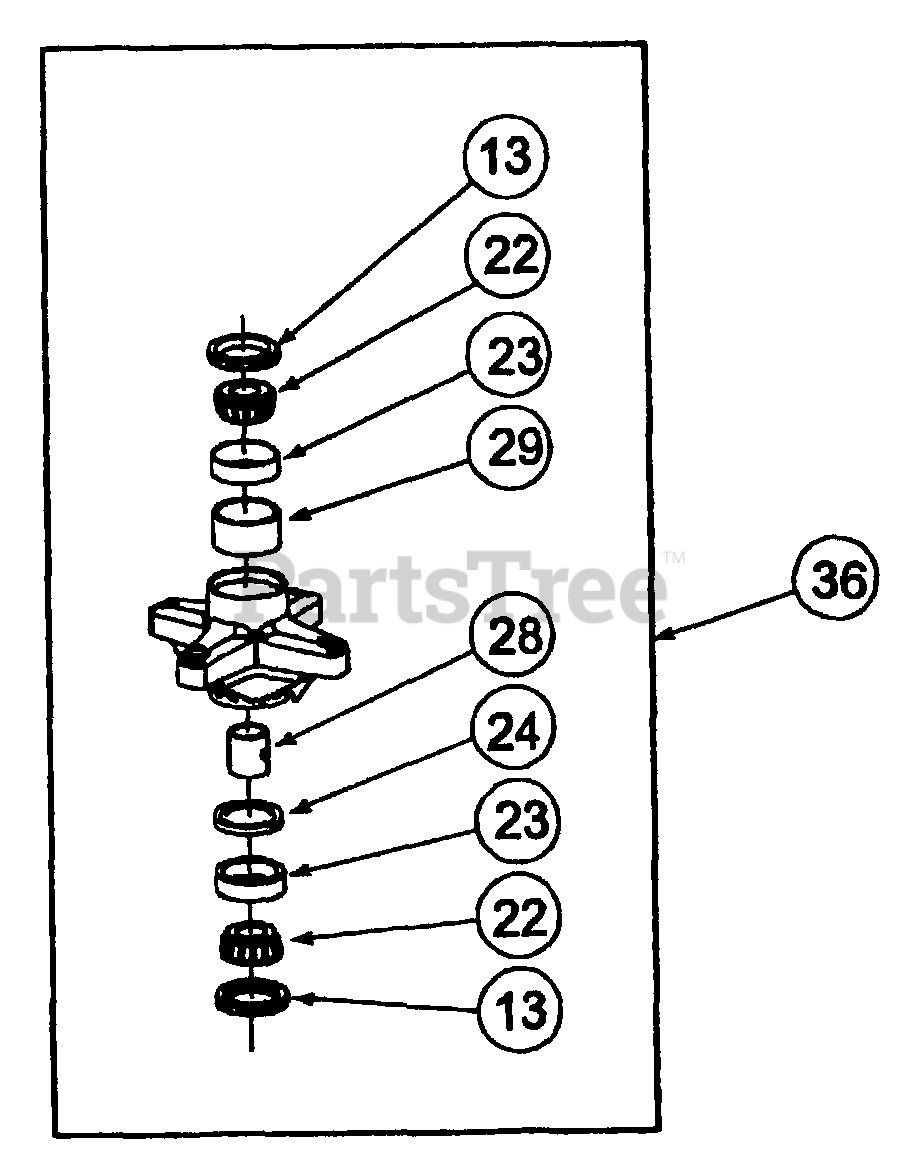

ZT-1850 - White Outdoor 44" Zero-Turn Mower 44-Inch Deck Spindle Assembly Parts Diagram

44" Zero-Turn Mower

44-Inch Deck Spindle Assembly Parts Diagram

  • Title
13

MTD 921-3018A

Seal, Oil, 1.25 x 1.874 x .25

$8.49

$

In Stock, Qty 20+

0

22

MTD 941-04298

Cone, Bearing

$16.99

$

In Stock, Qty 18

0

23

MTD 741-3029

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

24

MTD 941-3031

Spacer, Bearing

$

$

Not available

28

MTD 750-3190A

Spacer, Bearing, .780 x .963 x .7777

$13.99

$

In Stock, only 2 left!

0

29

MTD 750-3191

Spacer, Bearing, 1.615 x 1.86 x .8427

$40.99

$

Usually ships in 3-6 days

0

36

MTD 918-3129C

Spindle Assy
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0
