ZT-1850 - White Outdoor 44" Zero-Turn Mower 44-Inch Deck Assembly Parts Diagram

44" Zero-Turn Mower

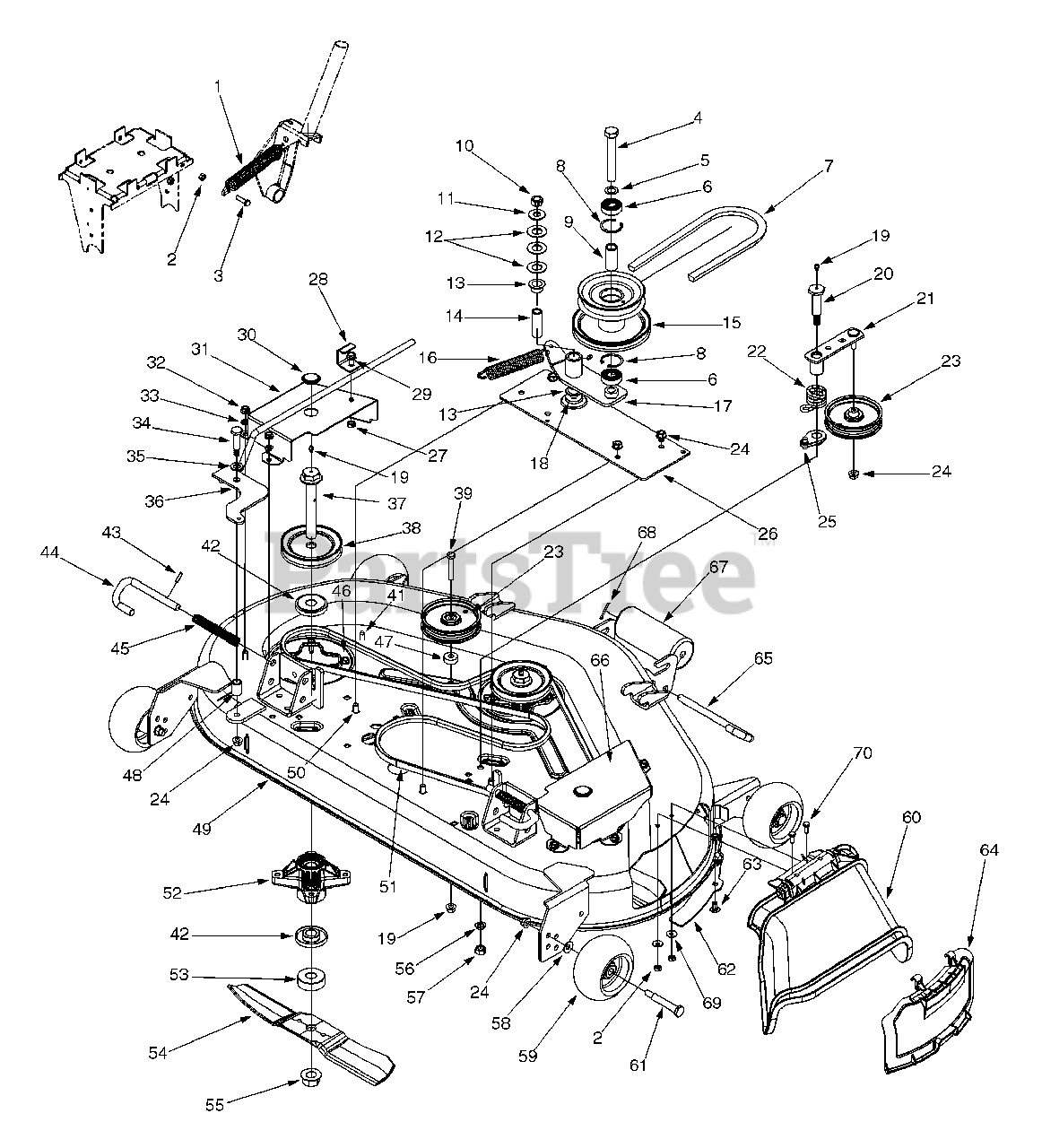

44-Inch Deck Assembly Parts Diagram

  • Title

1

MTD 932-0556

Extension Spring .94 OD x 7.57

$21.99

$

Usually ships in 3-6 days

0

2

MTD 712-3006

Hex Nut 1/4-20

$4.99

$

In Stock, Qty 19

0

3

MTD 710-0597

Hex Cap Screw 1/4-20 x 1.0

$3.99

$

In Stock, Qty 14

0

4

MTD 710-3151

Hex Cap Screw 5/8-18 x 4.25

$20.99

$

In Stock, Qty 12

0

5

MTD 736-0290

Flat Washer 5/8 ID x 1.0 OD

$6.99

$

In Stock, Qty 20+

0

6

MTD 941-0524A

Bearing .625 ID x 1.574 OD

$23.99

$

In Stock, Qty 20+

0

7

MTD 954-3091

Belt

$94.99

$

Usually ships in 3-6 days

0

8

MTD 916-3020

Snap Ring

$4.99

$

In Stock, Qty 20+

0

9

MTD 750-3164

Spacer .635 ID x 2.0

$16.99

$

Usually ships in 3-6 days

0

10

MTD 912-0239

Hex Lock Nut 1/2-20
(Superseded to 712-0239)

$

$

Not available

11

MTD 936-0179

Flat Washer 1/2 x 1.25
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

12

MTD 736-0188

Flat Washer .76 ID x 1.49 OD

$4.49

$

In Stock, Qty 20+

0

13

MTD 741-0338

Flange Bearing 3/4 ID x .52

$9.49

$

Usually ships in 3-6 days

0

14

MTD 750-0656

Spacer .50 OD x .75 ID

$11.99

$

In Stock, only 1 left!

0

15

MTD 756-3108

Pulley

$142.99

$

Usually ships in 3-6 days

0

16

MTD 932-0850

Extension Spring 1.0 OD x 6.140

$24.99

$

In Stock, Qty 5

0

17

MTD 603-0743-0637

Idler Assembly

$

$

Not available

18

MTD 736-0100

Flat Washer .531 ID x 1.25 OD

$6.99

$

In Stock, Qty 7

0

19

MTD 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

20

MTD 738-3172

Shoulder Screw

$20.99

$

In Stock, only 1 left!

0

21

MTD 603-0741

Idler Arm Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-0741-0716

Idler Arm Assembly - CUB YELLOW-99 (0716)

$107.99

$

Usually ships in 3-6 days

0

MTD 603-0741-0637

ARM ASSY-IDLER - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

$99.99

$

Usually ships in 3-6 days

0

22

MTD 732-3067

Torsion Spring

$23.99

$

In Stock, only 1 left!

0

23

MTD 756-3005

Flat Pulley

$45.99

$

In Stock, Qty 20+

0

24

MTD 912-0431

Flange Lock Nut 3/8-16

$4.99

$

In Stock, Qty 20+

0

25

MTD 748-3100

Retainer Spring
(Superseded to 748-3100A)

$28.99

$

In Stock, only 1 left!

0

26

MTD 603-0763-0637

Deck Mounting Plate Assembly

$

$

Not available

27

MTD 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

28

MTD 703-2559

Stop Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-2559-0716

Stop Bracket - CUB YELLOW-99 (0716)

$26.99

$

Usually ships in 3-6 days

0

MTD 703-2559-0637

Stop Bracket - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

MTD 703-2559-0648

Stop Bracket - TECH GRAY (0648)

$26.99

$

Usually ships in 3-6 days

0

MTD 703-2559-4021

BRACKET-STOP - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

29

MTD 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

30

MTD 726-3045

Button Plug
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 6

0

31

MTD 703-3742

Belt Cover LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-3742-0716

Belt Cover, LH Yellow - CUB YELLOW-99 (0716)

$53.99

$

Usually ships in 3-6 days

0

MTD 703-3742-0637

COVER-BELT LH - POWDER BLACK (0637)

$

$

Not available

MTD 703-3742-0650

COVER-BELT LH - RED METALLIC (0650)

$

$

Not available

MTD 703-3742-4021

COVER-BELT LH - CUB YELLOW 2 (4021)

$

$

Not available

$53.99

$

Usually ships in 3-6 days

0

32

MTD 912-3010

Hex Nut 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

33

MTD 936-0119

Lock Washer 5/16

$4.99

$

In Stock, Qty 20+

0

34

MTD 738-0213

Shoulder Screw .498 x 1.445

$7.99

$

In Stock, only 2 left!

0

35

MTD 936-0192

Flat Washer .531 x .93

$4.49

$

In Stock, Qty 18

0

36

MTD 603-0766

Handle Assembly

Note: NLA

Variations

MTD 603-0766-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

37

MTD 710-1693

Spindle Bolt 3/4-16 x 5.215

$38.99

$

In Stock, only 2 left!

0

38

MTD 756-3089

Pulley

$36.99

$

In Stock, only 3 left!

0

39

MTD 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

41

MTD 710-1611B

Screw 5/16-18 x .750

$6.99

$

In Stock, only 2 left!

0

42

MTD 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 14

0

43

MTD 715-3003

Pin

$6.99

$

In Stock, Qty 7

0

44

MTD 747-3013

Support Pin

$22.99

$

In Stock, only 2 left!

0

45

MTD 732-0802

Compression Spring .63 OD x 6.3

$4.49

$

In Stock, only 1 left!

0

46

MTD 710-1260A

Hex Washer Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

47

MTD 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0

48

MTD 750-0150

Spacer .550 ID x .750 OD

Note: NLA

$

$

Not available

49

MTD 603-0734

Deck Assembly

Note: NLA

Variations

MTD 603-0734-0637

"No Longer Available SHELL-44""" - POWDER BLACK (0637)

$

$

Not available

$

$

50

MTD 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

51

MTD 954-3039

Belt

$59.99

$

In Stock, only 2 left!

0

52

MTD 918-3129C

Spindle Assembly
(Superseded to 918-04426)

$112.99

$

In Stock, Qty 20+

0

53

MTD 948-3020

Blade Spacer

$17.99

$

In Stock, only 2 left!

0

54

MTD 759-3939

Blade
(Superseded to 742P3036)

$

$

Not available

55

MTD 712-3078

Hex Flange Nut 3/4-16

$9.99

$

In Stock, Qty 20+

0

56

MTD 936-0171

Lock Washer 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

57

MTD 912-3019

Hex Nut 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

58

MTD 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

59

MTD 703-1890A

Deck Wheel

$39.99

$

In Stock, Qty 20+

0

60

MTD 631-0094A

Chute Assembly
(Superseded to 631-0094B)

$78.99

$

In Stock, only 1 left!

0

61

MTD 938-3056

Shoulder Screw 1/2 x 2.5

$9.49

$

In Stock, Qty 20+

0

62

MTD 703-3359

Skirt Baffle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-3359-0716

Skirt Baffle - CUB YELLOW-99 (0716)

$44.99

$

In Stock, only 2 left!

0

MTD 703-3359-0637

Skirt Baffle - POWDER BLACK (0637)

$44.99

$

In Stock, only 2 left!

0

$36.99

$

Usually ships in 3-6 days

0

63

MTD 710-0260A

Carriage Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

64

MTD 731-3316

Mulching Plug

$30.99

$

In Stock, Qty 12

0

65

MTD 911-3314

Roller Pin
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

66

MTD 703-3743

Belt Cover RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-3743-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$64.99

$

Usually ships in 3-6 days

0

MTD 703-3743-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

MTD 703-3743-4021

COVER-BELT RH - CUB YELLOW 2 (4021)

$

$

Not available

$64.99

$

Usually ships in 3-6 days

0

67

MTD 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

68

MTD 914-0115

Pin
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

69

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

70

MTD 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0
