ZT-1850 (53AA1A5L190) - White Outdoor 44" Zero-Turn Mower (2001) 44" Deck Spindle Assembly Parts Diagram

44" Zero-Turn Mower

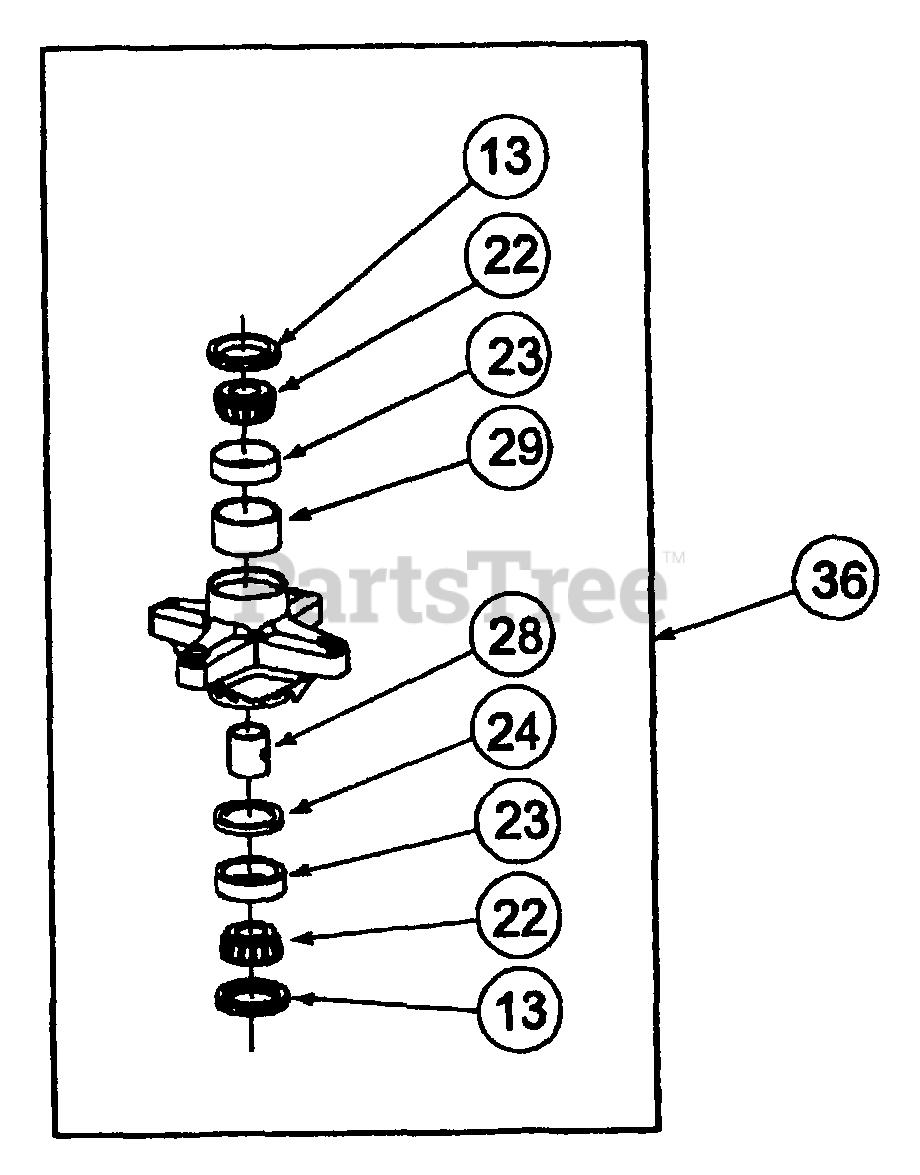

44" Deck Spindle Assembly Parts Diagram

  • Title
13

White Outdoor 721-3018

Seal, Oil, 1.25 x 1.874 x .25
(Superseded to 921-3018A)

$8.49

$

In Stock, Qty 20+

0

22

White Outdoor 741-3028

Cone, Bearing
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

23

White Outdoor 741-3029

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

24

White Outdoor 741-3031

Spacer, Bearing
(Superseded to 941-3031)

$

$

Not available

28

White Outdoor 750-3190

Spacer, Bearing, .780 x .963 x .7777
(Superseded to 750-3190A)

$13.99

$

In Stock, only 2 left!

0

29

White Outdoor 750-3191

Spacer, Bearing, 1.615 x 1.86 x .8427

$40.99

$

Usually ships in 3-6 days

0

36

White Outdoor 918-3129

Spindle Assy
(Superseded to 918-3129C)

$112.99

$

In Stock, Qty 20+

0
