ZT 18441 KHC (5900608) - Snapper 44" Zero-Turn Mower, 18hp Wheel & Tire Group Parts Diagram

44" Zero-Turn Mower, 18hp

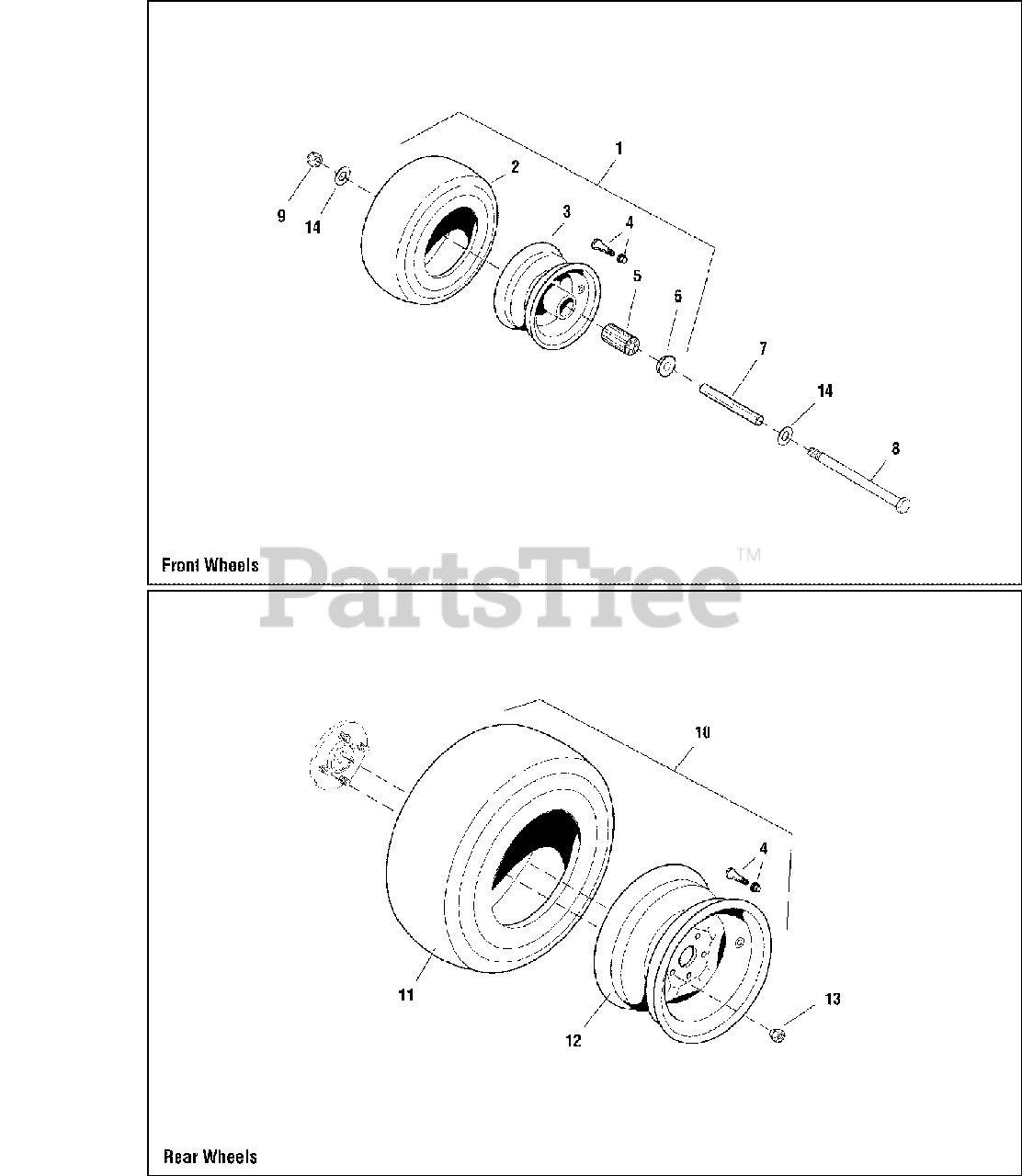

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper 5022433S

WHEEL & TIRE ASSEMBLY, 11 X 4.0 - 5, COMPLETE
(Superseded to 5101418YP)

Note: (Includes Ref No. 2 - 6)

$127.99

$

In Stock, Qty 11

0

2

Snapper 5022433X1

TIRE, FRONT, 11 X 4.0 - 5

$70.99

$

Usually ships in 2-12 days

0

3

Snapper 5022433S2

WHEEL ASSEMBLY, COMPLETE
(Superseded to 5101418X2YP)

Note: (Includes Ref No. 4 & 5)

$84.99

$

In Stock, only 1 left!

0

4

Snapper 2172353

VALVE STEM & CAP ASSEMBLY
(Superseded to 7012234SM)

$6.49

$

Usually ships in 2-12 days

0

5

Snapper 5021042

BEARING, ROLLER
(Superseded to 5021042SM)

Note: (2 Per Tire)

$14.99

$

In Stock, only 2 left!

0

6

Snapper 5021043

BEARING RETAINER

Note: (2 Per Tire)

$6.99

$

Usually ships in 2-12 days

0

7

Snapper 5045996

AXLE, FRONT CASTER
(Superseded to 5045996SM)

$15.99

$

In Stock, Qty 18

0

8

Snapper 5025017X52

BOLT, 1/2-13 X 6-1/2
(Superseded to 5025017X52SM)

$10.99

$

In Stock, only 2 left!

0

9

Snapper 5025056

NUT, HEX NYLON LOCK, 1/2-13
(Superseded to 5025056FS)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 5102329

TIRE ASSM, 20X8.00-10NHS, TM, 2.625 OFFS
(Superseded to 5102329YP)

Note: (Includes Ref No. 4, 11 & 12)(was 5101293)

$349.99

$

Usually ships in 2-12 days

0

11

Snapper 5101293X1

TIRE, REAR, 20 X 8.0 X 10, TURF MASTER
(Superseded to 5101293X1YP)

$243.99

$

Usually ships in 2-12 days

0

12

Snapper 5023095X2

WHEEL ASSEMBLY, FOR 20 X 8.0 X 10 TIRE
(Superseded to 5102329X2YP)

$259.99

$

Usually ships in 2-12 days

0

13

Snapper 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 12

0
