ZT 18441 KHC (5900608) - Snapper 44" Zero-Turn Mower, 18hp Fuel Tank Group Parts Diagram

44" Zero-Turn Mower, 18hp

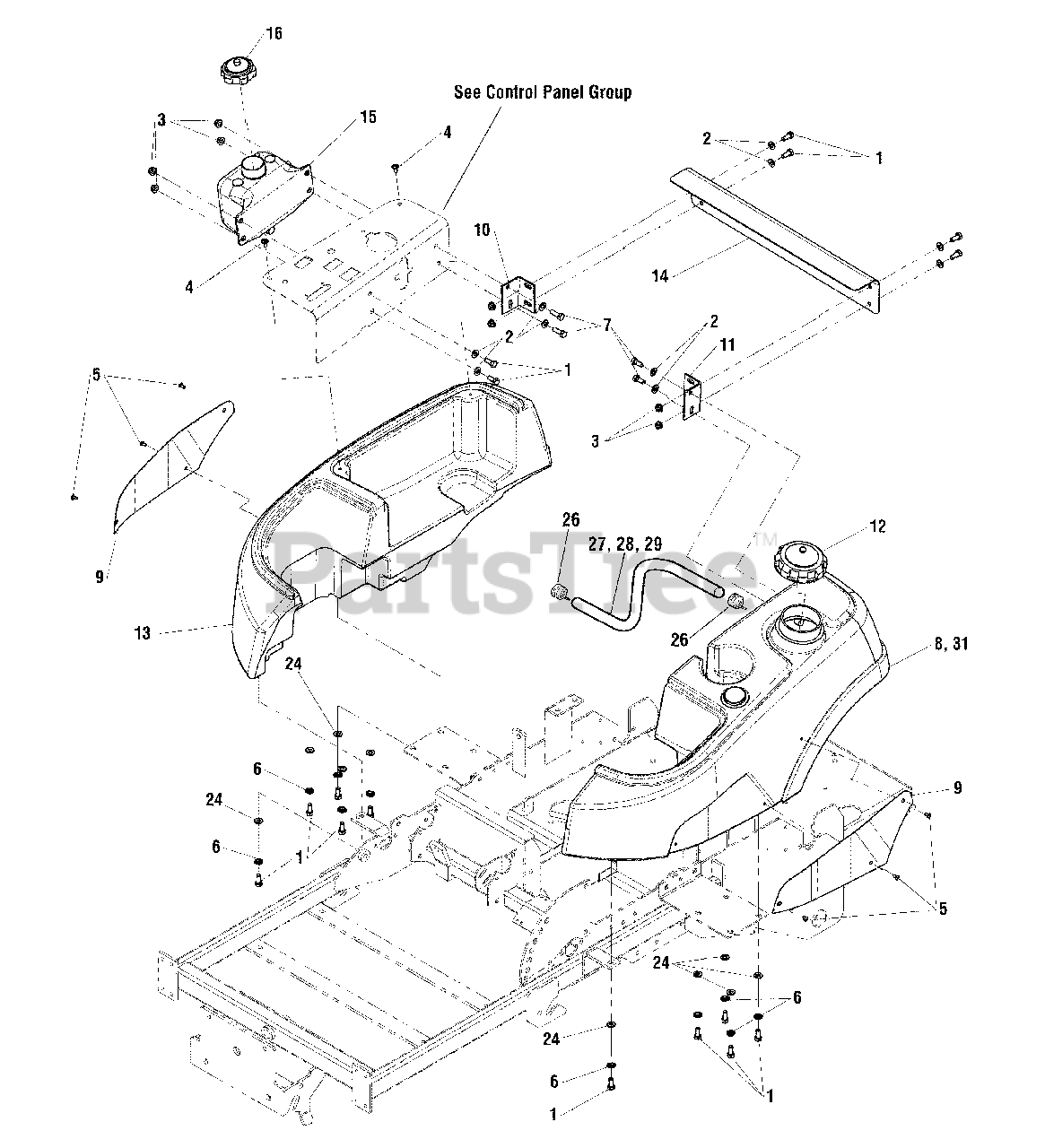

Fuel Tank Group Parts Diagram

  • Title

1

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

2

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper 5025299X4

SCREW, ALLEN HEAD, 1/4-20X1/2
(Superseded to 5106469)

$2.49

$

In Stock, Qty 18

0

5

Snapper 5025386

SCREW, Allen Head, #10-24 x 3/8"
(Superseded to 5025386SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 5025170

WASHER, 5/16" LOCK
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Snapper 5048751

FUEL TANK ASSEMBLY
(Superseded to 5102544YP)

Note: (Includes Ref. 17 - 23)

$500.99

$

Usually ships in 2-12 days

0

9

Snapper 5048909D

PLATE, FUEL TANK BADGE - RED
(Superseded to 5048909DYP)

$29.99

$

In Stock, only 2 left!

0

10

Snapper 5048763D

BRACKET, REAR SUPPORT - RH - RED
(Superseded to 5048763DYP)

$6.99

$

Usually ships in 2-12 days

0

11

Snapper 5400836D

BRACKET, REAR SUPPORT - LH - RED
(Superseded to 5400836DYP)

$8.99

$

Usually ships in 2-12 days

0

12

Snapper 5101651

FUEL CAP, 3.5", VENTED
(Superseded to 5101651SM)

Note: was 5101272

$30.99

$

In Stock, Qty 20+

0

13

Snapper 5048752

TANK, FUEL - RH
(Superseded to 5048752SM)

$279.99

$

Usually ships in 2-12 days

0

14

Snapper 5400919D

PLATE, SUPPORT, REAR TANK - RED
(Superseded to 5400919DSM)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 5023345

TANK, 2QT HYDRAULIC
(Superseded to 5023345SM)

$87.99

$

In Stock, only 1 left!

0

16

Snapper 5023191

CAP, HYDRAULIC RESERVOIR
(Superseded to 5023191SM)

$28.99

$

In Stock, only 1 left!

0

17

Snapper 5023061

ELBOW FITTING
(Superseded to 5023061SM)

Note: (Not Shown)

$10.99

$

In Stock, only 1 left!

0

18

Snapper 5600050

GROMMET
(Superseded to 1726400FS)

Note: (Not Shown)

$11.99

$

In Stock, only 4 left!

0

19

Snapper 5050925X20

HOSE, 20"
(Superseded to 5101217SM)

Note: (Not Shown)

$50.99

$

In Stock, Qty 20+

0

20

Snapper 5023069

HOSE CLAMP
(Superseded to 5023069SM)

Note: (Not Shown)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 5023067

SCREEN FITTING
(Superseded to 5023067SM)

Note: (Not Shown)

$13.99

$

In Stock, only 1 left!

0

22

Snapper 5023197

FUEL GAUGE
(Superseded to 5023197SM)

Note: (Not Shown)

$57.99

$

In Stock, only 4 left!

0

23

Snapper 5022917X1

GROMMET
(Superseded to 5022917X1SM)

Note: (Not Shown)

$6.99

$

In Stock, only 3 left!

0

24

Snapper 5025292

WASHER, GR. 9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 5300046

ASSM, FUEL HOSE
(Superseded to 5101217SM)

Note: Not Shown (Includes Ref. 17 - 21)

$50.99

$

In Stock, Qty 20+

0

26

Snapper 93807

CLAMP, HOSE, RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

27

Snapper 5050831X20

HOSE, 1/4" FUEL LINE, 20" LONG
(Superseded to 5050831X20YP)

Note: (KOHLER & KAWI MODELS ONLY)

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 5050831X28

HOSE, 1/4" FUEL, 28.00"
(Superseded to 5050831X28SM)

Note: (EUROPEAN MODELS ONLY)

$12.99

$

Usually ships in 2-12 days

0

29

Snapper 5050831X31

HOSE, 1/4 FUEL, 31.00
(Superseded to 5050831X31SM)

Note: (BRIGGS & STRATTON MODELS ONLY)

$13.99

$

Usually ships in 2-12 days

0

30

Snapper 5402459D

PLATE, ENGINE GUARD, CE - RED
(Superseded to 5402459DYP)

Note: (EUROPEAN MODELS ONLY) (NOT SHOWN)

$101.99

$

Usually ships in 2-12 days

0

31

Snapper 5102544

TANK, FUEL - LH
(Superseded to 5102544YP)

Note: (S/N: 2014648789 & ABOVE)

$500.99

$

Usually ships in 2-12 days

0

31

Snapper 5101181

TANK, FUEL - LH
(Superseded to 5102544YP)

Note: (S/N: 2014648788 & BELOW)

$500.99

$

Usually ships in 2-12 days

0

32

Snapper 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

Note: (EUROPEAN MODELS ONLY) (NOT SHOWN)

$3.49

$

In Stock, only 3 left!

0

33

Snapper 5022612

BUMPER, RUBBER 5/16-18
(Superseded to 5022612SM)

Note: (EUROPEAN MODELS ONLY) (NOT SHOWN)

$23.99

$

In Stock, only 2 left!

0

34

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

Note: (EUROPEAN MODELS ONLY) (NOT SHOWN)

$3.99

$

In Stock, only 2 left!

0
