ZT 18441 KHC (5900608) - Snapper 44" Zero-Turn Mower, 18hp Drive Group Parts Diagram

44" Zero-Turn Mower, 18hp

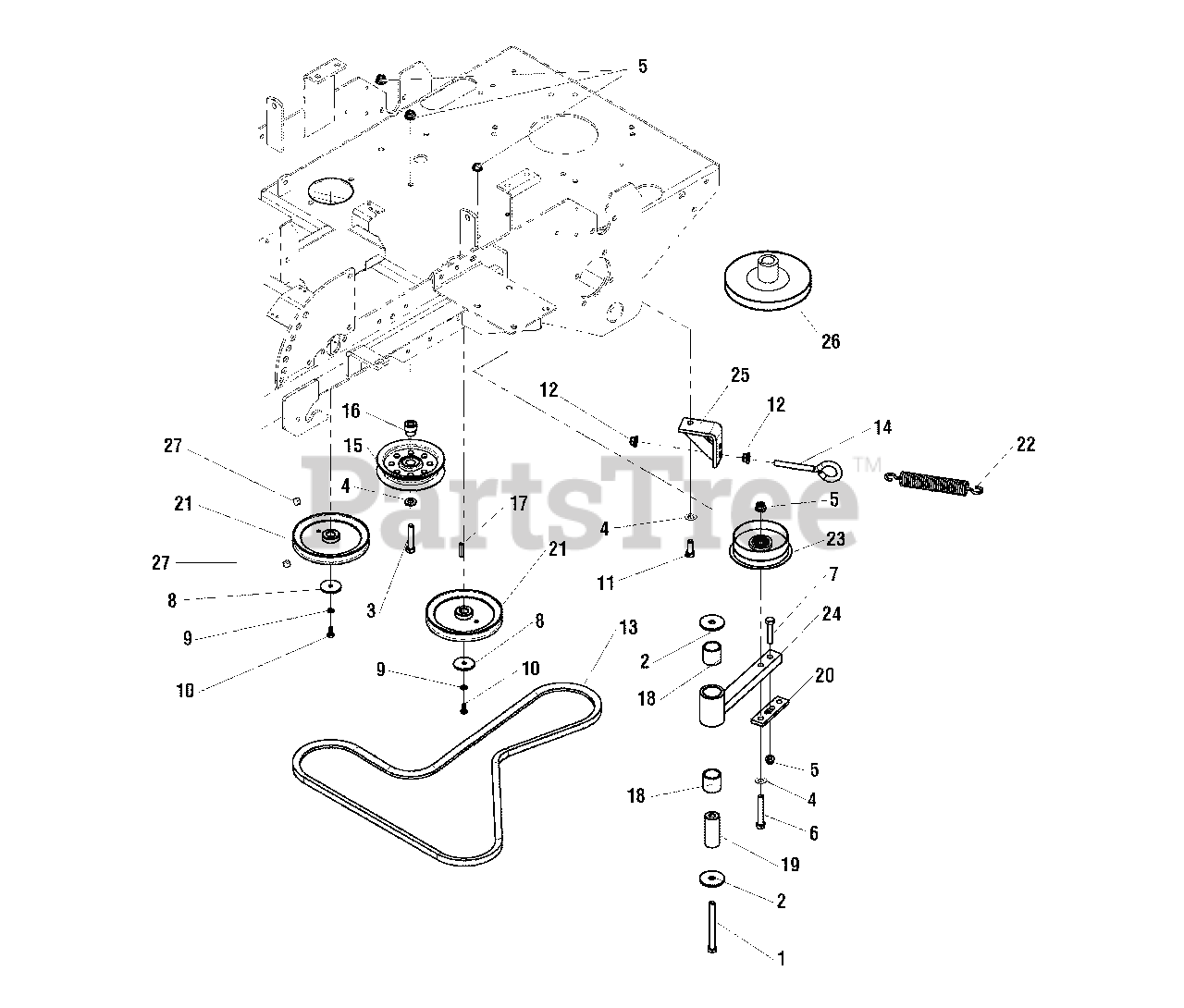

Drive Group Parts Diagram

  • Title

1

Snapper 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

2

Snapper 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 3 left!

0

3

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

4

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 5025013X20

BOLT, 3/8-16 X 2-1/2" GD5 CZ
(Superseded to 84007037)

$2.99

$

In Stock, only 3 left!

0

7

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

8

Snapper 5044577

WASHER, .265 X 1.50 X .109, YZ
(Superseded to 5044577SM)

$3.99

$

In Stock, only 1 left!

0

9

Snapper 5025169

WASHER, 1/4" LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 5023215

BOLT, M6-1.0 X 14MM
(Superseded to 5023215SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

12

Snapper 5025034

NUT, 3/8-16 HEX
(Superseded to 5025034SM)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper 5022931

BELT, DECK DRIVE
(Superseded to 5022931SM)

$48.99

$

In Stock, Qty 20+

0

14

Snapper 5025429

EYEBOLT, 3/8-16 X 4, 2.13THRD, .75EYE, C
(Superseded to 5025429SM)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 5021002

PULLEY, IDLER
(Superseded to 5021002SM)

$40.99

$

In Stock, only 3 left!

0

16

Snapper 5049184

SPACER, HYDRO IDLER PULLEY
(Superseded to 5049184SM)

$5.49

$

In Stock, Qty 6

0

17

Snapper 5023254

KEY, 5MM SQ W/ RADIUS
(Superseded to 5023254SM)

$4.49

$

In Stock, Qty 8

0

18

Snapper 5022157

BUSHING, BRASS, 1.25 X 1 X 1.25
(Superseded to 5022157SM)

$12.99

$

In Stock, only 2 left!

0

19

Snapper 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

Note: (was 5045135)

$27.99

$

In Stock, only 1 left!

0

20

Snapper 5048219D

PLATE, ANCHOR, SPRING
(Superseded to 5048219DYP)

$8.99

$

Usually ships in 2-12 days

0

21

Snapper 5023251

PULLEY, PUMP DRIVE
(Superseded to 5023251SM)

$101.99

$

In Stock, only 1 left!

0

22

Snapper 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

23

Snapper 5022621

PULLEY, IDLER, SINGLE FLANGE
(Superseded to 5103817YP)

$64.99

$

In Stock, only 1 left!

0

24

Snapper 5046430D

WELD, ARM, PUMP DRIVE IDLER
(Superseded to 5046430A)

$75.99

$

Usually ships in 2-12 days

0

25

Snapper 5045200D

WELD, ANCHOR EYEBOLT
(Superseded to 5045200DYP)

$22.99

$

Usually ships in 2-12 days

0

26

Snapper 5023252

PULLEY, Crankshaft
(Superseded to 5023252SM)

$97.99

$

Usually ships in 2-12 days

0

27

Snapper 5025437

SET SCREW, 5/16-24 X 3/8, KNURL, W/PATCH
(Superseded to 5025437SM)

$6.99

$

In Stock, only 1 left!

0
