ZT 18441 KHC (5900608) - Snapper 44" Zero-Turn Mower, 18hp Control Group Upper Parts Diagram

44" Zero-Turn Mower, 18hp

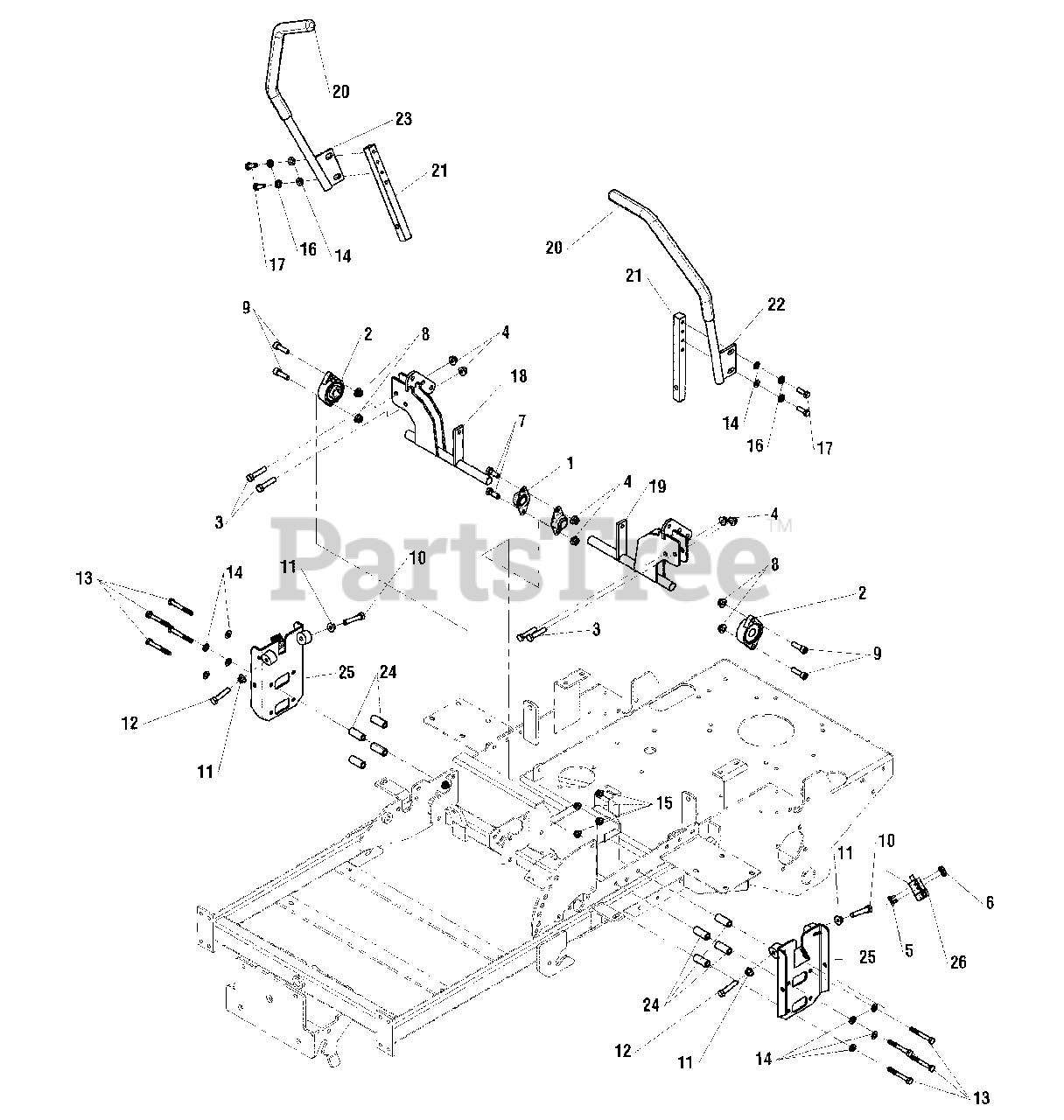

Control Group Upper Parts Diagram

  • Title

1

Snapper 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 5

0

2

Snapper 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

3

Snapper 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, only 2 left!

0

4

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 5025179X4

10-24 X .5 SCREW
(Superseded to 5025179X4SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 5025029

NUT, HEX, #10-24
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

7

Snapper 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

8

Snapper 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 20+

0

9

Snapper 5025327

3/8-16 x 1-1/4 SOCKET HD CAPSCR
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper 5025055X16

BOLT, 5/16-18 X 2" GD 5 TFL
(Superseded to 5025055X16SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 5025139

NUT, 5/16-18 HEX LG SERR FLG.
(Superseded to 5025139SM)

$3.49

$

In Stock, Qty 12

0

12

Snapper 5025055X14

BOLT, 5/16-18 X 1.75" GD 5 TFL
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5
(Superseded to 5025011X20FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

15

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper 5025170

WASHER, 5/16" LOCK
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

18

Snapper 5401020D

WELD, CONTROL SHAFT- RH
(Superseded to 5401020DYP)

$72.99

$

Usually ships in 2-12 days

0

19

Snapper 5401017D

WELD, CONTROL SHAFT- LH
(Superseded to 5401017DYP)

$58.99

$

Usually ships in 2-12 days

0

20

Snapper 5022068

GRIP, FOAM, 3/4" ID, 16" LONG
(Superseded to 5022068SM)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 5047004

MOUNT, CONTROL ARM
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

22

Snapper 5401096D

WELD, HANDLE MOTION CONTROL-LH
(Superseded to 5401096DSM)

$50.99

$

Usually ships in 2-12 days

0

23

Snapper 5401097D

WELD, HANDLE MOTION CONTROL-RH
(Superseded to 5401097DSM)

$49.99

$

Usually ships in 2-12 days

0

24

Snapper 5048264

SPACER, .63 X .39 X 1.50
(Superseded to 5048264SM)

$5.99

$

Usually ships in 2-12 days

0

25

Snapper 5048169D

WELD, NEUTRAL PLATE
(Superseded to 5048169DYP)

$74.99

$

Usually ships in 2-12 days

0

26

Snapper 5022095

SWITCH, PLUNGER, N.O. / N.C.
(Superseded to 1717050)

$17.99

$

In Stock, Qty 20+

0
